Specifications
Brand Name :
zheheng
Model Number :
1inch--2.5inch
Certification :
ISO9001 PED
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
50TONS/30DAYS
Delivery Time :
30 DAYS
Packaging Details :
In bundles with waterproof material,or wooden crate packing
Material :
ss 304
Standard :
ASTM, AISI, DIN, EN, GB, JIS
shape :
round shape
technique :
welding
application :
chemical plant
length :
6000mm
Description

Hardened Stainless Steel Seamless Pipes Tolerances Thickness Chart / Weight Calculator ASTM, AISI, DIN, EN, GB, JIS

Zheheng steel, specializing in the production of stainless steel seamless pipe, stainless steel tube, stainless steel U type pipe, stainless steel bellows tube, stainless steel coil, stainless steel coil for 15 years, from the storage of raw materials, production and processing, finished product outbound cengcengbaguan, to ensure that the environmental protection, safe and reliable.


Special purpose steel pipe and cold rolled steel tube outside diameter allowable deviation can be used absolute deviation.Wall thickness tolerance is divided into two types: standardization and non-standardization.Standard wall thickness tolerance should be preferred.


Welding steel pipe wall thickness requirement, welding steel pipe wall thickness allowable deviation,
national standard welded steel pipe wall thickness allowable deviation table.

Products description :

Item :Stainless Steel Seamless Pipe
Brand :zheheng steel
Standard : GB, ASTM, AISI, ASME, EN. BS and others
SS Grade : TP201, 202, 304, 304L, 308, 309, 309S, 310, 310S, 316, 316L, 317, 317L, 321, 904L
Tickness : 0.5 - 30mm
Outer Diameter : 6 - 610mm
Length : 1 - 6meter or customized
Tolerance : a)thickness: ±10%
b)length: ±8mm
b) out diameter: According to ASTM standard
Surface : NO.1, 2B, NO.3, NO.4, BA, HL, 8K, polishing etc.
Shape : round, oval, square, rectangular, sepcial secti on
Packing plastic bag per each tube + strapping tape per bundle
Delivery term : FCA, FOB, CNF, CIF etc
Payment term : 30% T/T for deposit, 70% for balance by T/T (LC)
Delivery time : 10 days after the confirmation of the deposit


Standard tolorance comparison table of stainless steel seamless steel tube.

standard Outside diameter(D) wall thickness(S) length(L)
group tolorance group tolorance L+(0-6)
ASTM A312/A312M
ASME SA213/SA213M		 10.3-48.3 +0.40/-0.80 10.3-73 +20.0%S/-12.5%S
＞48.3-114.3 +0.80/-0.80 88.9-457 S/D≤5% +22.5%S/-12.5%S
＞114.3-219.1 +1.60/-0.80 S/D＞5% +15.0%S/-12.5%S
＞219.1-457.2 +2.40/-0.80
＞457.2-660.4 +3.20/-0.80 ≥508 S/D≤5% +22.5%S/-12.5%S
＞660.4-864 +4.00/-0.80 S/D＞5% +15.0%S/-12.5%S
＞864 +4.80/-0.80
ASTM A213/A213M
ASME SA213/SA213M		 ＜25.4 ±0.10 ≤38.1 +20%S/-0 L+(0-3)
＞25.4-38.1 ±0.15
＞38.1-50.8 ±0.20 ＞38.1 +22%S/-0 L+(0-5)
＞50.8-63.5 ±0.25
＞63.5-76.2 ±0.30
＞76.2-101.6 ±0.38
＞101.6-190.5 ±0.38/-0.64
＞190.5-228.6 ±0.38/-0.14
ASTM A269/A269M
ASME SA269/SA269M		 ＜12.7 ±0.13 ＜12.7 ±15%S L≤7.3M
L+(0-3.2)
＞12.7-38.1 ±0.13 ＞12.7-38.1 ±10%S
＞38.1-88.9 ±0.25 ＞38.1-88.9 ±10%S L≤7.3M
L+(0-4.8)
＞88.9-139-7 ±0.38 ＞88.9-139.7 ±10%S
＜139.7-203.2 ±0.76 ＞139.7-203.2 ±10%S

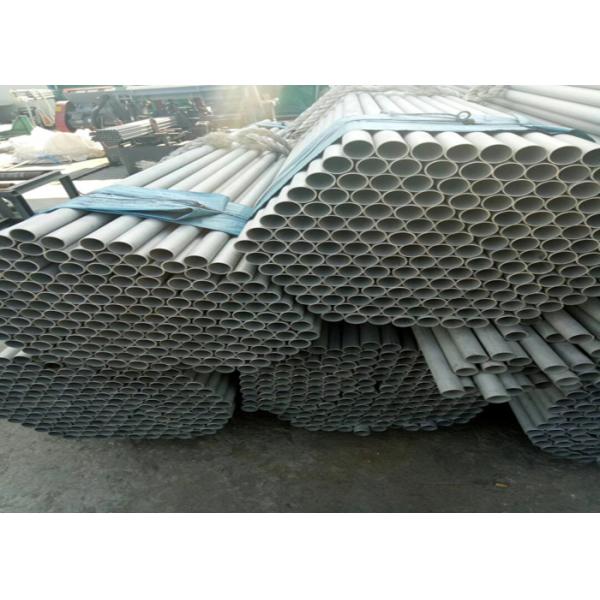

Our product show :
