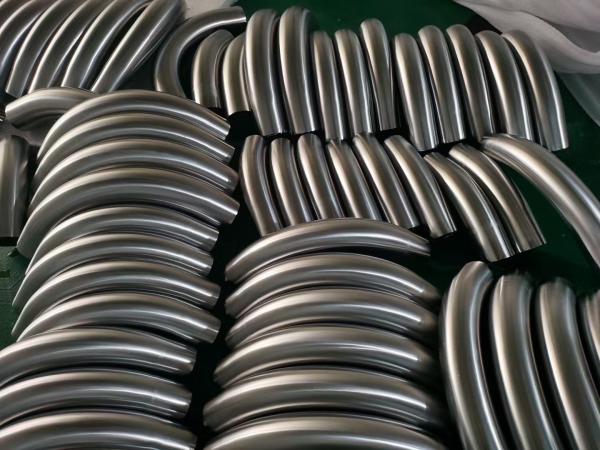

Tp321 Stainless Steel Butt Weld 90°/45° Long/Short Radius Pipe Elbow
Tp321 Stainless Steel Butt Weld 90°/45° Long/Short Radius Pipe Elbow
Tp321 Stainless Steel Butt Weld 90°/45° Long/Short Radius Pipe Elbow
Tp321 Stainless Steel Butt Weld 90°/45° Long/Short Radius Pipe Elbow
Specifications
Brand Name :
Zheheng
Model Number :
TP321
Certification :
ISO9001,ISO14001, TS16949
Place of Origin :
Wenzhou,China
MOQ :
MOQ 1Ton
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
1000 Ton/Tons per Month
Delivery Time :
7-15 working days after receiving payment
Packaging Details :
In wooded cases or pallets,or as for clients requirement
Thickness :
SCH10-XXS or as required
Size :
Seamless 1/2" To 24" Welded 1/2" To 48"
Connection :
Butt weld
Price terms :
FOB,CIF,CFR,EXW
Application Fields :
Petroleum, chemical, machinery, electric power, shipbuilding, papermaking
Technique :
Casting
Overall length :
12 in
Standards :
ASTM A403; ASTM A960; ASTM B16.9; MSS SP-43
Degree :
30, 45, 60, 90, 180 degree
Shape :
Equal
Equipment :
Pushing Machine,Beveling Machine,Sand Blasting Machine
Description

Specification

Make process

Cut the raw material pipe→ Ash loading process→ Suppress →Annealing treatment →Pickling →Polishing→ Rolling sand processing →Do one more pickling→ Bevel end machining
Delivery time within 45 -60 days.
Payment Terms 40% prepayment Balance before lodaing.
Shipping Terms FOB NINGBO, after the inspection of goods at supplier's warehouse
End Plain end

TP321 stainless pipe Chemical Composition

Grade C ≤ Si ≤ Mn ≤ P ≤ S ≤ Ni ≤ Cr ≤
TP321 0.04-0.10 0.75 2 0.045 0.03 9.00-13.00 17.00-20.00

Mechanical Composition

Grade Tensile Yield %Age Hardness (Max)
Strength Mpa, (Min) Strength Elongation
Mpa, (Min) in 50mm
gauge length min BHN Rb
TP321 515 205 40 217 95

Product Testing

Component analysis

penetrating test

impact test

Package Process

Inside:Plastic film packaging.

Outside:Wooden Box + Pallet.
