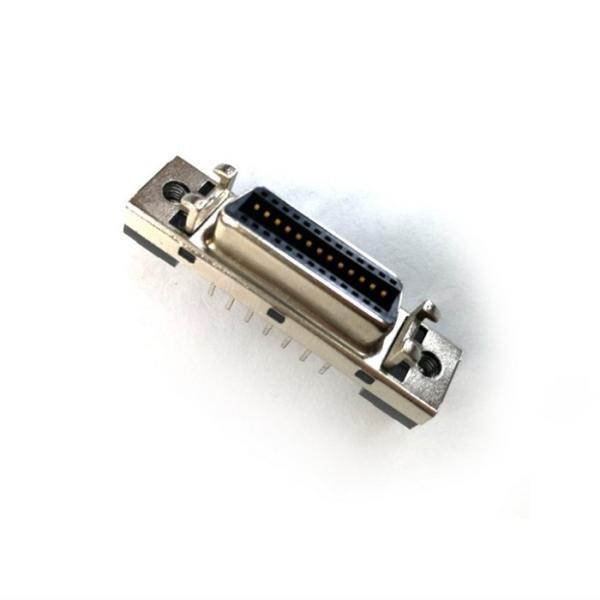

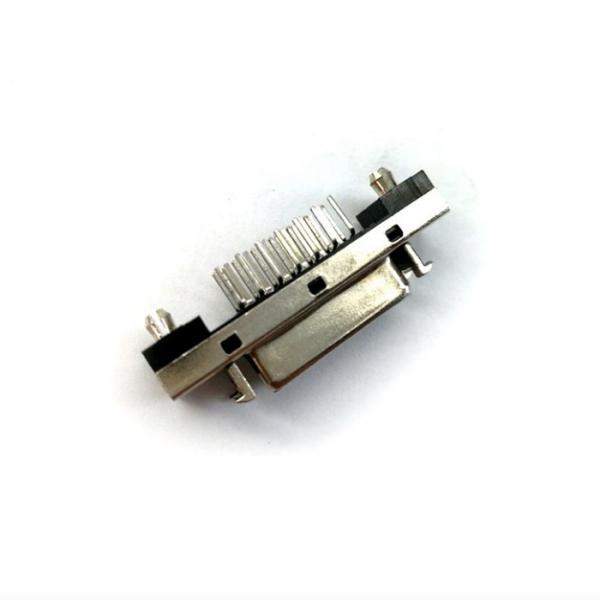

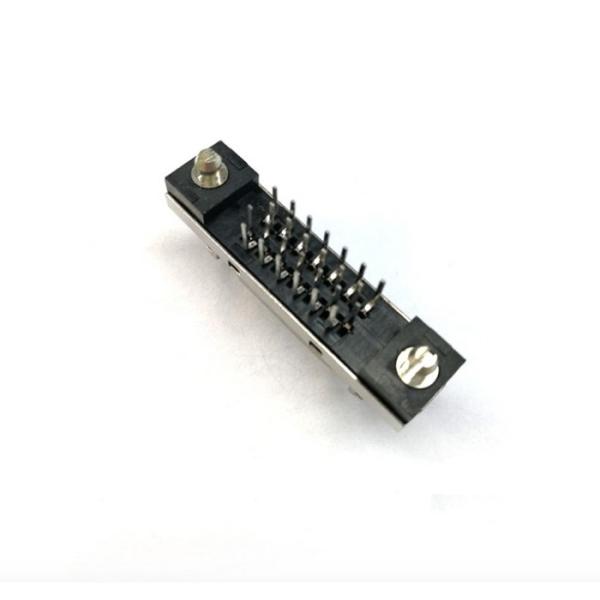

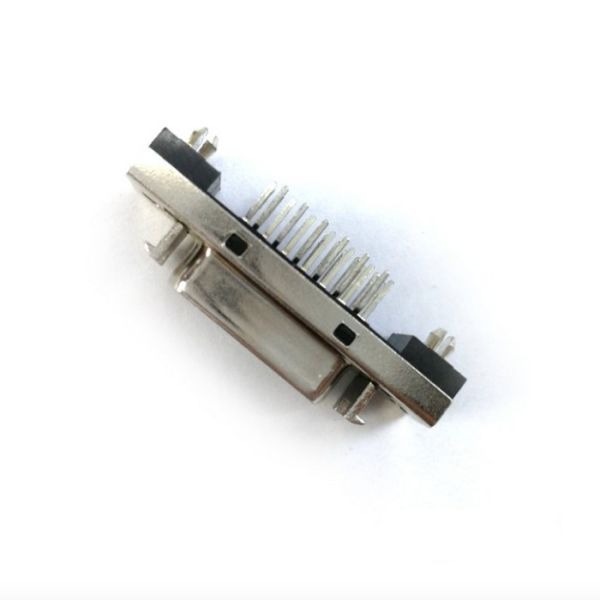

20P Female 180 Degree DIP Waterproof Electrical Connector For PCB Mount
20P Female 180 Degree DIP Waterproof Electrical Connector For PCB Mount
20P Female 180 Degree DIP Waterproof Electrical Connector For PCB Mount
20P Female 180 Degree DIP Waterproof Electrical Connector For PCB Mount
20P Female 180 Degree DIP Waterproof Electrical Connector For PCB Mount
20P Female 180 Degree DIP Waterproof Electrical Connector For PCB Mount
20P Female 180 Degree DIP Waterproof Electrical Connector For PCB Mount
20P Female 180 Degree DIP Waterproof Electrical Connector For PCB Mount
Specifications
Brand Name :
DZ
Model Number :
180 Degree DIP Connector
Certification :
ISO9001 | CE | ROHS | REACH | MSDS | SGS
Place of Origin :
CHINA
MOQ :
100 Pieces
Price :
100 - 999 Pieces = $$1.20, 1000 - 4999 Pieces = $1.15, 5000 - 9999 Pieces = $1.10, ≥ 10000 Pieces = $1.05
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Week 180 Degree DIP Connector
Delivery Time :
7 Days
Packaging Details :
Export Standard Seaworthy Or Airworthy Packing Or As Customer's Required
Type :
SCSI
Application :
Medical Machine
Gender :
Female
Pins :
20P
Product name :
SCSI 20P Female Connector
Material :
PBT
Color :
Black
Current Rating :
0.5 AMP
Contacts Material :
Brass
Plating :
Goldplated
Package :
Double Blister
Temperature Range :
-55~+85
Durability :
10000 Cycles
Description

SCSI - CN 20P Female 180 Degree DIP Connector For PCB Mount

# 180 Degree DIP Connector Properties

SCSI-CN 20P Female 180Degree DIP Connector For PCB Mount

1.MATERIAL:

Plastic Material:

PBT+30%G.F

Contact Material:

Brass

Shell Material

Zinc Alloy

2.MECHANICAL PERFORMANCE

INSERTION FORCE

5N~20N

WITHDRAWAL FORCE

INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N

DURABILITY

10000 CYCLES

3.ELECTRICAL PERFORMANCE

CURRENT RATING

0.5A

CONTACT Resistance

40mΩ MAX(INITIAL)

Withstand Voltage

AC 500V

INSULATION RESISTANCE:UNMATED

100MΩ MIN

20P Female 180 Degree DIP Waterproof Electrical Connector For PCB Mount20P Female 180 Degree DIP Waterproof Electrical Connector For PCB Mount

20P Female 180 Degree DIP Waterproof Electrical Connector For PCB Mount

FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.
Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.
20P Female 180 Degree DIP Waterproof Electrical Connector For PCB Mount
