2 X 10p Box Header Right Angle Dip Waterproof Electrical Wire Connectors 2.0mm Pitch
2 X 10p Box Header Right Angle Dip Waterproof Electrical Wire Connectors 2.0mm Pitch
2 X 10p Box Header Right Angle Dip Waterproof Electrical Wire Connectors 2.0mm Pitch
2 X 10p Box Header Right Angle Dip Waterproof Electrical Wire Connectors 2.0mm Pitch
2 X 10p Box Header Right Angle Dip Waterproof Electrical Wire Connectors 2.0mm Pitch
2 X 10p Box Header Right Angle Dip Waterproof Electrical Wire Connectors 2.0mm Pitch
2 X 10p Box Header Right Angle Dip Waterproof Electrical Wire Connectors 2.0mm Pitch
2 X 10p Box Header Right Angle Dip Waterproof Electrical Wire Connectors 2.0mm Pitch
Specifications
Brand Name :
DZ
Model Number :
DZ2589-JB510
Certification :
ISO9001 | CE | ROHS | REACH | MSDS | SGS
Place of Origin :
CHINA
MOQ :
100 Pieces
Price :
100 - 999 Pieces = $0.12, 1000 - 4999 Pieces = $0.11, 5000 - 9999 Pieces = $0.10, ≥ 10000 Pieces = $0.09
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Week 2 x 10P Box Header Right Angle Dip
Delivery Time :
7 Days
Packaging Details :
Export Standard Seaworthy Or Airworthy Packing Or As Customer's Required
Type :
Pin Header Connector
Packaging :
Tape & Reel (TR)
Description :
2.0mm Box Header Connector
Gender :
Male, Computer
Pins :
20P
Color :
Black
Current Rating :
3 AMP
Contacts Material :
Phosphor Brozen
Plating :
Goldplated
Package :
Plastic Reel
Temperature Range :
-25~+80
Lead time :
3-5days
Supplier Type :
Original manufacturer
Pin or Socket :
Pin
Impedance :
50Ohm
Application :
PCB
Material :
LCP
Specifications :
SMT Pin Header Connector
Pitch :
2.00mm
Number of Rows :
2Rows
Number of Positions :
20P
Mounting Type :
SMT
Connector Usage :
PCB Board
Number of Columns :
12
Shell Material :
PBT
Voltage - Rated :
5V
Number of Positions/Bay/Row :
2
Board Thickness :
1.6MM
Description

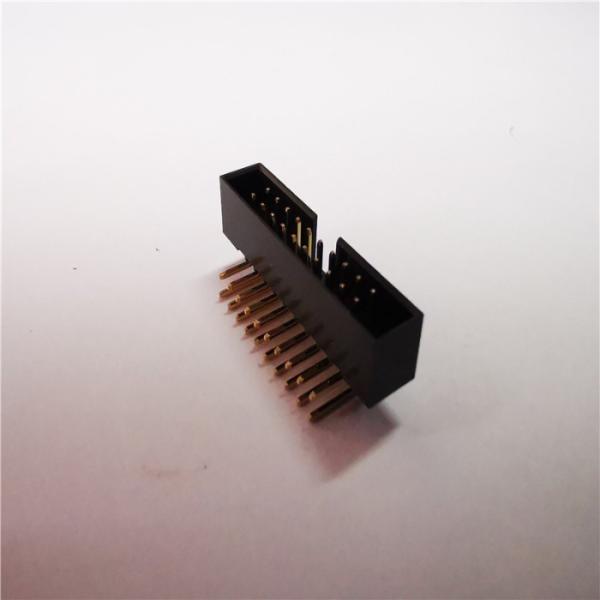

2.0MM Pitch 2 X 10P Box Header Right Angle Dip

# 2 x 10P Box Header Right Angle Dip Properties

2.0MM Pitch 2 X 10P Box Header Right Angle Di

1.MATERIAL:

Plastic Material:

LCP

Contact Material:

Phosphor Brozen

Contact Plating:

Gold Plating

2.MECHANICAL PERFORMANCE

INSERTION FORCE

5N~20N

WITHDRAWAL FORCE

INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N

DURABILITY

10000 CYCLES

3.ELECTRICAL PERFORMANCE

CURRENT RATING

3 A

CONTACT Resistance

40mΩ MAX(INITIAL)

Withstand Voltage

AC 500V

INSULATION RESISTANCE:UNMATED

100MΩ MIN

2 X 10p Box Header Right Angle Dip Waterproof Electrical Wire Connectors 2.0mm Pitch2 X 10p Box Header Right Angle Dip Waterproof Electrical Wire Connectors 2.0mm Pitch

2 X 10p Box Header Right Angle Dip Waterproof Electrical Wire Connectors 2.0mm Pitch

FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.
Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.
