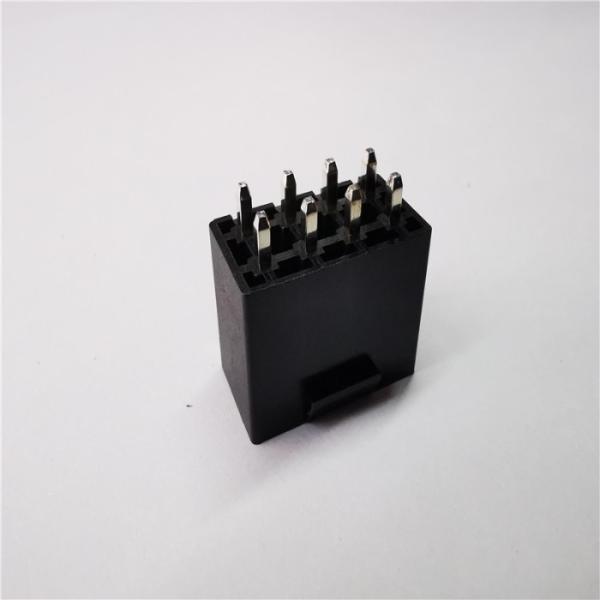

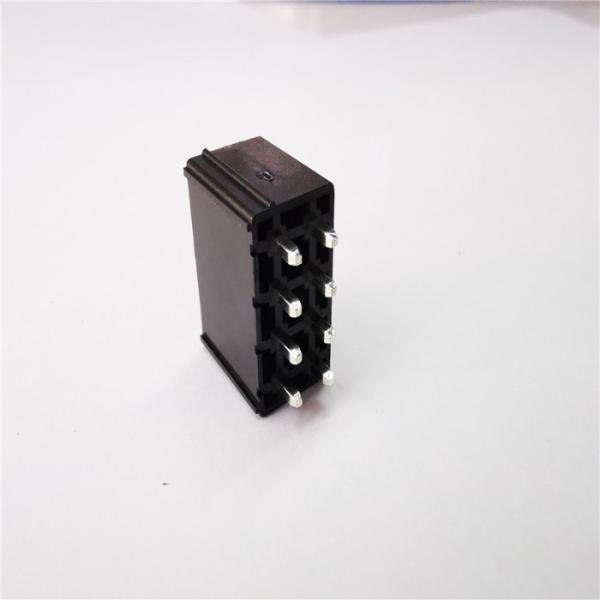

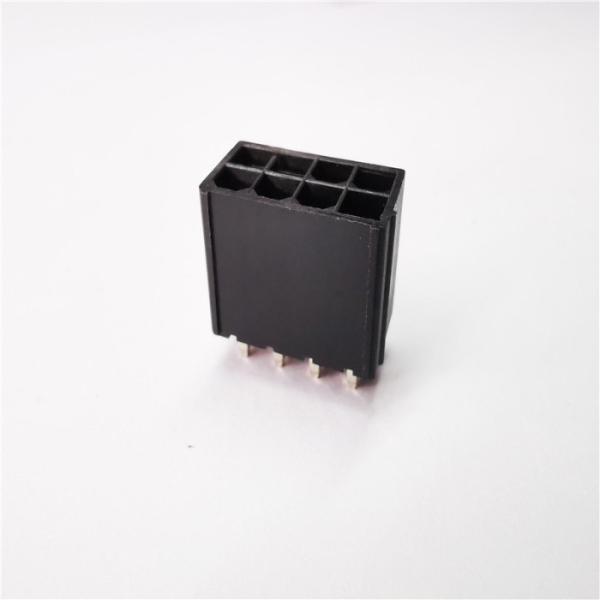

2.54 Mm Wafer 2 X 4P Female Vertical DIP Waterproof Electrical Connector
2.54 Mm Wafer 2 X 4P Female Vertical DIP Waterproof Electrical Connector
2.54 Mm Wafer 2 X 4P Female Vertical DIP Waterproof Electrical Connector
2.54 Mm Wafer 2 X 4P Female Vertical DIP Waterproof Electrical Connector
2.54 Mm Wafer 2 X 4P Female Vertical DIP Waterproof Electrical Connector
2.54 Mm Wafer 2 X 4P Female Vertical DIP Waterproof Electrical Connector
2.54 Mm Wafer 2 X 4P Female Vertical DIP Waterproof Electrical Connector
2.54 Mm Wafer 2 X 4P Female Vertical DIP Waterproof Electrical Connector
Specifications
Brand Name :
DZ
Model Number :
Female Vertical DIP
Certification :
ISO9001 | CE | ROHS | REACH | MSDS | SGS
Place of Origin :
CHINA
MOQ :
100 Pieces
Price :
100 - 999 Pieces = $0.12, 1000 - 4999 Pieces = $0.11, 5000 - 9999 Pieces = $0.10, ≥ 10000 Pieces = $0.09
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Week Female Vertical DIP
Delivery Time :
7 Days
Packaging Details :
Export Standard Seaworthy Or Airworthy Packing Or As Customer's Required
Shell Material :
PBT
Type :
Wafer Connector
Packaging :
Tape & Reel (TR)
Description :
2.54mm Wafer Connector
Number of Positions :
2
Pins :
8P
Color :
Black
Specifications :
Right angle DIP Connector
Pitch :
2.54mm
Current Rating :
3 AMP
Contacts Material :
Phosphor Brozen
Plating :
Goldplated
Package :
Plastic Reel
Board Thickness :
1.6MM
Temperature Range :
-25~+80
Lead time :
3-5days
Supplier Type :
Original manufacturer
Pin or Socket :
Pin
Impedance :
50Ohm
Application :
PCB
Number of Rows :
2Rows
Mounting Type :
SMT
Connector Usage :
PCB Board
Number of Columns :
12
Voltage - Rated :
5V
Number of Positions/Bay/Row :
2
Description

2.54mm Wafer 2 X 4P Female Vertical DIP

# Female Vertical DIP Properties

2.54mm Wafer 2 X 4P Female Vertical DI

1.MATERIAL:

Plastic Material:

LCP

Contact Material:

Phosphor Brozen

Contact Plating:

Gold Plating

2.MECHANICAL PERFORMANCE

INSERTION FORCE

5N~20N

WITHDRAWAL FORCE

INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N

DURABILITY

10000 CYCLES

3.ELECTRICAL PERFORMANCE

CURRENT RATING

3 A

CONTACT Resistance

40mΩ MAX(INITIAL)

Withstand Voltage

AC 500V

INSULATION RESISTANCE:UNMATED

100MΩ MIN

2.54 Mm Wafer 2 X 4P Female Vertical DIP Waterproof Electrical Connector2.54 Mm Wafer 2 X 4P Female Vertical DIP Waterproof Electrical Connector

2.54 Mm Wafer 2 X 4P Female Vertical DIP Waterproof Electrical Connector

FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.
Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.
