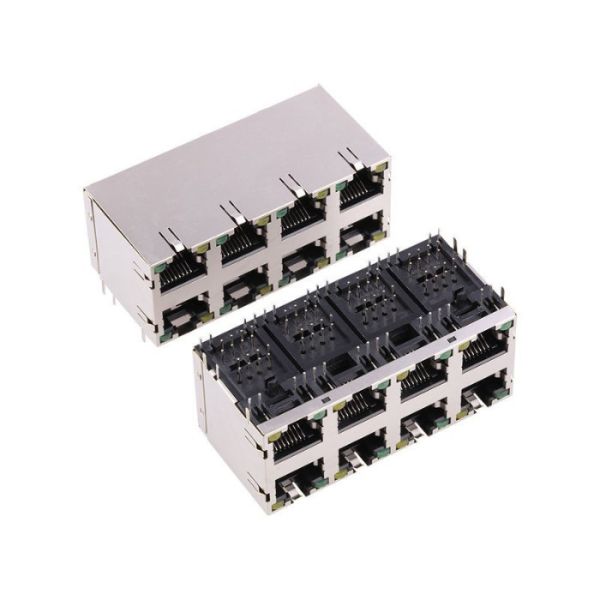

8 Port 8p8c Female 2 X 4 Port Rj45 Jack Connector With Led Light
8 Port 8p8c Female 2 X 4 Port Rj45 Jack Connector With Led Light
8 Port 8p8c Female 2 X 4 Port Rj45 Jack Connector With Led Light
8 Port 8p8c Female 2 X 4 Port Rj45 Jack Connector With Led Light
8 Port 8p8c Female 2 X 4 Port Rj45 Jack Connector With Led Light
8 Port 8p8c Female 2 X 4 Port Rj45 Jack Connector With Led Light
8 Port 8p8c Female 2 X 4 Port Rj45 Jack Connector With Led Light
8 Port 8p8c Female 2 X 4 Port Rj45 Jack Connector With Led Light
Specifications
Brand Name :
DZ
Model Number :
Jack Connector
Certification :
ISO9001 | CE | ROHS | REACH | MSDS | SGS
Place of Origin :
CHINA
MOQ :
100 Pieces
Price :
10 - 999 Pieces = $1.55, 1000 - 4999 Pieces = $1.45, 5000 - 9999 Pieces = $1.35, ≥ 10000 Pieces = $1.25
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Week Jack Connector
Delivery Time :
7 Days
Packaging Details :
Export Standard Seaworthy Or Airworthy Packing Or As Customer's Required
Type :
RJ45
Application :
PCB
Gender :
Female
Pins :
32P
Product name :
8Port RJ45 Female Connector
Material :
Brass
Plating :
Goldplated
Operating Temperature :
40 ~ +85
Contact material :
Brass Gold Plated
Speed :
10/100/1000 Base
Color :
Silver
Description

8 Port Rj 45 8p8c Female 2 X 4port Jack Connector With Led Light

# Jack Connector Properties

1.MATERIAL:
1-1.SHELL:
BRASS
1-2.HOUSING:
PBT+30%G.F. UL94 V-0 BLACK
1-3.TEMINARL:
Phosphor Bronze
2.PLATING SPECIFICATION
2-1.TERMINAL:
GOLD PLATED/3U"/6U"/15U"/30U"
2-2.SHELL:
NICKEL PLATED
3.MECHANICAL PERFORMANCE
3-1.INSERTION FORCE:
5N~20N.
3-2.WITHDRAWAL FORCE:
INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N.
3-3.DURABILITY:
750 Cycles MIN.
4.ELECTRICAL PERFORMANCE
4-1.CURRENT RATING:
1.5A.
4-2.CONTACT RESISTANCE:
30milliohm Max
4-3.INSULATION RESISTANCE:
500 MΩ MIN @ 500V DC.
4-4.DIELECTRIC WITHSTAND VOLTAGE:
100V/AC.
5.OPERATING TEMPERATURE RANGE:
-40℃ to +85℃
6.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.

8 Port 8p8c Female 2 X 4 Port Rj45 Jack Connector With Led Light8 Port 8p8c Female 2 X 4 Port Rj45 Jack Connector With Led Light

8 Port 8p8c Female 2 X 4 Port Rj45 Jack Connector With Led Light

FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.
Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.
