Specifications
Brand Name :
DZ
Model Number :
6P Right Angle DIP Connector
Certification :
ISO9001 | CE | ROHS | REACH | MSDS | SGS
Place of Origin :
CHINA
MOQ :
100 Pieces
Price :
100 - 999 Pieces = $0.12, 1000 - 4999 Pieces = $0.11, 5000 - 9999 Pieces = $0.10, ≥ 10000 Pieces = $0.09
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Week 6P Right Angle DIP Connector
Delivery Time :
7 Days
Packaging Details :
Export Standard Seaworthy Or Airworthy Packing Or As Customer's Required
Type :
Wafer Connector
Application :
PCB
Packaging :
Tape & Reel (TR)
Supplier Type :
Original manufacturer
Color :
Black, Black
Material :
PBT
Description :
3.0mm Wafer Connector
Specifications :
Right angle DIP Connector
Pin or Socket :
Pin
Number of Positions :
6P
Pitch :
3.0mm
Number of Rows :
2Rows
Mounting Type :
DIP
Connector Usage :
PCB Board
Number of Columns :
1
Gender :
Computer, Female
Voltage - Rated :
5V
Number of Positions/Bay/Row :
2
Shell Material :
PBT
Current Rating (Amps) :
3A
Voltage Rating :
5V
Impedance :
50Ohm
Board Thickness :
1.6MM
Pins :
6P
Current Rating :
6AMP
Contacts Material :
Phosphor Brozen
Plating :
Goldplated
Temperature Range :
-25~+80
Lead time :
3-5days
Description

3.0MM Pitch Wafer MX Female 6P Right Angle DIP Connector

# 6P Right Angle DIP Connector Properties

3.0mm Pitch Wafer 18P Right Angle DIP Connector

1.MATERIAL:

Plastic Material:

LCP

Contact Material:

Phosphor Brozen

Contact Plating:

Gold Plating

2.MECHANICAL PERFORMANCE

INSERTION FORCE

5N~20N

WITHDRAWAL FORCE

INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N

DURABILITY

10000 CYCLES

3.ELECTRICAL PERFORMANCE

CURRENT RATING

3 A

CONTACT Resistance

40mΩ MAX(INITIAL)

Withstand Voltage

AC 500V

INSULATION RESISTANCE:UNMATED

100MΩ MIN

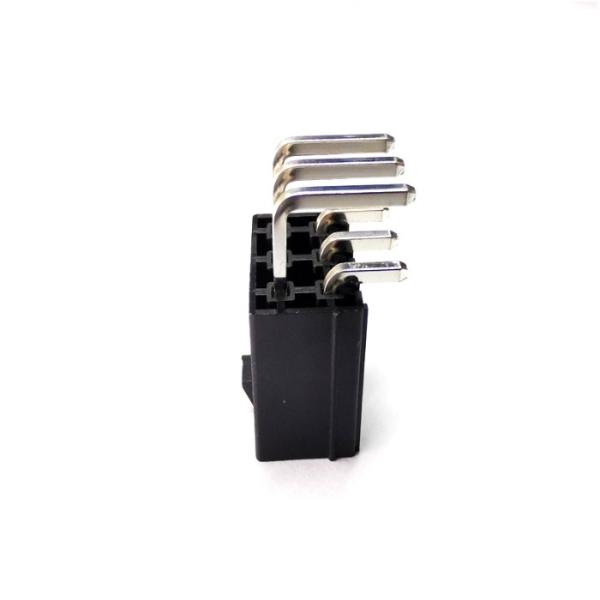

3.0MM Pitch Wafer MX Female 6P Right Angle DIP Connector3.0MM Pitch Wafer MX Female 6P Right Angle DIP Connector

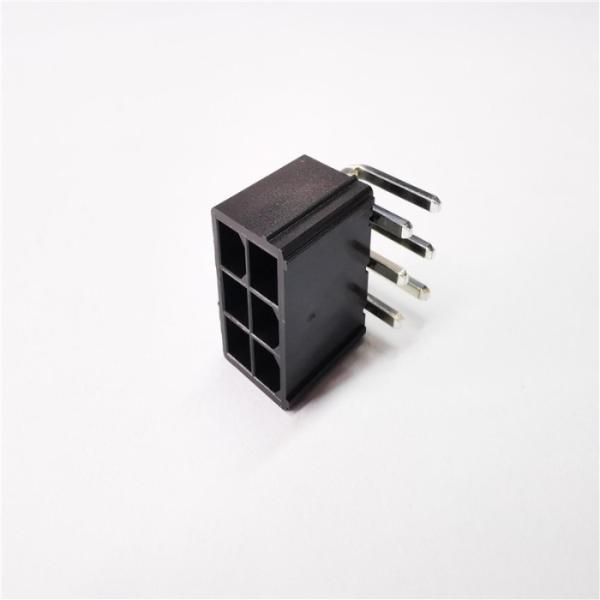

3.0MM Pitch Wafer MX Female 6P Right Angle DIP Connector


FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.

Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.
