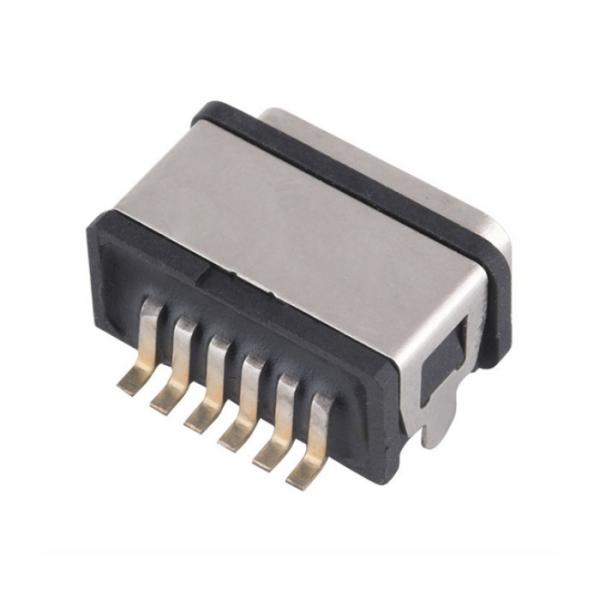

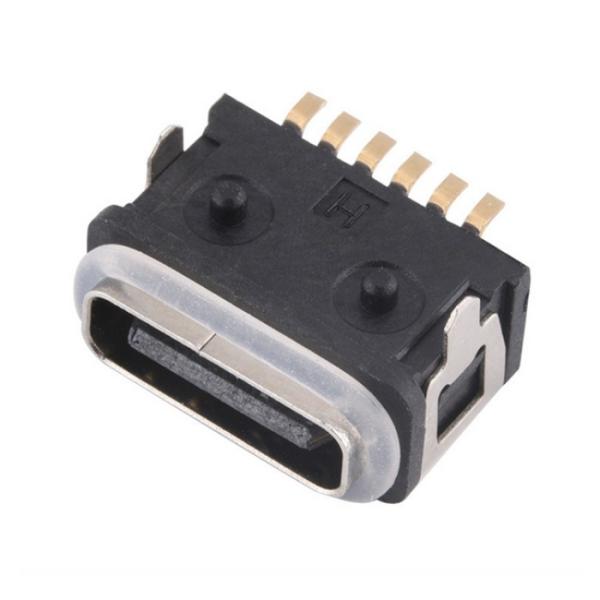

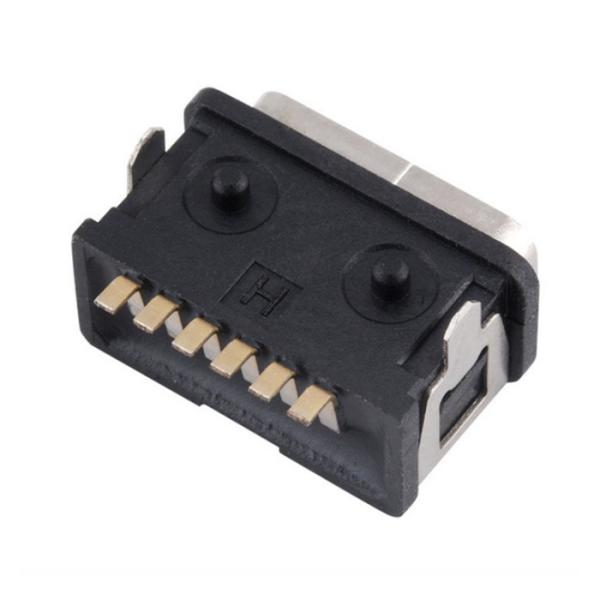

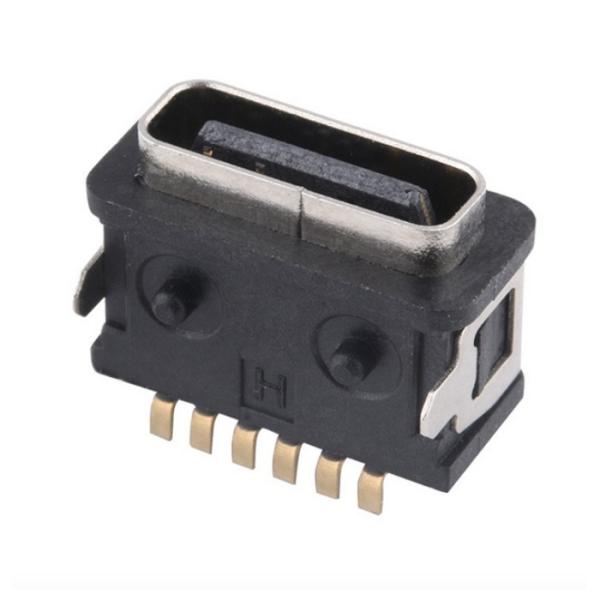

Usb Type C Female 6p Smt Ip67 Waterproof Electrical Connector
Usb Type C Female 6p Smt Ip67 Waterproof Electrical Connector
Usb Type C Female 6p Smt Ip67 Waterproof Electrical Connector
Usb Type C Female 6p Smt Ip67 Waterproof Electrical Connector
Usb Type C Female 6p Smt Ip67 Waterproof Electrical Connector
Usb Type C Female 6p Smt Ip67 Waterproof Electrical Connector
Usb Type C Female 6p Smt Ip67 Waterproof Electrical Connector
Usb Type C Female 6p Smt Ip67 Waterproof Electrical Connector
Specifications
Brand Name :
DZ
Model Number :
SMT IP67 Connector
Certification :
ISO9001 | CE | ROHS | REACH | MSDS | SGS
Place of Origin :
CHINA
MOQ :
100 Pieces
Price :
100 - 999 Pieces = $0.42, 1000 - 4999 Pieces = $0.41, 5000 - 9999 Pieces = $0.40, ≥ 10000 Pieces = $0.39
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Week SMT IP67 Connector
Delivery Time :
7 Days
Packaging Details :
Export Standard Seaworthy Or Airworthy Packing Or As Customer's Required
Type :
Contact Connector
Packaging :
Tape & Reel (TR)
Description :
USB Type C Connector
D/C :
CF1SM02
Supplier Type :
Original manufacturer
Pin or Socket :
Pin
Cross Reference :
S001-UB31AF008-2
Application :
Mobile Phone
Interface Type :
USB Type C
Color :
Black
Material :
Copper Allor, LCP
Media Available :
Datasheet
Specifications :
SMT + DIP Connector
Termination :
USB Type C Male Cable
Features :
Power Charge&Data Transfer
Contact Termination :
Terminal
Number of Positions :
24P
Pitch :
O.5MM
Number of Rows :
2 Row
Mounting Type :
PCB
Connector Usage :
Power Charge&Data Transfer
Number of Columns :
12
Gender :
Mobile Phone, Computer
Number of Positions/Contacts :
24P
Voltage - Rated :
20V
Number of Positions/Bay/Row :
6P
Shell Material :
Copper Alloy
Current Rating (Amps) :
3A
Voltage Rating :
20V
Diameter - Outside :
8.94MM
Impedance :
100Ohm Min
Number of Ports :
1
Adapter Series :
USB Type C
Center Contact Plating :
Gold plating
Housing Finish :
Ni Plating
Terminal Type :
Stamping Terminal
Product name :
Waterproof USB Type C 6P Connector
Contact material :
Brass Gold Plated
Insulation Resistance :
100M Ohm/Min
Contact Resistance :
40m Ohms Max
Lead free status :
Lead FreePB
Withstand Voltage :
1000V AC
Payment :
T / T
Description

Waterproof USB Type C Female 6P SMT IP67 Connector

# SMT IP67 Connector Properties

1.MATERIAL:
1-1.OUTSIDE SHELL: SUS301-1/2H T=0.20mm
1-2.INNER SHELL: SUS301-1/2H T=0.20mm
1-3.SIGNAL: SUS301-H T=0.10mm
1-4.RFI PAD: SUS301-H T=0.10mm
1-5.HOUSING: LCP+30%G.F. UL94 V-0 BLACK
1-6.TEMINARL: COPPER ALLOY C19400-H.T=0.10mm
2.PLATING SPECIFICATION
2-1.TERMINAL: GOLD PLATED.
2-2.SHELL: NICKEL PLATED 60μ"MIN.
3.MECHANICAL PERFORMANCE
3-1.INSERTION FORCE: 5N~20N.
3-2.WITHDRAWAL FORCE: INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N.
3-3.DURABILITY: 10000 CYCLES.
4.ELECTRICAL PERFORMANCE
4-1.CURRENT RATING: 3A.
4-2.LLCR: CONTACT: 40mΩ MAX(INITIAL).
4-3.INSULATION RESISTANCE:UNMATED: 100MΩ MIN.
4-4.DIELECTRIC WITHSTAND VOLTAGE: 100V/AC.
5.IR REFLOW:
THE PEAK TEMPERATURE ON BOARD SHALL BE MAINTAINED FOR 10 SECONDS AT 260±5°C.
6.OPERATING TEMPERATURE RANGE: -55°C~105°C.
7.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.

Usb Type C Female 6p Smt Ip67 Waterproof Electrical ConnectorUsb Type C Female 6p Smt Ip67 Waterproof Electrical Connector

Usb Type C Female 6p Smt Ip67 Waterproof Electrical Connector

FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.
Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.
