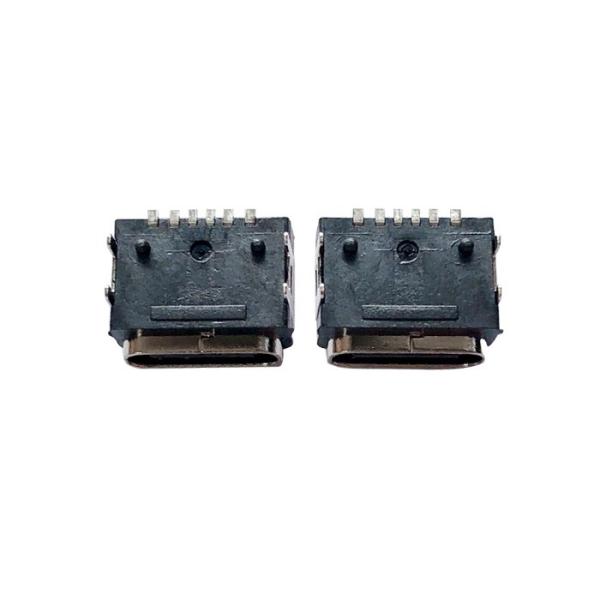

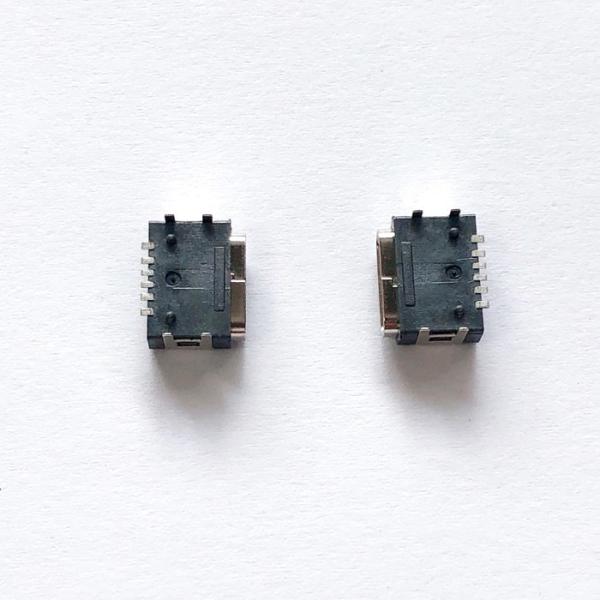

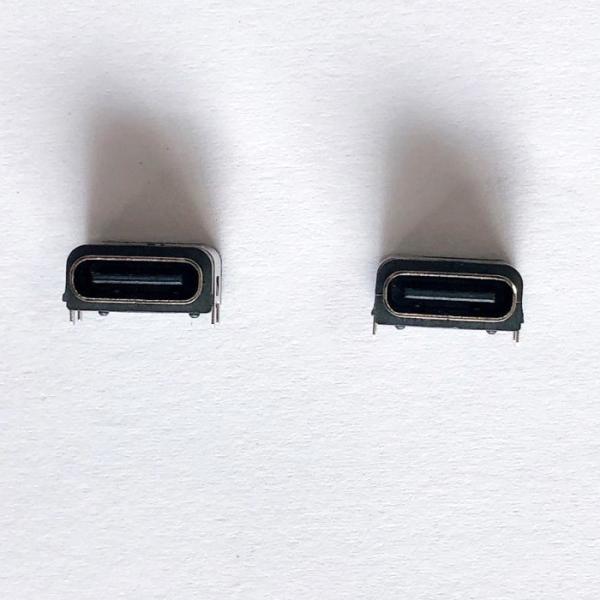

6P Female SMT IPX7 Usb C Type Connector As Waterproof Electrical Connector
6P Female SMT IPX7 Usb C Type Connector As Waterproof Electrical Connector
6P Female SMT IPX7 Usb C Type Connector As Waterproof Electrical Connector
6P Female SMT IPX7 Usb C Type Connector As Waterproof Electrical Connector
6P Female SMT IPX7 Usb C Type Connector As Waterproof Electrical Connector
6P Female SMT IPX7 Usb C Type Connector As Waterproof Electrical Connector
6P Female SMT IPX7 Usb C Type Connector As Waterproof Electrical Connector
6P Female SMT IPX7 Usb C Type Connector As Waterproof Electrical Connector
Specifications
Brand Name :
DZ
Model Number :
6P Female SMT Connector
Certification :
ISO9001 | CE | ROHS | REACH | MSDS | SGS
Place of Origin :
CHINA
MOQ :
100 Pieces
Price :
10 - 999 Pieces = $0.45, 1000 - 4999 Pieces = $0.44, 5000 - 9999 Pieces = $0.43, ≥ 10000 Pieces = $0.42
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Week 6P Female SMT Connector
Delivery Time :
7 Days
Packaging Details :
Export Standard Seaworthy Or Airworthy Packing Or As Customer's Required
Type :
USB Type C Connector
Packaging :
Tape & Reel (TR)
Description :
USB 3.1 6P Female Connector
Gender :
female, Mobile Phone,Electrical Toothbrush
Pins :
6p
Product name :
Waterproof USB Type C 6P IPX7 Connector
Material :
Brass, LCP
Plating :
Goldplated
Operating Temperature :
40 ~ +85
Contact material :
Brass Gold Plated
Impedance :
100 Ohm Min, 100 Ohms
Color :
Silver, Black
Supplier Type :
Original manufacturer
Application :
Electrical Device
Interface Type :
USB Type C
Specifications :
Waterproof USB Type C Female Connector
Termination :
USB 3.1 Port
Features :
Waterproof
Pin or Socket :
Socket
Number of Positions :
6P
Pitch :
1.0mm Pitch
Number of Rows :
1 Row
Mounting Type :
PCB SMT+DIP
Connector Usage :
Electrical Charger
Number of Columns :
6 Line
Plug/Mating Plug Diameter :
10.0mm
Number of Positions/Contacts :
4 Plug
Voltage - Rated :
100VAC
Number of Positions/Bay/Row :
700PCS/Reel
Shell Material :
Stainless Steel
Current Rating (Amps) :
3.0A Max
Voltage Rating :
500V
Diameter - Outside :
10.0MM
Contact Size :
8.34MM
Number of Ports :
1 Ports
Adapter Series :
US Version, Europe Version
Center Contact Plating :
3U" Au Plating
Board Thickness :
1.6mm
Maximum Working Height :
4.66mm
Cable End Type :
USB Type C Cable
Housing Finish :
Ni Plating
Port Direction :
Positive
Voltage :
5V
Region Utilized :
All around world
Terminal Block Type :
molding
Number of Circuits :
6
Current Rating (Per Contact) :
0.5
Panel Mount Type :
SMT
Current :
3A
Wire Termination :
USB 3.1 Cable
Terminal Type :
Stamping
Approved Countries :
US/European
Head Style :
Round
Description

Waterproof USB 3.1 Type C 6P Female SMT Connector IPX7

# 6P Female SMT Connector Properties

1.MATERIAL:

1-1.OUTSIDE SHELL:

SUS301-1/2H T=0.20mm

1-2.INNER SHELL:

SUS301-1/2H T=0.20mm

1-3.SIGNAL:

SUS301-H T=0.10mm

1-4.RFI PAD:

SUS301-H T=0.10mm

1-5.HOUSING:

LCP+30%G.F. UL94 V-0 BLACK

1-6.TEMINARL:

COPPER ALLOY C19400-H.T=0.10mm

2.PLATING SPECIFICATION

2-1.TERMINAL:

GOLD PLATED.

2-2.SHELL:

NICKEL PLATED 60μ"MIN.

3.MECHANICAL PERFORMANCE

3-1.INSERTION FORCE:

5N~20N.

3-2.WITHDRAWAL FORCE:

INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N.

3-3.DURABILITY:

10000 CYCLES.

4.ELECTRICAL PERFORMANCE

4-1.CURRENT RATING:

3A.

4-2.LLCR: CONTACT:

40mΩ MAX(INITIAL).

4-3.INSULATION RESISTANCE:

UNMATED: 100MΩ MIN.

4-4.DIELECTRIC WITHSTAND VOLTAGE:

100V/AC.

5.IR REFLOW:

THE PEAK TEMPERATURE ON BOARD SHALL BE MAINTAINED FOR 10 SECONDS AT 260±5°C.

6.OPERATING TEMPERATURE RANGE: -55°C~105°C.

7.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.

6P Female SMT IPX7 Usb C Type Connector As Waterproof Electrical Connector6P Female SMT IPX7 Usb C Type Connector As Waterproof Electrical Connector

6P Female SMT IPX7 Usb C Type Connector As Waterproof Electrical Connector

FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.
Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.
