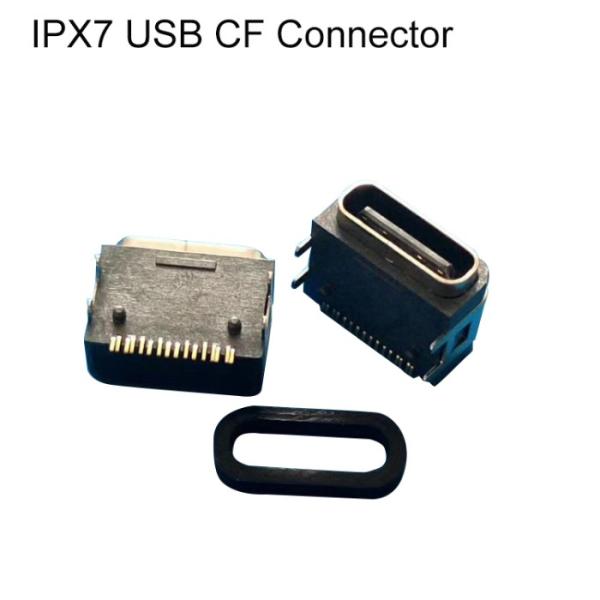

USB 3.1 Type C Female 16P SMT IP67 Waterproof Wire Connectors
USB 3.1 Type C Female 16P SMT IP67 Waterproof Wire Connectors
USB 3.1 Type C Female 16P SMT IP67 Waterproof Wire Connectors
USB 3.1 Type C Female 16P SMT IP67 Waterproof Wire Connectors
USB 3.1 Type C Female 16P SMT IP67 Waterproof Wire Connectors
USB 3.1 Type C Female 16P SMT IP67 Waterproof Wire Connectors
USB 3.1 Type C Female 16P SMT IP67 Waterproof Wire Connectors
USB 3.1 Type C Female 16P SMT IP67 Waterproof Wire Connectors
USB 3.1 Type C Female 16P SMT IP67 Waterproof Wire Connectors
USB 3.1 Type C Female 16P SMT IP67 Waterproof Wire Connectors
Specifications
Brand Name :
DZSICO
Model Number :
SMT IP67 Connector
Certification :
ISO9001 | CE | ROHS | REACH | MSDS | SGS
Place of Origin :
CHINA
MOQ :
100 Pieces
Price :
10 - 999 Pieces = $0.70, 1000 - 4999 Pieces = $0.65, 5000 - 9999 Pieces = $0.60, ≥ 10000 Pieces = $0.46
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Week SMT IP67 Connector
Delivery Time :
7 Days
Packaging Details :
Export Standard Seaworthy Or Airworthy Packing Or As Customer's Required
Type :
USB Type C
Packaging :
Plastic Reel, Tape & Reel (TR)
Application :
Mobile Phone
Pins :
16P
Product name :
USB 3.1 16P Female Connector
Plating :
Goldplated
Operating Temperature :
40 ~ +85
Contact material :
Brass Gold Plated
Waterproof Level :
IP67
Supplier Type :
Original manufacturer
Impedance :
50Ohm
Brand :
DZ
Description

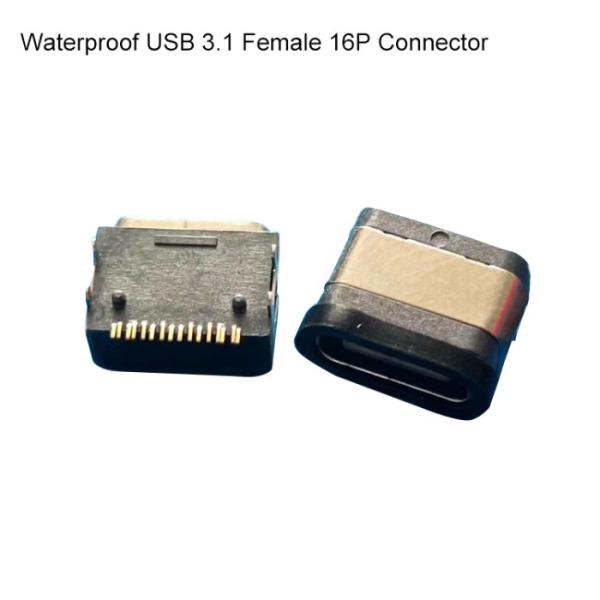

Waterproof USB 3.1 Type C Female 16P SMT IP67 Connector

# SMT IP67 Connector Properties

1.MATERIAL:

1-1.OUTSIDE SHELL:

SUS301-1/2H T=0.20mm

1-2.INNER SHELL:

SUS301-1/2H T=0.20mm

1-3.SIGNAL:

SUS301-H T=0.10mm

1-4.RFI PAD:

SUS301-H T=0.10mm

1-5.HOUSING:

LCP+30%G.F. UL94 V-0 BLACK

1-6.TEMINARL:

COPPER ALLOY C19400-H.T=0.10mm

2.PLATING SPECIFICATION

2-1.TERMINAL:

GOLD PLATED.

2-2.SHELL:

NICKEL PLATED 60μ"MIN.

3.MECHANICAL PERFORMANCE

3-1.INSERTION FORCE:

5N~20N.

3-2.WITHDRAWAL FORCE:

INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N.

3-3.DURABILITY:

10000 CYCLES.

4.ELECTRICAL PERFORMANCE

4-1.CURRENT RATING:

3A.

4-2.LLCR: CONTACT:

40mΩ MAX(INITIAL).

4-3.INSULATION RESISTANCE:

UNMATED: 100MΩ MIN.

4-4.DIELECTRIC WITHSTAND VOLTAGE:

100V/AC.

5.IR REFLOW:

THE PEAK TEMPERATURE ON BOARD SHALL BE MAINTAINED FOR 10 SECONDS AT 260±5°C.

6.OPERATING TEMPERATURE RANGE: -55°C~105°C.

7.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.

USB 3.1 Type C Female 16P SMT IP67 Waterproof Wire ConnectorsUSB 3.1 Type C Female 16P SMT IP67 Waterproof Wire ConnectorsUSB 3.1 Type C Female 16P SMT IP67 Waterproof Wire Connectors

USB 3.1 Type C Female 16P SMT IP67 Waterproof Wire Connectors

FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.
Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.
