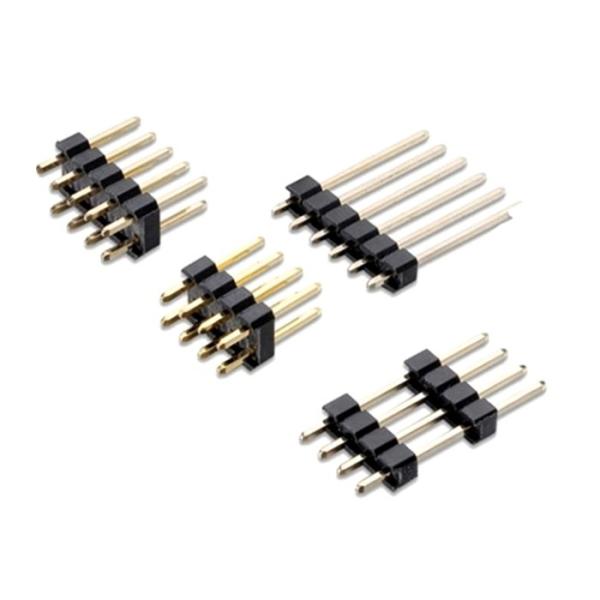

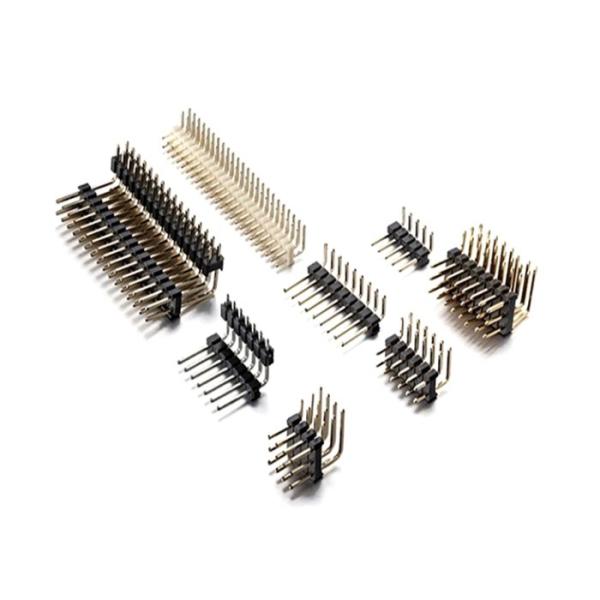

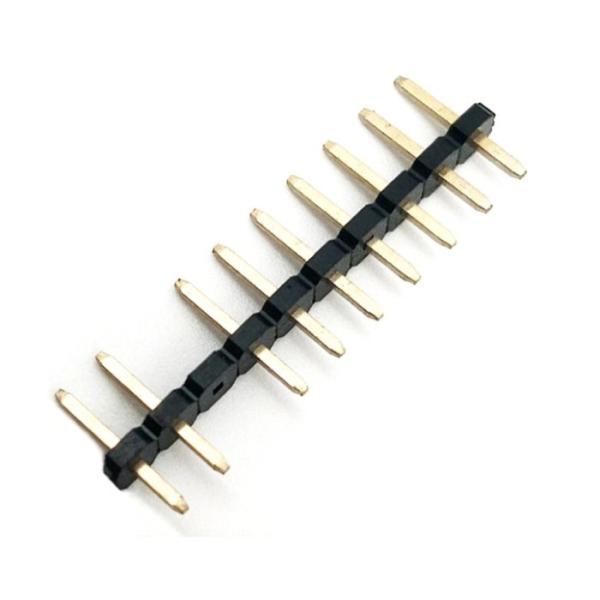

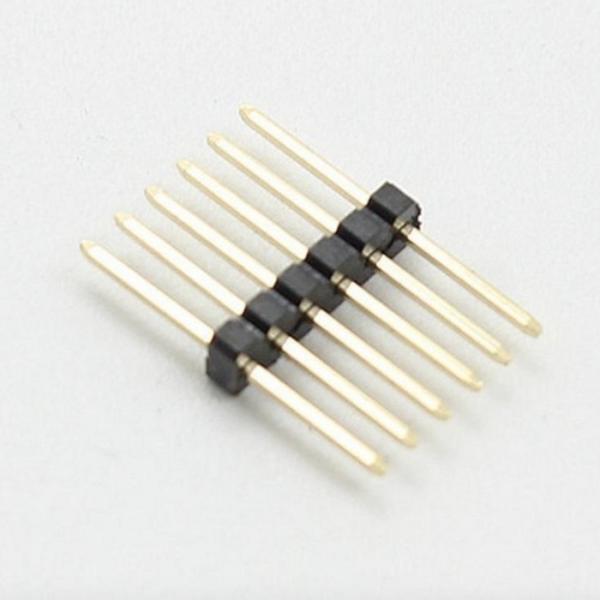

1.5mm Pitch Single Row Pin Header 180 Degree Dip Connector
1.5mm Pitch Single Row Pin Header 180 Degree Dip Connector
1.5mm Pitch Single Row Pin Header 180 Degree Dip Connector
1.5mm Pitch Single Row Pin Header 180 Degree Dip Connector
1.5mm Pitch Single Row Pin Header 180 Degree Dip Connector
1.5mm Pitch Single Row Pin Header 180 Degree Dip Connector
1.5mm Pitch Single Row Pin Header 180 Degree Dip Connector
1.5mm Pitch Single Row Pin Header 180 Degree Dip Connector
Specifications
Brand Name :
DZ
Model Number :
DZ187-MC258
Certification :
ISO9001 | CE | ROHS | REACH | MSDS | SGS
Place of Origin :
CHINA
MOQ :
100 Pieces
Price :
100 - 999 Pieces = $0.08, 1000 - 4999 Pieces = $0.07, 5000 - 9999 Pieces = $0.06, ≥ 10000 Pieces = $0.05
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Week 180 Degree Dip Connector
Delivery Time :
7 Days
Packaging Details :
Export Standard Seaworthy Or Airworthy Packing Or As Customer's Required
Type :
Pin Header Connector
Pins :
16P
Material :
LCP
Product name :
1.5MM Pitch Pin Header 180 DIP Connector
Color :
Black
Current Rating :
3 AMP
Contacts Material :
Phosphor Brozen
Plating :
Goldplated
Temperature Range :
-25~+80
Durability :
10000 Cycles
Description

1.5mm Pitch Single Row Pin Header 180 Degree Dip Connector

# 180 Degree Dip Connector Properties

1.5mm Pitch Single Row Pin Header 180 Degree Dip Connector

1.MATERIAL:

Plastic Material:

LCP

Contact Material:

Phosphor Bronze

Fixed Material

Brass

2.MECHANICAL PERFORMANCE

INSERTION FORCE

5N~20N

WITHDRAWAL FORCE

INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N

DURABILITY

10000 CYCLES

3.ELECTRICAL PERFORMANCE

CURRENT RATING

1.5A

CONTACT Resistance

40mΩ MAX(INITIAL)

Withstand Voltage

AC 500V

INSULATION RESISTANCE:UNMATED

100MΩ MIN

1.5mm Pitch Single Row Pin Header 180 Degree Dip Connector

1.5mm Pitch Single Row Pin Header 180 Degree Dip Connector

FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.
Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.
1.5mm Pitch Single Row Pin Header 180 Degree Dip Connector
