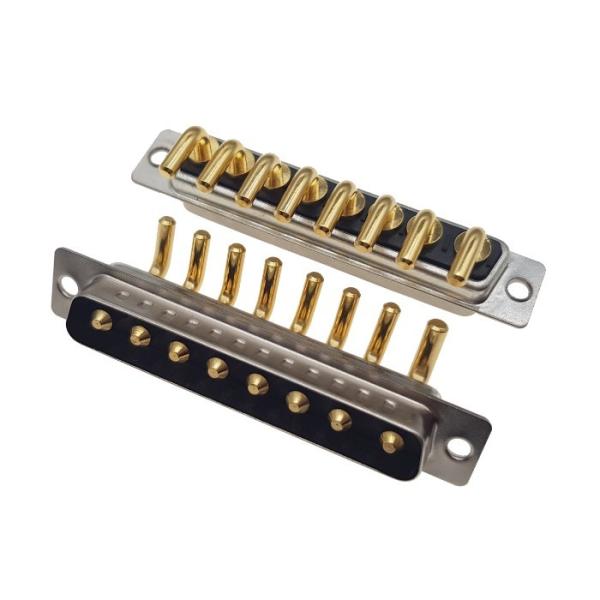

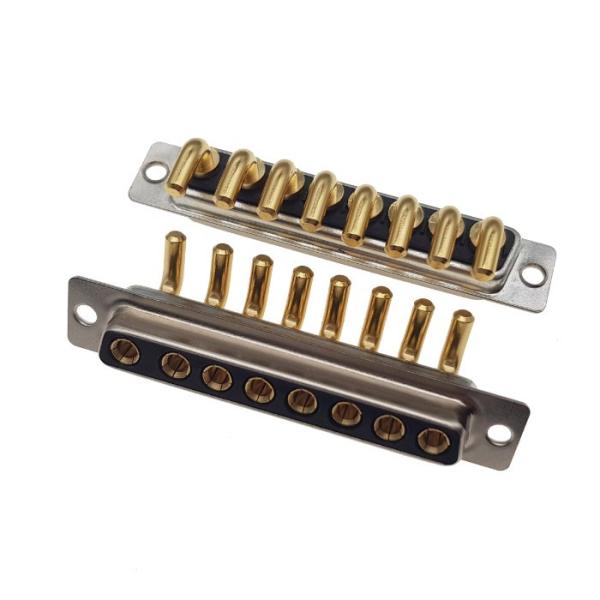

Full Gold Plated D-SUB High Power 8W8 Male Right Angle DIP Connector For Medical Machine
Full Gold Plated D-SUB High Power 8W8 Male Right Angle DIP Connector For Medical Machine
Full Gold Plated D-SUB High Power 8W8 Male Right Angle DIP Connector For Medical Machine
Full Gold Plated D-SUB High Power 8W8 Male Right Angle DIP Connector For Medical Machine
Full Gold Plated D-SUB High Power 8W8 Male Right Angle DIP Connector For Medical Machine
Full Gold Plated D-SUB High Power 8W8 Male Right Angle DIP Connector For Medical Machine
Full Gold Plated D-SUB High Power 8W8 Male Right Angle DIP Connector For Medical Machine
Full Gold Plated D-SUB High Power 8W8 Male Right Angle DIP Connector For Medical Machine
Specifications
Brand Name :
DZ
Model Number :
DIP Connector
Certification :
ISO9001 | CE | ROHS | REACH | MSDS | SGS
Place of Origin :
CHINA
MOQ :
100 Pieces
Price :
100 - 999 Pieces = $4.16, 1000 - 4999 Pieces = $4.06, 5000 - 9999 Pieces = $3.96, ≥ 10000 Pieces = $3.86
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Week DIP Connector
Delivery Time :
7 Days
Packaging Details :
Export Standard Seaworthy Or Airworthy Packing Or As Customer's Required
Type :
VGA
Application :
Machine
Gender :
Female
Pins :
8P
Product name :
High Quality 8W8 Male Connector
Material :
Brass
Connector type :
Dip Type
Contact material :
Copper Full Gold Plated
Insulation resistance :
100M Ohms Min./500 VDC
Temperature Range :
-55C~+85C
Usage :
Electric Appliance
Contacts :
8Pin
Package :
Double Blister
Description

Full Gold Plated D-SUB High Power 8W8 Male Right Angle DIP Connector For Medical Machine

# DIP Connector Properties

1.MATERIAL:
1-1.OUTSIDE SHELL: SPCC & BRASS
1-2.HOUSING:PBT
1-3.TEMINARL: COPPER ALLOY
2.PLATING SPECIFICATION
2-1.TERMINAL: 2U" Full GOLD PLATED.
2-2.SHELL: NICKEL PLATED.
3.MECHANICAL PERFORMANCE
3-1.INSERTION FORCE: 5N~20N.
3-2.WITHDRAWAL FORCE: INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N.
3-3.DURABILITY: 10000 CYCLES.
4.ELECTRICAL PERFORMANCE
4-1.CURRENT RATING: 10A 20A 30A 40A.
4-2.LLCR: CONTACT: 40mΩ MAX(INITIAL).
4-3.INSULATION RESISTANCE:UNMATED: 100MΩ MIN.
4-4.DIELECTRIC WITHSTAND VOLTAGE: 100V/AC.
5.OPERATING TEMPERATURE RANGE: -55°C~85°C.
6.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.

Full Gold Plated D-SUB High Power 8W8 Male Right Angle DIP Connector For Medical MachineFull Gold Plated D-SUB High Power 8W8 Male Right Angle DIP Connector For Medical Machine

Full Gold Plated D-SUB High Power 8W8 Male Right Angle DIP Connector For Medical Machine

FAQ
Q1: When Can I Get the Price?
A1: We usually quote within 12 hours after we get the inquiry. If you are very urgent to get the price, please call us or tell us your email, so that we will regard your inquiry priority.
Q2: Can I Have a Sample Order?
A2: Yeah, welcome order samples to test and check quality.
Q3: Could I Print My Logo on the Product?
A3: Yes, we welcome OEM/ODM, please inform us formally before our mass production and confirm the design firstly based on our samples.
Full Gold Plated D-SUB High Power 8W8 Male Right Angle DIP Connector For Medical Machine
