301 Stainless Steel Strip is a chromium nickel austenitic stainless steel capable of attaining high strengths and ductility by cold working. It is not hardenable by heat treatment. Type 301 is non-magnetic in the annealed condition and becomes increasingly magnetic with cold working. This chromium nickel stainless steel alloy provides high strength and good ductility when cold worked. 301 stainless steel is a modification of stainless steel grade 304 with lower chromium and nickel to increase the work hardening range. Type 301 steel exhibits corrosion resistance comparable to type 302 and 304. In the cold worked and annealed condition, type 301 achieves its most optimal resistance to corrosion. It is preferable over types 302 and 304 in the tempered condition because the higher enlongations (which are attainable at a given strength level) facilitate fabrication.

Ams 5519 301 Stainless Steel Strip Standard Inventory Specifications

*ams 5519 *ams 5517 *ams 5518

Chromium

PHYSICAL PROPERTIES

Density: 0.285 lbs/in 3 7 .88 g/cm3

Electrical Resistivity: microhm-in (microhm-cm): 68 °F (20 °C): 27.4 (69.5)

Specific Heat: BTU/lb/° F (kJ/kg•K): 32 -212 °F (0 -100 °C): 0.12 (0.50)

Thermal Conductivity: BTU/hr/ft2/ft/° F (W/m•K)
At 212 ° F (100 °C)-9.4 (16.2),
At 932 ° F (500 °C)-12.4 (21.4)

Mean Coefficient of Thermal Expansion: in/in/° F (µm/m•K)
32-212 °F (0-100 °C)-9.4 x 10·6 (16.9)
32-600 °F (0-315 °C)-9.9 x 10·6 (17.8)
32 -1000 °F (0 -538 °C)-10.2 x 10·6 (18.4)
32 -1200 °F (0 -649 °C)-10.4 x 10·6 (18.7)

Modulus of Elasticity: ksi (MPa)
28.0 x 103 (193 x 103) in tension
11.2 x 103 (78 x 103) In torsion

Magnetic Permeability: H = 200 Oersteds: Annealed < 1.02 max.
Melting Range: 2250-2590 ° F (1399-1421 ° C)

PRODUCT FORMS
COIL PRODUCTS

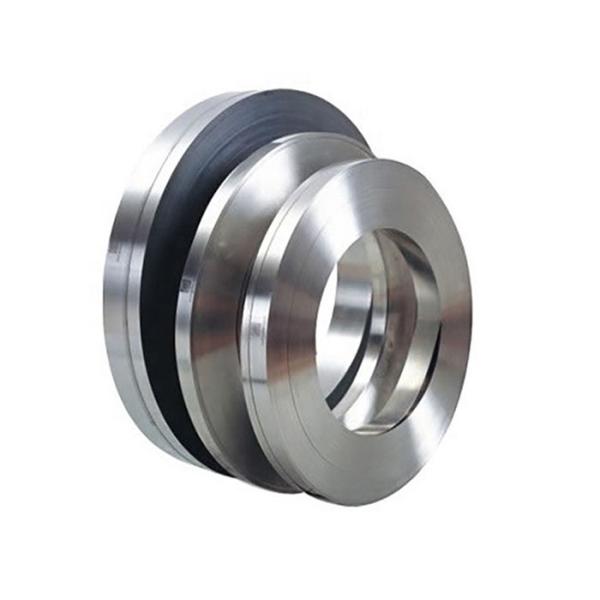

301 Stainless Steel Strip
301 Stainless Steel Foil
301 Stainless Steel Ribbon

WIRE PRODUCTS

301 Stainless Steel Shaped Wire (Custom Profile Wire)
301 Stainless Steel Round Wire
301 Stainless Steel Flat Wire
301 Stainless Steel Square Wire

MECHANICAL PROPERTIES AT ROOM TEMPERATURE
PROPERTIES: ANNEALED CONDITION

Ultimate Tensile Strength: 75 KSI min (515 MPA min) Yield Strength: (0.2% offset): 30 KSI min (205 MPA min) Elongation: 40% Min Hardness: B92 or Equiv. Max

PROPERTIES: TEMPERED

1/16 Hard Ultimate Tensile Strength: 90 KSI min (629 MPA min) Yield Strength: (0.2% Offset) 45 KSI min (310 MPA min) Elongation: 40% Min 1/8 Hard Ultimate Tensile Strength: 100 KSI min (690 MPA) Yield Strength: (0.2% Offset) 55 KSI min/380 MPA min Elongation: 40% Min1/4 Hard Ultimate Tensile Strength: 125 KSI min (860 MPA) Yield Strength: (0.2% Offset) 75 KSI min/515 MPA min Elongation: 25% Min

1/2 Hard Ultimate Tensile Strength: 150 KSI min (1035 MPA min) Yield Strength: (0.2% Offset) 110 KSI min (760 MPA min) Elongation: 15%<.015" 18%>.015" 3/4 Hard Ultimate Tensile Strength: 175 KSI min (1205 MPA min) Yield Strength: (0.2% Offset) 135 KSI MIN/515 MPA MIN Elongation: 10%< .015" 12%> .015" Full Hard Ultimate Tensile Strength: 185 KSI min (1275 MPA min) Yield Strength: (0.2% Offset) 140 KSI min (965 MPA min) Elongation: 8% < .015" 9% > .015" Extra Full Hard Ultimate Tensile Strength: 270 KSI min< .014" (1860 MPA min) 250 KSI min .015" to 017" (1720 MPA min) 225 KSI min .0171" to .019" (1552 MPA min) 205 KSI min .0191 to .021 (1435 MPA min) 185 KSI min >.0211 (1275 MPA min) Spring Tempered Ultimate Tensile Strength: 185 KSI min (1275 MPA min) Yield Strength: (0.2% Offset) 140 KSI min (965 MPA min) Elongation: 8% < .015" 9% > .045"

ADDITIONAL PROPERTIES
CORROSION RESISTANCE

301 has good to excellent corrosion resistance and is used in many food service applications, similar to grade 304.

FINISHES

1 - Hot rolled annealed and descaled. It is available in strip, foil and ribbon. It is used for applications where a smooth decorative finish is not required. # 2D - Dull finish produced by cold rolling, annealing and descaling. Used for deep drawn parts and those parts that need to retain lubricants in the forming process. # 2B - Smooth finish produced by cold rolling, annealing and descaling. A light cold rolling pass is added after anneal with polished rolls giving it a brighter finish than 2D. #BA- Bright annealed cold rolled and bright annealed #CBA- Course bright annealed cold rolled matte finish and bright anneal #2 - Cold Rolled # 2BA- Smooth finish produced by cold rolling and bright annealing. A light pass using highly polished rolls produces a glossy finish. A 2BA finish may be used for lightly formed applications where a glossy finish is desired in the formed part. Polished - Various grit finish for specific polish finished requirements. *Not all finishes are available for all alloys

WIRE - FINISHES

XC - Extra clean bright annealed or bright annealed and cold rolled Grease - Ultra-bright finish (for decorative applications) Soap - Soap coating on tempered wire to act as lubricant

*Contact Ulbrich Wire for custom finishes.

COLD FORMING

301 is ductile and easily formed but severe forming or multiple operations may require intermediate anneals due to it's high work hardening rate. It's hardness and strength makes it a fit for structural applications. Typically stamped or drawn.

RESISTANCE TO ELEVATED TEMPERATURE

Grade 301 exhibits good oxidation resistance for intermittent services up to 840°C and for continuous service up to 900°C.

HEAT TREATMENT

301 is non hardenable by heat treatment.

STRESS RELIEVING

Heat to 400 - 900 °F (260 - 482 °C) and then air cool.

WHAT IS 301 STAINLESS STEEL STRIP USED FOR?

• Springs
• Fasteners
• Washers
• Zippers
• Clips
• Clamps
• Computer Parts
• Contacts
• Stampings of a wide variety of parts
• Pins
