# 316 And 316l Stainless Steel Plate Overview
316 stainless steel plate is the standard molybdenum-bearing grade of stainless steel plate. The molybdenum gives 316 stainless steel plate better overall corrosion resistant properties than grade 304 stainless steel plate. It has particularly higher resistance to pitting and crevice corrosion in chloride environments. 316 stainless steel plate has excellent forming and welding characteristics. It is readily brake or roll formed into a variety of parts for applications in the industrial, architectural, and transportation fields. Grade 316 stainless steel plate also has outstanding welding characteristics. Grade 316L stainless steel plate is the low carbon version of 316 stainless steel plate and is extensively used in heavy gauge welded components.

DZ IRONE & STEEL ( GROUP ) Products stocks both 316 and 316L stainless steel plates in plate mill plate and coil plates. A diverse number of widths and lengths are available. 316 and 316L stainless steel plate mill plate comes in widths of 48”, 60”, 72” and 2 meters (78.74”), 84”, 96” and 120”. The plates come in 96”, 120”, 144”, and 240” in length. We typically stock 316 and 316L stainless steel coil plates in widths including 36”, 48”, 60”, 72” and 2 meters. Stainless steel plate coil is typically inventoried in lengths of in 96”, 120”, 144”, and 240”, but custom lengths are typically available in plate coil.

# 316 And 316l Stainless Steel Plate Chemical Composition
316 and 316L stainless steel plate has a relatively similar chemical composition, however, chemically there is one very important difference. This difference lies in the amount of carbon within each type of stainless steel plate. 316 stainless steel plate is comprised of at most 0.08% carbon while 316L stainless steel plate only contains up to 0.03% carbon. 316 and 316L stainless steel plate both are composed of no more than 2.0% manganese, 0.75% silicon and 0.045% phosphorous. Both 316 and 316L contain at most 0.03% sulfur, between 16.00% and 18.00% chromium, and between 2.0% and 3.0% molybdenum. 316 and 316L stainless steel plate also contains between 10.0% and 14.0% nickel and no more than 0.10% nitrogen.

# 316 And 316l Stainless Steel Plate Mechanical Properties
Stainless steel plates have some very important mechanical properties. Grade 316 stainless steel plate has a minimum tensile strength of 75 ksi and a yield strength at 0.2% of 30 ksi. 316 stainless steel plate has a 40% elongation. On the Brinell hardness scale 316 stainless steel plate has a hardness of 217 and a Rockwell B hardness of 95. There are a few differences in mechanical properties between 316 and 316L stainless steel plate. One of these difference lies in the tensile strength. The minimum tensile strength of 316L stainless steel plate is 70 ksi. The yield strength at 0.2% is 25 ksi. 316L stainless steel has an elongation of 40%, a hardness of 217 on the Brinell scale and a 95 on the Rockwell B scale.

# 316 And 316l Stainless Steel Plate Physical Properties
316 and 316L stainless steel plate density is 0.29 lbM/in^3 at 68℉. The thermal conductivity of grade 316 and 316L stainless steel plate is 100.8 BTU/h ft. at 68℉ to 212℉. The coefficient of thermal expansion is 8.9in x 10^-6 at 32℉-212℉. Between 32℉ and 1,000℉ the coefficient of thermal expansion is 9.7 in x 10^-6, and between 32℉ and 1,500℉ the coefficient of thermal expansion is 11.1 in x 10^-6. The specific heat of 316 and 316L stainless steel plate is 0.108 BTU/lb at 68℉ and at 200℉ it is 0.116 BTU/lb. The melting range of 316 and 316L stainless steel plate is between 2,500℉ and 2,550℉.

What Is The Difference Between 316 And 316l Stainless Steel Plate?
The main difference between 316 stainless steel plate and 316L stainless steel pate is the carbon content. 316 stainless steel plate contains at most 0.08% carbon while 316L stainless steel plate contains no more than 0.03% carbon.
Can 316 And 316l Stainless Steel Plate Be Polished?
Yes, 316 and 316L stainless steel plate can be polished to a wide variety of finishes.
Can 316 And 316l Stainless Steel Plate Be Heat Treated?
Heat treating 316 and 316L stainless steel will not result in a stronger more durable material.
What Are The Benefits Of Using 316 And 316l Stainless Steel Plate Over 304 And 304l Stainless Steel Plate?
The main benefit of using 316and 316L stainless steel plate over 304 and 304L stainless steel plate is it is generally more resistant to corrosion. Because 316 and 316L stainless steel plate contains more chromium and molybdenum, it holds up better under corrosive environments and in marine applications.
Can Stainless Steel Plate Be Purchased That Meets The Requirements Of Both 316 And 316l Stainless Steel Plate?
Yes, it is possible to purchase dual certified stainless steel plate in grades 316 and 316L.

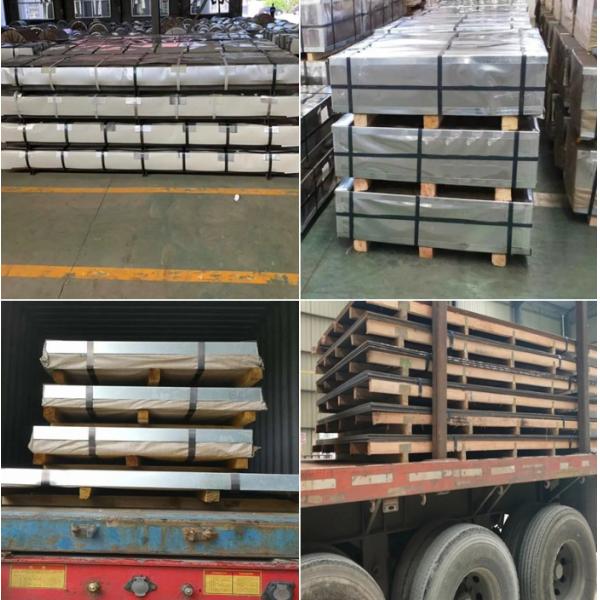

Packing Details: Well Seaworthy Package: PVC+ waterproof paper, seaworthy wooden package or as requirment.

Delivery Details: For stocks, goods can be sent to loading port within 7 days after receiving your deposit.

For production period, it usually needs about 15 days ~30 days after receiving the deposit.
