ASTM A36 Galvalume Aluzinc Roofing Prepainted Steel Coil
ASTM A36 Galvalume Aluzinc Roofing Prepainted Steel Coil
ASTM A36 Galvalume Aluzinc Roofing Prepainted Steel Coil
ASTM A36 Galvalume Aluzinc Roofing Prepainted Steel Coil
ASTM A36 Galvalume Aluzinc Roofing Prepainted Steel Coil
ASTM A36 Galvalume Aluzinc Roofing Prepainted Steel Coil
ASTM A36 Galvalume Aluzinc Roofing Prepainted Steel Coil
ASTM A36 Galvalume Aluzinc Roofing Prepainted Steel Coil
ASTM A36 Galvalume Aluzinc Roofing Prepainted Steel Coil
ASTM A36 Galvalume Aluzinc Roofing Prepainted Steel Coil
Specifications
Brand Name :
DZSICO
Model Number :
0.12 - 1.2mm * 600 - 1250mm
Certification :
SGS | ISO | CE | BV
Place of Origin :
CHINA
MOQ :
25 Tons
Price :
25 - 499Tons = $700.00, 500 - 999Tons = $650.00, ≥1000 Tons = $580.00
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Ton/tons Galvalume Aluzinc Roofing Sheets Coils
Delivery Time :
1-10T - 7Days, 11-25T - 10Days, 26-100 - 10Days, > 100-To be negotiated
Packaging Details :
Standard Seaworthy Package Or As Customers Requirement
Standard :
AiSi, ASTM, bs, DIN, GB, JIS
Grade :
DX51D
Type :
Steel Coil, Galvalume Steel Sheet
Technique :
Hot Dipped
Application :
Door, Window, Building, Roofing Tile, House, Eilling
Special Use :
High-strength Steel Plate
Width :
600mm - 1250mm
Length :
Customers' Requirement
Tolerance :
±1%
Processing Service :
Bending, Welding, Decoiling, Punching, Cutting
Product Name :
AZ150 Galvalume Aluzinc Roofing Sheets
Zinc Coating :
30-275g / m2
Hardness :
55 - 65 HRC
Description

ASTM A36 AZ150 Galvalume Aluzinc Roofing Sheets Coils price, Hot Dipped

Galvanized steel is a welded steel sheet with hot-dip or electro-galvanized layers on the surface. It is widely used in construction, household appliances, vehicles, containers, and electromechanical industries.
What Is Electro-Galvanizing?
Electro-galvanizing is a process in which a layer of zinc is bonded to steel in order to protect against corrosion.Electro-galvanizing is a process in which a layer of zinc is bonded to steel in order to protect against corrosion.Electrogalvanized sheet is manufactured by electroplating a pure zinc coating on one or two sides of carbon steel sheet. This continuous electrolytic coating process can be used to apply the coating onto the surface of the steel sheet with an exceptionally uniform thickness.
Specifications
Standard AISI, ASTM, BS, DIN, GB, JIS
Thicknesses 0.4 -3 mm
Width 600-1800 mm
Zinc Coating 20-40g/m2
Length According to customer requirements
Grade EN 10152/DC01+ZE/DC03+ZE/DC04+ZE/DC05+ZE/DC06+ZE/DC07+ZE
MOQ 25 Tons
Productivity 3000 tons per month
Port Shanghai, Qingdao, Tianjin, Ningbo, Qinhuangdao

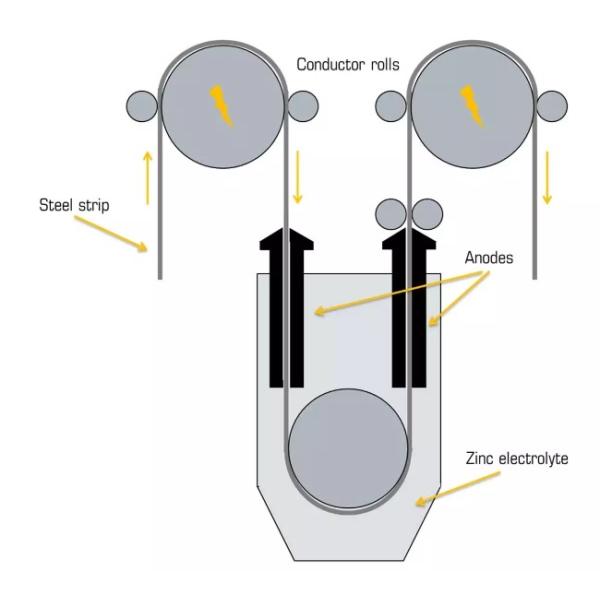

Production Process

ASTM A36 Galvalume Aluzinc Roofing Prepainted Steel Coil

Electrogalvanization is the use of electrolytic equipment to degrease and pickle the workpiece into a solution containing a zinc salt, and connect the negative electrode of the electrolytic equipment; place a zinc plate on the opposite side of the workpiece to connect the positive electrode of the electrolytic equipment, and turn on the power With the directional movement of the current from the positive electrode to the negative electrode, a layer of zinc will be deposited on the workpiece.
Main Features
1.Good corrosion resistance, fine and uniform combination, not easy to be corrosive gas or liquid into the interior.
2.Because zinc layer is relatively pure, it is not easy to be corroded in acid or alkali environment. Protect the steel body effectively for a long time.
3.After chromic acid passivation, it can be used in various colors. It can be selected according to customers’ preference. The galvanizing is beautiful and decorative.
4.After chromic acid passivation, it can be used in various colors. It can be selected according to customers’ preference. The galvanizing is beautiful and decorative.
The difference between electro galvanizing and hot galvanizing
1.There is a big difference in the amount of galvanizing between hot-dip galvanized sheet and electro-galvanized sheet. The amount of hot-dip galvanized sheet cannot be too small. Generally, the minimum is 50-60g / m2 on both sides, and the maximum is 600g / m2 . The galvanized layer of the electro galvanized sheet can be very thin, the minimum is 15g / m2.
2. Hot-dip galvanized sheet and electro-galvanized sheet are fundamentally different in the coating structure. There is a slightly brittle compound layer between the pure zinc coating of the hot-dip galvanized sheet and the steel strip substrate. When the pure zinc coating crystallizes, zinc flowers are mostly formed, and the coating is uniform and free of pores. The zinc atoms of the electro galvanized sheet layer are only deposited on the surface of the steel strip, and they are attached to the surface of the steel strip by physical action.

ASTM A36 Galvalume Aluzinc Roofing Prepainted Steel Coil
ASTM A36 Galvalume Aluzinc Roofing Prepainted Steel Coil

Guide For Ordering Products

Q1: How can I buy products in my country?
A1: Please send us an inquiry or e-mail, we will reply to you and send you a trade assurance order if you need.

Q2: How long does it take to get the product if I place an order
A2: A: For stock products, will make shipments in 5- 7 days after receiving deposit or receiving L/C; for products need new production for common materials, usually make shipments in 15-20 days; for products need new production for special and rare materials, usually need 30-40 days to make shipment.

Q3: How to make payment?
A3: First send us an inquiry, and we will reply with our quotation. If our price suits you, we will prepare proforma invoice with our banking detail.

Q4: Can you do customization & reproduction if I provide a photo?
A4: Yes
