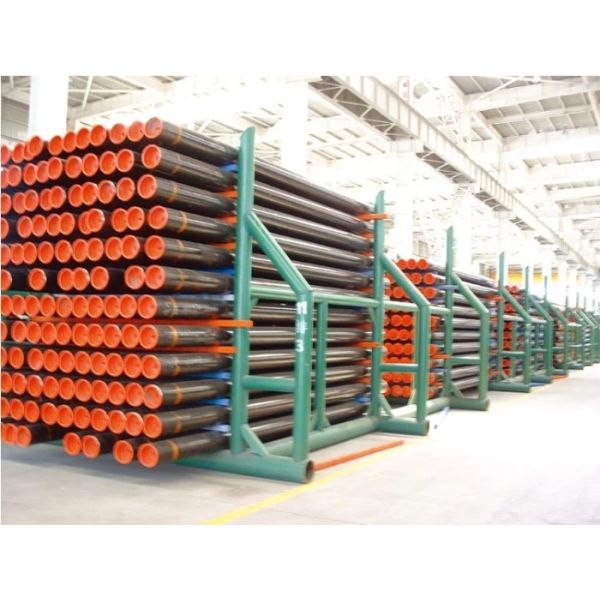

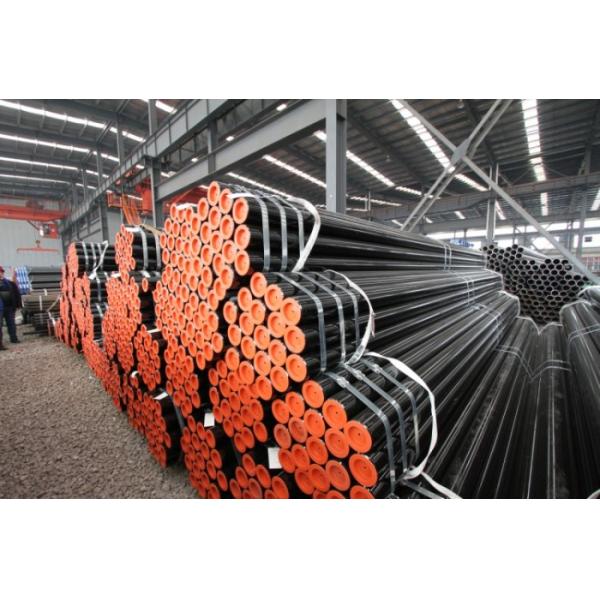

Astm Sa333 Grade 6 Schedule 40 Carbon Steel Seamless Pipe

Specifications

Brand Name :

DZSICO

Model Number :

ASTM A333

Certification :

ISO 9001:2008, SGS

Place of Origin :

CHINA

MOQ :

5 Tons

Price :

$635.00 - $785.00 / Ton

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability :

1000 Ton / Tons Per Month ASTM A333 GR. 6 Carbon Steel Line Pipes

Delivery Time :

25 Days

Packaging Details :

Seaworthy Standard Package

Grades :

A333 Gr 1, A333 Gr 3, A333 Gr 4, A333 Gr 6, A333 Gr 7, A333 Gr 8, A333 Gr 9, A333 Gr 10, A333 Gr 11 Seamless Pipes

Codes and Standards :

ANSI, ASME, ASTM, API, SAE, BS, AGA, AWWA, ISO, DIN

Dimensions :

ASME/ ANSI B36.10 / 19

Standard Size :

1/2” NB to 36” NB (LSAW, SSAW, HSAW)

Wall Thickness :

3 - 12mm

Schedules :

SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS

Producing techniques :

Seamless / ERW / Welded / Fabricated / CDW / EFW

Available Shapes :

Round, Half Round, Square, Rectangular or Custom shape

Length :

3 to Max18 Meters or custom

End :

Beveled End, Plain End, Treaded

Test Certificate :

EN 10204 3.1 B

Tolerance :

± 3%

Description

ASTM SA333 Grade 6 Schedule 40 Seamless Carbon Steel Pipe Suppliers For Low Temperature Service

# ASTM SA333 Grade 6 Carbon Steel Pipe General Information

Apart from alloy steel, the specification for A333 Grade 6 covers carbon steel pipes. We supply A333 Pipe Material in both a seamless and welded manner. This ASTM specified Carbon Steel A333 Grade 6 Seamless Pipes has been designed with the intention of being used in low temperature environments. The carbon based ASTM A333 gr6 Round Pipe can be manufactured by either a seamless or welding process without any addition of a filler metal to be used in the welding operation. According to the specification, all A333 seamless pipe and welded pipes are required to be treated to control their microstructure.

Tests such as impact tests, tensile tests, hydrostatic tests, and non-destructive electric tests are to be conducted on the LTCS ASTM A333 Gr 6 SMLS Pipe in accordance to the requirements of this particular specification. The use of ASME sa333 grade 6 Schedule 40 Pipe should be kept to a maximum temperature of about 570 Degree F. Pre – heating the sa333 gr6 Bevelled End Pipe is neither required nor is a post weld heat treatment for these pipes necessary. Under this specification, All seamless and welded pipes produced from API 5L A333 Gr 6 Material needs to be treated in such a manner that their microstructure can be controlled using any of the following methods i.e. - Normalizing the A333 Grade 60 pipes, Quenched and Tempered or Double Normalizing the SA333 gr 6 welded pipes following which the pipe is then to be tempered. Contact Aesteiron for a quick quote and learn more about the price for ASTM A333 Grade 6 Pipes.

# ASTM SA333 Grade 6 Carbon Steel Pipe Standard Stock Specifications

► ASTM A333 Gr 6 Pipe ► A333 Gr 6 Seamless Pipe ► A333 Gr 6 Welded Pipe

► SA 333 Gr 6 Carbon Steel Erw Pipe ► LTCS ASTM A333 Gr 6 SMLS Pipe

► ASME SA333 grade 6 Schedule 40 Pipe

# ASTM SA333 Grade 6 Carbon Steel Pipe pressure rating

Sizes (in)	OD (in)	Wall Thickness (in)	Inside Diameter (in)	SCH	Temperature (°F)
					100	200	300	400	500	600	650	700
					Allowable Stress (psi)
					23300	21300	20700	20000	18900	17300	16900	16800
					Maximum Allowable Pressure (psi)
1/2	0.84	0.109	0.622	401)	6747	6168	5994	5792	5473	5010	4894	4865
	0.84	0.147	0.546	802)	9483	8669	8424	8140	7692	7041	6878	6837
	0.84	0.188	0.464	160	12704	11614	11287	10905	10305	9433	9215	9160
	0.84	0.294	0.252		22653	20708	20125	19444	18375	16819	16431	16333
3/4	1.05	0.113	0.824	40	5487	5016	4875	4710	4451	4074	3980	3957
	1.05	0.154	0.742	80	7743	7079	6879	6647	6281	5749	5616	5583
	1.05	0.219	0.612	160	11666	10665	10364	10014	9463	8662	8462	8412
	1.05	0.308	0.434		17861	16328	15868	15331	14488	13261	12955	12878
1	1.315	0.133	1.049	40	5128	4688	4556	4402	4160	3808	3720	3698
	1.315	0.179	0.957	80	7118	6507	6324	6110	5774	5285	5163	5133
	1.315	0.25	0.815	160	10448	9552	9283	8969	8475	7758	7578	7534
	1.315	0.358	0.599		16219	14827	14409	13922	13156	12042	11764	11694
1 1/4	1.66	0.14	1.38	40	4214	3853	3744	3618	3419	3129	3057	3039
	1.66	0.191	1.278	80	5905	5398	5246	5069	4790	4385	4283	4258
	1.66	0.25	1.16	160	7979	7295	7089	6849	6473	5925	5788	5753
	1.66	0.382	0.896		13143	12015	11677	11282	10661	9759	9533	9477
1 1/2	1.9	0.145	1.61	40	3788	3462	3365	3251	3072	2812	2747	2731
	1.9	0.2	1.5	80	5356	4897	4759	4598	4345	3977	3885	3862
	1.9	0.281	1.338	160	7817	7146	6944	6710	6341	5804	5670	5636
	1.9	0.4	1.1		11797	10785	10481	10127	9570	8759	8557	8506
2	2.375	0.109	2.157	10	2220	2030	1972	1906	1801	1648	1610	1601
	2.375	0.154	2.067	40	3187	2913	2831	2736	2585	2366	2312	2298
	2.375	0.218	1.939	80	4616	4220	4101	3963	3745	3428	3348	3329
	2.375	0.25	1.875		5356	4897	4759	4598	4345	3977	3885	3862
	2.375	0.281	1.813		6090	5567	5410	5227	4940	4522	4417	4391
	2.375	0.344	1.687	160	7634	6979	6782	6553	6193	5668	5537	5505
	2.375	0.436	1.503		10027	9167	8908	8607	8134	7445	7273	7230
2 1/2	2.875	0.12	2.635	10	2012	1840	1788	1727	1632	1494	1460	1451
	2.875	0.203	2.469	40	3487	3188	3098	2993	2829	2589	2529	2514
	2.875	0.216	2.443		3725	3405	3309	3197	3022	2766	2702	2686
	2.875	0.25	2.375		4355	3981	3869	3738	3533	3234	3159	3140
	2.875	0.276	2.323	80	4846	4430	4305	4159	3931	3598	3515	3494
	2.875	0.375	2.125	160	6786	6204	6029	5825	5505	5039	4922	4893
	2.875	0.552	1.771		10571	9664	9391	9074	8575	7849	7667	7622
3	3.5	0.12	3.26		1643	1502	1459	1410	1333	1220	1192	1184
	3.5	0.156	3.188		2154	1969	1913	1849	1747	1599	1562	1553
	3.5	0.172	3.156		2384	2179	2118	2046	1934	1770	1729	1719
	3.5	0.188	3.124		2615	2391	2324	2245	2122	1942	1897	1886
	3.5	0.216	3.068	40	3025	2766	2688	2597	2454	2246	2194	2181
	3.5	0.25	3		3530	3227	3136	3030	2864	2621	2561	2545
	3.5	0.281	2.938		3998	3655	3552	3432	3243	2969	2900	2883
	3.5	0.3	2.9	80	4288	3920	3810	3681	3479	3184	3110	3092
	3.5	0.438	2.624	160	6480	5924	5757	5563	5257	4812	4700	4673
	3.5	0.6	2.3		9258	8464	8225	7947	7510	6874	6715	6675
3 1/2	4	0.12	3.76	10	1432	1309	1273	1230	1162	1064	1039	1033
	4	0.226	3.548	140	2758	2521	2450	2367	2237	2047	2000	1988
	4	0.25	3.5		3066	2803	2724	2632	2487	2276	2224	2211
	4	0.281	3.438		3469	3171	3082	2977	2814	2575	2516	2501
	4	0.318	3.364	80	3956	3617	3515	3396	3209	2938	2870	2853
	4	0.636	2..728		8489	7761	7542	7287	6886	6303	6157	6121
4	4.5	0.12	4.26	10	1270	1161	1128	1090	1030	943	921	916
	4.5	0.156	4.188		1662	1519	1476	1426	1348	1234	1205	1198
	4.5	0.188	4.124		2014	1841	1789	1729	1634	1495	1461	1452
	4.5	0.203	4.094		2181	1994	1938	1872	1769	1619	1582	1572
	4.5	0.219	4.062		2360	2157	2096	2026	1914	1752	1712	1701
	4.5	0.237	4.026	40	2562	2342	2276	2199	2078	1902	1858	1847
	4.5	0.25	4		2709	2477	2407	2326	2198	2012	1965	1953
	4.5	0.281	3.938	60	3063	2800	2721	2629	2485	2274	2222	2208
	4.5	0.312	3.876		3421	3127	3039	2936	2775	2540	2481	2466
	4.5	0.337	3.826	80	3712	3394	3298	3186	3011	2756	2693	2677
	4.5	0.438	3.624	120	4919	4497	4370	4222	3990	3652	3568	3547
	4.5	0.531	3.438	160	6072	5551	5394	5212	4925	4508	4404	4378
	4.5	0.674	3.152		7930	7249	7045	6807	6432	5888	5752	5718
5	5.563	0.188	5.187		1619	1480	1438	1389	1313	1202	1174	1167
	5.563	0.219	5.125		1894	1732	1683	1626	1536	1406	1374	1366
	5.563	0.258	5.047	40	2244	2052	1994	1927	1821	1667	1628	1618
	5.563	0.281	5.001		2453	2242	2179	2106	1990	1821	1779	1769
	5.563	0.312	4.939		2736	2501	2431	2349	2220	2032	1985	1973
	5.563	0.344	4.875		3032	2771	2693	2602	2459	2251	2199	2186
	5.563	0.375	4.813	80	3320	3035	2950	2850	2693	2465	2408	2394
	5.563	0.5	4.563	120	4513	4126	4009	3874	3661	3351	3273	3254
	5.563	0.625	4.313	160	5753	5259	5111	4938	4666	4271	4172	4148
	5.563	0.75	4.063		7042	6438	6256	6045	5712	5229	5108	5078

1) STD (standard) = schedule 40
2) XS (extra strong) = schedule 80

List of A333 Pipes & Tubes used in oil & gas industry

Supplier of Carbon Steel A333 gr 6 Material for Oil & gas industries, manufacturer of ASTM A333 Pipe as per ASME B36.19/ B36.10 specification

Carbon Steel A333 Rectangular Pipes	SA 333 gr 6 Hollow Pipes
Large Diameter Seamless Carbon Steel A333 Grade 6 Pipe	Schedule 80 Seamless ASTM A333 Grade 6 Pipes
ASTM A333 Erw Pipes	ASTM A333 Gr 6 Carbon Steel Casing Pipes
Carbon Steel A333 Grade 6 Schedule 40 Pipes	ASME B36.19 LTCS ASTM A333 Gr 6 Pipes
ASTM A333 Gr.6 Carbon Steel Schedule 10 Pipes	ASTM A333 Grade 6 Double Wall Pipe
SA 333 gr 6 Efw Pipes	Epoxy lined Carbon Steel A333 Pipes
ASTM A333 Gr 6 Carbon Steel Round Pipes	PTFE lined ASTM A333 Gr 6 Carbon Steel Natural Gas Pipes
ASTM A333 Grade 6 Seamless Pipes	Seamless Black ASTM A333 Gr.6 Carbon Steel Pipes
Carbon Steel A333 Welded Pipes	SA 333 gr 6 Oval Pipes
LTCS ASTM A333 Gr 6 Drill Pipes	Carbon Steel A333 Grade 6 Grooved Pipes
ASTM A333 Grade 6 Square Pipes	ASTM A333 Gr.6 Carbon Steel Hydraulic Pipes
Epoxy Coated LTCS ASTM A333 Gr 6 Pipes	Cement lined ASTM A333 Grade 6 Pipes
Schedule 40 Seamless Carbon Steel A333 Pipes	Thin Wall Carbon Steel A333 Pipes

# ASTM SA333 Grade 6 Carbon Steel Pipe Equivalent Grades

	Former		New
Execution	Standard	Material	Standard	Material
Seamless	ASTM A333	GRADE 6	EN 10216-4	P265NL

# ASTM SA333 Grade 6 Carbon Steel Pipe equivalent piping products

ASTM A333 Grade	ASTM A333 Pipes	ASTM A333 Tube	ASTM A333 Fittings	ASTM A333 Flanges	ASTM A333 Bar	ASTM A333 Forgings	ASTM A333 EN	ASTM A333 Material
Low Temp C.S. Gr. 1	A333 GR. 1	A333 GR. 1	A420 WPL1/6	A350 LF2	A516	A350 LF2
Low Temp C.S. Gr. 3	A333 GR. 3	A333 GR. 3	A420 WPL3	A350 L3	A516	A350 LF3
Low Temp C.S. Gr. 6	A333 GR. 6	A333 GR. 6	A420 WPL6	A350 LF2	A516	A350 LF2	EN 10216-4	P265NL

# ASTM SA333 Grade 6 Carbon Steel Pipe standards

DIN	EN	BS	NFA	ASTM	ASME
DIN 17178 Grade FGP 28	EN P265NL Grade 10216-4	NFA A 36-2051) Grade A 42 AP	ASTM A333 Grade6	ASME SA 333 Grade 6	UNI C20

# ASTM SA333 Grade 6 Carbon Steel Pipe temperature range

Supplier of Carbon Steel A333 gr 6 Material for Oil & gas industries, manufacturer of ASTM A333 Pipe as per ASME B36.19/ B36.10 specification

Crade	The lowest temperature for strike test
Crade	°F	°C
SA 333 GR 1	-50	-45
SA 333 GR 3	-150	-100
SA 333 GR 4	-150	-100
SA 333 GR 6	-50	-45
SA 333 GR 7	-100	-75
SA 333 GR 8	-320	-195
SA 333 GR 9	-100	-75
SA 333 GR 10	-75	-60

# A333 Steel mill tolerance

Outside Diameter, inch	Tolerance, %
1/8≤OD≤2-1/2	+20.0/-12.5
3≤OD≤18, WT/OD≤5%	+22.5/-12.5
3≤OD≤18, WT/OD>5%	+15.0/-12.5
OD≥20, WT/OD≤5%	+22.5/-12.5
OD≥20, WT/OD>5%	+15.0/-12.5

# ASTM A333 Gr.6 Carbon Steel Pipe Chemical Composition Chart

	C(max)	Mn	P(max)	S(max)	Si	Ni
Grade 1	0.03	0.40 – 1.06	0.025	0.025
Grade 3	0.19	0.31 – 0.64	0.025	0.025	0.18 – 0.37	3.18 – 3.82
Grade 6	0.3	0.29 – 1.06	0.025	0.025	0.10 (min)

# SA 333 gr 6 Pipe Mechanical Properties Tensile Strength

ASTM A333 Grade 1
Minimum Yield	30,000 PSI
Minimum Tensile	55,000 PSI
ASTM A333 Grade 3
Minimum Yield	35,000 PSI
Minimum Tensile	65,000 PSI
ASTM A333 Grade 6
Minimum Yield	35,000 PSI
Minimum Tensile	60,000 PSI

Astm Sa333 Grade 6 Schedule 40 Carbon Steel Seamless Pipe

Why do you choose us?
1. Professional Export Experienced sales team Most of us have more than 15 years of exporting experience; We learnt more products knowledge.
Our goods with high quality and competitive price.
2. Small orders and cheap LCL fees Your each small order is our luck to serve you; Enough connections with suppliers who have large stock(pipes, sheets etc.)
Professional shipping company to suggest and offer you the cheapest LCL fees.
3. Fast delivery and short shipping schedule Once deposit reaches, we will arrange the products at the same day without delay; Professional purchasing team to find the best goods you need in the shortest time; Professional shipping company to arrange the shortest schedule to your destination.
There are many stock in our warehouse.(steel plate, steel sheet, steel pipe, steel tube, steel bar, etc.)
4. Best service When you not have purchasing plan, we can send you instant market information; When you plan to purchase, we will give a timely reply in the shortest time; When you finish purchasing, we will follow you for the products using effect timely.

We can provide free samples service.

1. Q: What's the MOQ?
A Generaily, the trail order will be accepted The MOQ can be confirmed according to the different products. For example, the MOQ of rebar will be 25 - 50MT the galvanized steel pipe will be 10MT the stainless steel pipe will 1-5MT.
2. Q: Do you have OEM service?
A: Yes. Variety of products size. quality and quantity can be customized accordina to vour need
3. Q: Could you support freę sample?
AYes We can supply FREE samples But the delivery charges will be covered by our customers.
4. Q: How about the delivery time?
AWithin 15-20davs after receiving the deposit or L / C at sight.
5. Q: How about the trade terms?
A: EXW, FOB, CFR, CIF will be accepted.
6. Q: How about your payment terms?
A30% TT in advance and the balance against of copy of BAL The irrevocable LIC at sight will be accepted.

Product tags

Send your message to this supplier

Message*

Email*

Phone or WhatsApp*

Name

Company

Please reply me within 24 hours.

Yes! I would like your verified suppliers matching service!

Send Now

Submission successful!

Astm Sa333 Grade 6 Schedule 40 Carbon Steel Seamless Pipe

Name: Astm Sa333 Grade 6 Schedule 40 Carbon Steel Seamless Pipe
Brand: DZSICO
Price: 635.00 USD

Ask Latest Price

Product Detail

Brand Name :

DZSICO

Model Number :

ASTM A333

Certification :

ISO 9001:2008, SGS

Place of Origin :

CHINA

MOQ :

5 Tons

Price :

$635.00 - $785.00 / Ton

Contact Supplier

DZ Iron Steel Group

Active Member

5 Years

shanghai, shanghai

Since 1999

Business Type :

Manufacturer, Distributor/Wholesaler, Agent, Importer, Exporter, Seller, Other

Main Products :

Stainless Steel Sheet Coil, Prepainted Steel Coil, Color Coated Steel Coil

Total Annual :

10,000,000-90,000,000

Employee Number :

550~1120

Certification Level :

Active Member

Discover similar products

Astm F138 316lvm Stainless Round Tube As Seamless Steel Pipe

Contact Now
Uns S31603 316l 4mm 3inch Seamless Steel Pipe

Contact Now
Copper 508mm 304 Stainless 0.2mm Seamless Steel Pipe

Contact Now
ERW Uns S31653 Type 316ln Stainless Steel Round Pipe

Contact Now
Astm A554 304 5.8m Length Seamless Stainless Steel Tube 1 X 4

Contact Now
Rectangular Astm 304l 3mm Seamless Steel Pipe

Contact Now
Sae Polished Surgical Grade 316 Seamless Tube

Contact Now
Uns S31635 Alloy 316ti Stainless Seamless Steel Pipe

Contact Now
Welded Astm A269 317l 10mm Steel Tube For Industry

Contact Now
Astm A269 6mo EFW Stainless Steel Round Tubing

Contact Now

Find Similar Products By Category:

Supplier Homepage Products Seamless Steel Pipe

MachineU China Products Minerals & Metallurgy Carbon Steel Steel Pipes Seamless Steel Pipes

carbon steel seamless pipe 1045

seamless steel pipe astm a135

st35.8 seamless carbon steel pipe

Astm Sa333 Grade 6 Schedule 40 Carbon Steel Seamless Pipe

DZ Iron Steel Group

Astm F138 316lvm Stainless Round Tube As Seamless Steel Pipe

Uns S31603 316l 4mm 3inch Seamless Steel Pipe

Copper 508mm 304 Stainless 0.2mm Seamless Steel Pipe

ERW Uns S31653 Type 316ln Stainless Steel Round Pipe

Astm A554 304 5.8m Length Seamless Stainless Steel Tube 1 X 4

Rectangular Astm 304l 3mm Seamless Steel Pipe

Sae Polished Surgical Grade 316 Seamless Tube

Uns S31635 Alloy 316ti Stainless Seamless Steel Pipe

Welded Astm A269 317l 10mm Steel Tube For Industry

Astm A269 6mo EFW Stainless Steel Round Tubing

Find Similar Products By Category:
