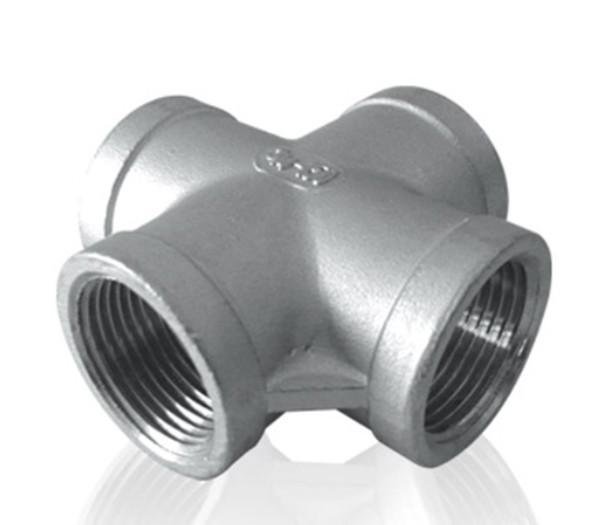

316 304 Stainless Steel Cross Pipe Fitting Thread Duplex 3/4 BSP
316 304 Stainless Steel Cross Pipe Fitting Thread Duplex 3/4 BSP
316 304 Stainless Steel Cross Pipe Fitting Thread Duplex 3/4 BSP
316 304 Stainless Steel Cross Pipe Fitting Thread Duplex 3/4 BSP
316 304 Stainless Steel Cross Pipe Fitting Thread Duplex 3/4 BSP
316 304 Stainless Steel Cross Pipe Fitting Thread Duplex 3/4 BSP
Specifications
Brand Name :
Rex Metal
Model Number :
LW4 Female Cross-B
Certification :
ISO9001
Place of Origin :
China
MOQ :
1PCS/1TON
Price :
According to the quantity/Can be negotiated
Payment Terms :
L/C, T/T
Supply Ability :
1000TON/MONTH
Delivery Time :
5-20days
Packaging Details :
Standard Seaworthy Package
Customized support :
OEM, ODM
Technics :
Forged
Shape :
Equal
Size :
1/8" - 2"
Working Temperature :
-325℉~800℉ (-198℃~426℃)
OEM service :
Available
Thread :
BSPP BSPT NPT
Body material :
316 S.S
Head Code :
Hexagon
Thread End Working Pressure :
6000 Psig (413 bar)
Description

CROSS Pipe Fittings Cross Stainless Steel 316 Duplex Stainless Steel Pipe Fitting

3/4 316 BSP Pipe Thread Fitting - Cross

Products Description
Specification: Forged Steel buttweld fittings are manufactured in accordance with ANSI / ASME B16.9.Butt weld fittings are available as elbows, tees, caps, reduces and out lets (olets). These fittings are the most common type of welded pipe fitting and are specified by nominal pipe size and pipe schedule. Buttweld fittings use seamless or welded pipe as the starting material and are formed (through multiple processes) to get the shape of elbows, tees and reducers etc.
1.Size range from 1/8" to 2".
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304/304L ,SS 316/316S.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.All pipe threads meet the requirements of ASME/ANSI B 1.20.1(1983) for tapered pipe threads (NPT).
7.Working pressures calculated in accordance with Power Piping Code ANSI B31.1, Refiner Piping Code ASME/ANSI B31.3 and section VIII of ASME Boiler & Pressure Vessel Code.
8.Available in wide variety of configurations.

-LW4 Female Cross
Order information
T
N
D
W
(HEX)
(NPT)
(in)
(mm)
(in)
(mm)
(in)
(mm)
-LW4-2
1/8
0.83
21.0
0.34
8.6
0.68
17.4
-LW4-4
1/4
0.94
24.0
0.45
11.4
0.82
20.8
-LW4-6
3/8
1.10
28.0
0.59
15.0
0.94
23.8
-LW4-8
1/2
1.18
30.0
0.73
18.5
1.06
27.0
-LW4-12
3/4
1.46
37.0
0.94
23.9
1.30
33.0
-LW4-16
1
1.55
39.0
1.17
29.7
1.50
38.0

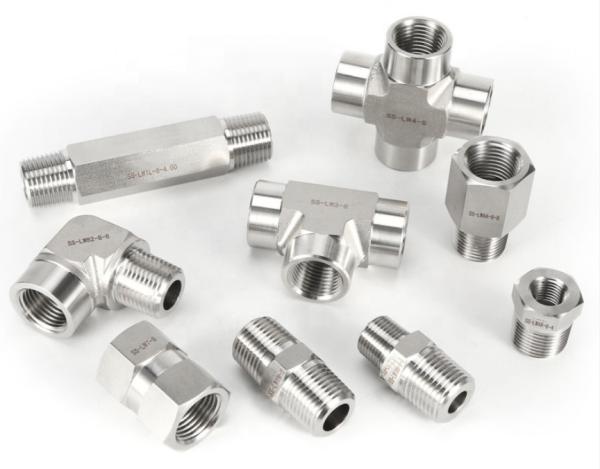

Sample Display
