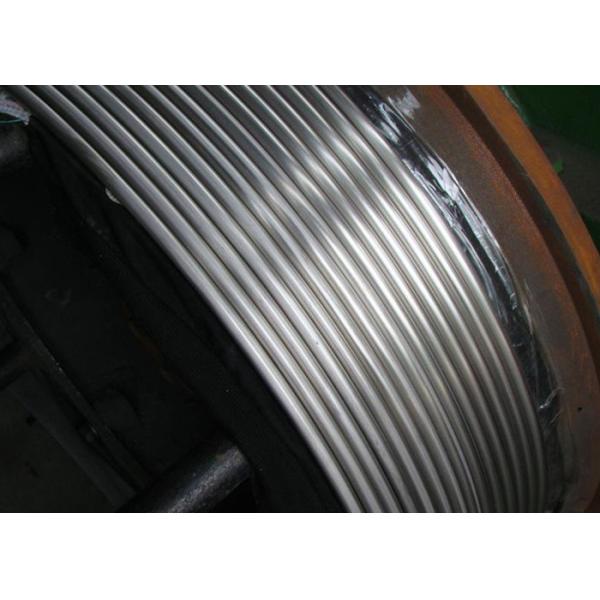

A213 1.65mm Stainless Steel Coiled Tubing For Heat Exchanger
A213 1.65mm Stainless Steel Coiled Tubing For Heat Exchanger
A213 1.65mm Stainless Steel Coiled Tubing For Heat Exchanger
A213 1.65mm Stainless Steel Coiled Tubing For Heat Exchanger
Specifications
Brand Name :
SPEZILLA
Model Number :
WLD-C
Certification :
ISO9001, TS16949, PED, AD2000
Place of Origin :
CHINA
MOQ :
500KGS
Price :
NEGOCIATION
Payment Terms :
T/T, L/C
Supply Ability :
100TONS/MONTH
Delivery Time :
Ex-Mill 15 - 30DAYS
Packaging Details :
WOODEN BOXED
Product Name :
SS coil tube
Specification :
ASTM A269,A213
Material :
TP316L
Size Range :
1/4'' - 1''
WT :
0.5-1.0mm
Length :
20ft-10000ft
Finishing Options :
Bright Annealing
Test Certificate :
EN10204 3.1
Packaging :
Wooden Boxed
Shape :
Round
Applicaton :
oil,heat exchanger
Description

A269 A213 1/4"x1.65mm Coil Tubes stainless steel coil tube TP316L

Stainless Steel Coil Tubes are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a Stainless Steel Coil Tube is manufactured according to current standards API, ASTM, and ASME. If required for special projects we can also supply large diameter Coil Tubes.

Coiled tubing is available in sizes arrange from outer diameter 0.125 inch (3.175 millimeters) to 1 inch (25.4 millimeters). Wall thickness is up to 0.165 inch (3 millimeters). Lengths up to 32800 feet (10,000 meters) are available for cost-effective umbilical manufacturing.

Traceability – All material is fully heat and lot traceable, allowing us to track products from raw material to finished goods.


100% testing for reliability and safer installation - Every foot ofTubing undergoes 100% hydrostatic testing and positive material identification.

Appliances

Beverage production

Boiler

Desalination

Feedwater heaters

Geothermal plants

Heat exchangers

Heat recovery steam generators

Instrumentation

Mechanical

Oil and gas

Pressure coil

Spezilla offers duplex stainless steel coiled tubing in sizes from 1/4 to 1 in. and wall thickness from 0.035 to 0.049 in. Our coiled tubing is available in lengths up to 5000 feet, which is up to 30% long than traditional offerings. In addition, Spezilla offers less than reel quantities of coiled tubing. Stainless steel tube straighteners make coiled tubing installation faster and easier.

1.Specification:Stainless steel coil tube

2.Type: welded or seamless.

3. Standard: ASTM A269, ASTM A249

4. Stainless steel coil tube OD: 6mm to 25.4MM

5.Length:600-3500MM or as per customer’s requirment. not welding

6. Wall thickness: 0.2mm to 2.0mm.

7. Tolerance: OD: +/-0.01mm; Thickness: +/-0.01%.

8.Surface: Bright or anneald

Typical Manufacturing Specifications:

EN10217-7

ASTM A249

ASTM A269

Stainless Steel 316 Coil Tubing Specification

Outer Diameter : 1/16” through 3/4"

Thickness : . 010" through .083”

Stainless Steel Seamless Coil Tubing Specifications : ASTM A213 (average wall) and ASTM A269

Stainless Steel Welded Coil Tubing Specifications : ASTM A249 and ASTM A269

The stainless steel coil tubing is widely used for industrial applications such as heat exchanger, boiler, petroleum, chemical, fertilizer, chemical, pharmaceutical, nuclear power, etc. It is also used as fluid transport system such as beer, milk, water systems, medical equipment, etc. Its other applications include mechanical structure, printing and dyeing, textile machinery, medical equipment, kitchen equipment, automobile and ship accessories, building and decoration, etc.

Stainless Steel Coiled Tubes Manufacturer, SS Coiled Tubing Exporter, SS 304/304L Coiled Tubes Pipes, SS 316L Coiled Tubes Pipes.

Features & Advantages:

Seamless stainless steel coil tubing can reduce the cost of installation due to:

- Higher rate of materials utilization
- Fewer collections
- System integrity can be improved much.
- Improve the safety of the pipeline system.

Description:

Item Code: SPW-C-316/316L
Tube OD.: 6.00MM - 25.40MM
Wall: 0.5MM - 1.65MM
Length: 3000MM
Material: 304/304L
Standard: ASTM A249
Finish: Bright Annealed.
Type: Welded & Coiled
Certification: ISO9001:2015
Mill Test Certificate: EN10204 3.1
Packing: Wooden Boxed

EN ASTM Item Name Finish
1.4404 TP316L 6.00 X 1.0 mm
TIG welded stainless steel coiled tubes, 1.4404, bright annealed, EN 10217-7 W2Rb		 Bright Annealed
1.4404 TP316L 8.00 X 1.0 mm
TIG welded stainless steel coiled tubes, 1.4404, bright annealed, EN 10217-7 W2Rb		 Bright Anneaeld
1.4404 TP316L 10.00 X 1.0 mm
TIG welded stainless steel coiled tubes, 1.4404, bright annealed, EN 10217-7 W2Rb		 Bright Annealed
1.4404 TP316L 12.0 X 1.0 mm
TIG welded stainless steel coiled tubes, 1.4404, bright annealed, EN 10217-7 W2Rb		 Bright Annealed
1.4404 TP316L 6.35 X 0.89 mm
TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269		 Bright Annealed
1.4404 TP316L 9.53 X 0.89 mm
TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269		 Bright Annealed
1.4404 TP316L 12.7 X 0.89 mm
TIG welded stainless steel coiled tubes, 1.4404, bright annealed, ASTM A249 A269		 Bright Annealed
1.4404 TP316L 6.35 X 1.24 mm
TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269		 Bright Annealed
1.4404 TP316L 9.53 X 1.24 mm
TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269		 Bright Annealed
1.4404 TP316L 12.7 X 1.24 mm
TIG welded tstainless steel ubes, TP316L, bright annealed, ASTM A249 A269		 Bright Annealed
1.4404 TP316L 6.3M X 1.65 mm
TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269		 Bright Annealed
1.4404 TP316L 9.53 X 1.65 mm
TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269		 Bright Annealed
1.4404 TP316L 12.7 X 1.65 mm
TIG welded stainless steel coiled tubes, TP316L, bright annealed, ASTM A249 A269		 Bright Annealed
