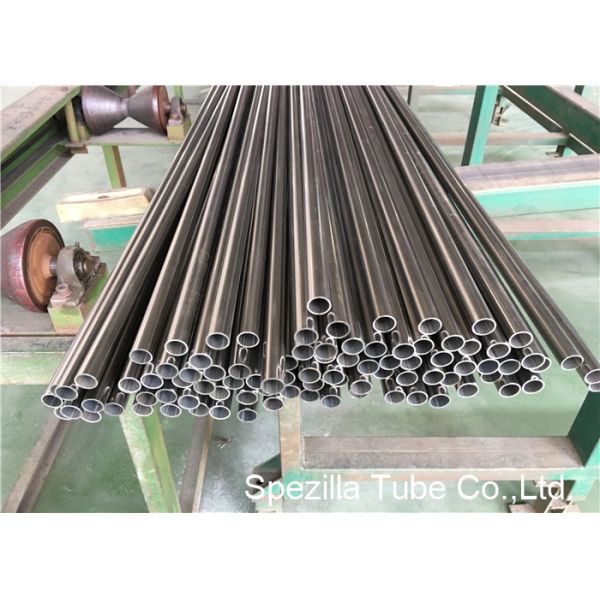

Ferritic / Martensitic welded stainless steel tubes ASTM A268 / A268M Length 6000MM
Ferritic / Martensitic welded stainless steel tubes ASTM A268 / A268M Length 6000MM
Ferritic / Martensitic welded stainless steel tubes ASTM A268 / A268M Length 6000MM
Ferritic / Martensitic welded stainless steel tubes ASTM A268 / A268M Length 6000MM
Ferritic / Martensitic welded stainless steel tubes ASTM A268 / A268M Length 6000MM
Ferritic / Martensitic welded stainless steel tubes ASTM A268 / A268M Length 6000MM
Ferritic / Martensitic welded stainless steel tubes ASTM A268 / A268M Length 6000MM
Ferritic / Martensitic welded stainless steel tubes ASTM A268 / A268M Length 6000MM
Specifications
Brand Name :
SPEZILLA
Model Number :
TP409, 409L, 430, 439, 441
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T or L/C
Supply Ability :
1000 TONS / MONTH
Delivery Time :
10 DAYS
Packaging Details :
PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Product Name :
Stainless Steel Tube
Standard :
ASTM A249
Materials No. :
TP409, 409L, 430, 439, 441
Application :
Heat Exchanger, Condenser
OD :
15.88MM - 101.6MM
WT :
0.5MM - 3.0MM
Length :
6000MM
Finish :
Annealed & Pickled
Shape :
Round
Package :
Wooden Case
Description

Ferritic / Martensitic welded stainless steel tubes ASTM A268 / A268M Length 6000MM

Specifications:

Specifications (ASTM/ASME) Ferritic and Martensitic Stainless Steel Tubing
AlloyUNS DesignationMaterial
Specification		Tubing
Specification		Pipe
Specification
409S40910A 240/SA-240A 268/SA-268---
409S40920A 240/SA-240A 268/SA-268---
409S40930A 240/SA-240A 268/SA-268---
AlloyUNS DesignationMaterial
Specification		Tubing
Specification		Pipe
Specification
439S43035A 240/SA-240A 268/SA-268---


Chemical Composition:

Chemical Composition (%) Ferritic and Martensitic Stainless Steel Tubing
Alloy409409409
UNS DesignationS40910S40920S40930
Carbon (C) max.0.0300.0300.030
Manganese (Mn) max.1.001.001.00
Phosphorus (P) max.0.0400.0400.040
Sulfur (S) max.0.0200.0200.020
Silicon (Si) max.1.001.001.00
Chromium (Cr)10.5 - 11.710.5 - 11.710.5 - 11.7
Nickel (Ni) max.0.500.500.50
Nitrogen (N) max.0.0300.0300.030
Titanium (Ti)6 x (C + N) min., 0.50 max.8 x (C + N) min., 0.15 - 0.500.05 max.
Columbium (Cb) max.0.170.10---
Titanium (Ti) plus
Columbium (Cb)		------0.08 + 8 x (C + N) min., 0.75 max.
Iron (Fe)BalanceBalanceBalance
Alloy439
UNS DesignationS43035
Carbon (C) max.0.030
Manganese (Mn) max.1.00
Phosphorus (P) max.0.040
Sulfur (S) max.0.030
Silicon (Si) max.1.00
Chromium (Cr)17.0 - 19.0
Nickel (Ni) max.0.50
Nitrogen (N) max.0.030
Aluminum (Al) max.0.15
Titanium (Ti)0.20 + 4 x (C + N) min., 1.10 max.
Iron (Fe)Balance


Mechanical Property:

Typical Physical & Mechanical Properties - Annealed Condition (Room Temperature)
Ferritic and Martensitic Stainless Steel Tubing
AlloyUNS DesignationMinimum Tensile Strength
Minimum Yield
Strength
0.2% Offset		Minimum Percent (%)
Elongation in
2 inches (50.8 mm)
(psi)(MPa)(psi)(MPa)
409S4091055,00038025,00017020
409S4092055,00038025,00017020
409S4093055,00038025,00017020

AlloyUNS DesignationMinimum Tensile Strength
Minimum Yield
Strength
0.2% Offset		Minimum Percent (%)
Elongation in
2 inches (50.8 mm)
(psi)(MPa)(psi)(MPa)
439S4303560,00041530,00020520
