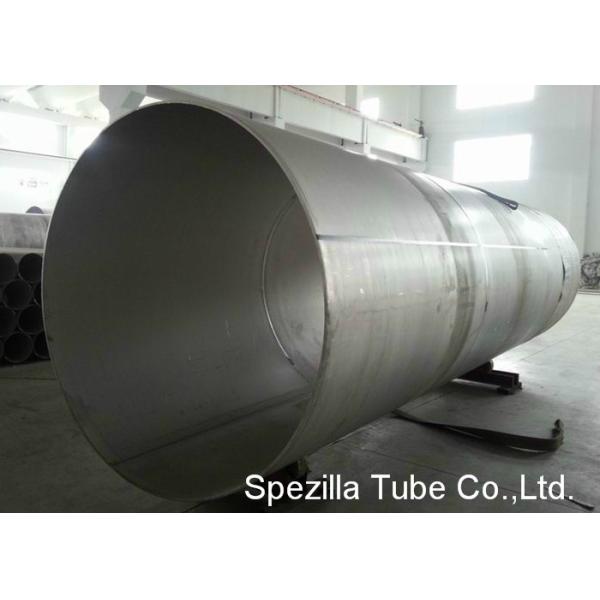

SUS 317 TP317L stainless welded pipe Sch5S-160S For High Temperature Service
SUS 317 TP317L stainless welded pipe Sch5S-160S For High Temperature Service
SUS 317 TP317L stainless welded pipe Sch5S-160S For High Temperature Service
SUS 317 TP317L stainless welded pipe Sch5S-160S For High Temperature Service
SUS 317 TP317L stainless welded pipe Sch5S-160S For High Temperature Service
SUS 317 TP317L stainless welded pipe Sch5S-160S For High Temperature Service
SUS 317 TP317L stainless welded pipe Sch5S-160S For High Temperature Service
SUS 317 TP317L stainless welded pipe Sch5S-160S For High Temperature Service
Specifications
Brand Name :
SPEZILLA
Model Number :
ASTM A312 Welded
Certification :
ISO9001:2008, PED 97/23/EC
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T or L/C
Supply Ability :
1000 TONS / MONTH
Delivery Time :
10 DAYS
Packaging Details :
PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Product Name :
Stainless Steel Welded Pipe
Standard :
ASTM A312
Materials :
TP317L
O.D. :
1/2'' - 24''
W.T. :
SCH5S - 80S
Length MAX :
12000MM Max.
Pipe Finish :
ANNEALED & PICKLED
Shape :
Round
Package :
Wooden Case
Appilcation :
Industry
Description

SUS 317 TP317L stainless welded pipe Sch5S-160S For High Temperature Service

Spezilla supplies welded stainless steel tube per ASTM A312 or ASTM A358 as well as rolled and welded. We supply common grades of stainless steel such as 304, 304L, 316, and 316L in standard pipe sizes and schedules, including Sch 5, Sch 10, Sch 40s and Sch 80s. We also cater to less common stainless welded pipe requirements with grades like 304H, 316H, 309S, 310S, 317L, 321H, 347H, 410, and 410S, in addition to Duplex and Nickel Alloy grades.

Finish and repair:


The surface of the welded stainless steel tube must be clean and free of scale and contaminating iron particles. It can be bright annealed but may be pickled, blasted or can be passivated.


Repair by welding. Permitted on <−20% of the weld seam length of welded stainless steel tube if >−NPS 6 and having a wall thickness >−0.200 in (mm). Tungsten-arc welding process is used for repairs, with filler metal to a grade as specified in A 312 (not repeated here). Weld repairs must be identified on the pipe and in test certificate.

Pipe Specifications - ASTM A312/A312M: welded austenitic stainless steel pipes.


This specification covers austenitic steel pipe intended for high temperature and general corrosive service.


H grades in the chemical composition table are specifically for high temperature service.

Grade: Austenite,Ferritic, Super-Ferritic, Duplex Stainless Steel

Standard:ASTM A249/A213/A269/A554/A270/A312/A268/A778/A789/A790

DIN11850/17456/17458/SMS/ISO2037/ISO1127/EN10217-7 EN10216

OD:3.175-1016mm,WT: 0.5-20mm,Length:1000-20000mm,Type: Seamless, Welded

Manufacture:


In order to comply with this specification welded stainless steel tube must be manufactured by an automatic welding process using no filler metal, or it must be a seamless pipe. If a welded stainless steel tube has a nominal pipe size greater than 14'' then it may be constructed from two longitudinal sections, and hence have two longitudinal welds. The pipe may be either hot finished or cold finished.

Mechnical Propertiies:

Grade UNS Designation Tensile Strength, min ksi [Mpa] Yield Strength, min ksi [Mpa]
TP304 S30400 75 [515] 30 [205]
TP304L S30403 70 [485] 25 [170]
TP304H S30409 75 [515] 30 [205]
TP316 S31600 75 [515] 30 [205]
TP316L S31603 70 [485] 25 [170]
TP316H S31609 75 [515] 30 [205]
TP310S S31008 75 [515] 30 [205]
TP310H S31009 75 [515] 30 [205]
TP321 S32100 75 [515] 30 [205]
TP321H S32109 75 [515] 30 [205]
TP347 S34700 75 [515] 30 [205]
TP347H S34709 75 [515] 30 [205]

Applications:

1. Heat Exchangers, Condensers & Pressure Vessels
2. Chemical & Petrochemical
3. Gas Industry
4. Power Generation
5. Pressure Vessels
6. Marine Equipments
7. Food & Beverage Processing
8. Automotive
9. Pulp & Paper

Specifications:

NPS ASTM A312 OD Tolerance
+ -
inch mm inch mm
1/8~1 1 / 2 >1 1 / 2 ~4 >4~8 >8~18 >18~26 >26~34 >34~48 1/64(0.015) 1/32(0.031) 1/16(0.062) 3/32(0.093) 1/8(0.125) 5/32(0.15
NPS ASTM A312 WT Tolerance ,%
+ -
1/8-2 1 /2 20.0 12.5
3~18,t/D≤5% 22.5 12.5
3~18,t/D>5% 15.0 12.5
≥20, welded 17.5 12.5
≥20, seamless,t/D≤5% 22.5 12.5
≥20,seamless,t/D>5% 15.0 12.5
