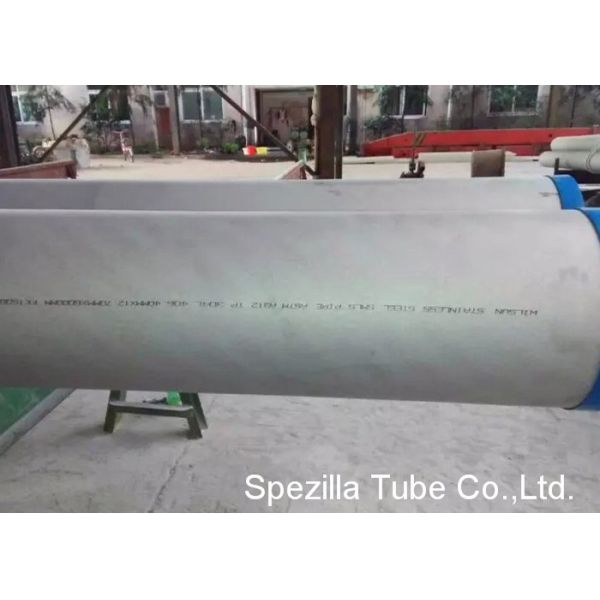

ASTM A312 TIG Polished 1 2 Inch large stainless steel Pipe Corrosion Resistance
ASTM A312 TIG Polished 1 2 Inch large stainless steel Pipe Corrosion Resistance
ASTM A312 TIG Polished 1 2 Inch large stainless steel Pipe Corrosion Resistance
ASTM A312 TIG Polished 1 2 Inch large stainless steel Pipe Corrosion Resistance
ASTM A312 TIG Polished 1 2 Inch large stainless steel Pipe Corrosion Resistance
ASTM A312 TIG Polished 1 2 Inch large stainless steel Pipe Corrosion Resistance
ASTM A312 TIG Polished 1 2 Inch large stainless steel Pipe Corrosion Resistance
ASTM A312 TIG Polished 1 2 Inch large stainless steel Pipe Corrosion Resistance
Specifications
Brand Name :
SPEZILLA
Model Number :
ASTM A312
Certification :
ISO9001:2008, PED 97/23/EC
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T or L/C
Supply Ability :
1000 TONS / MONTH
Delivery Time :
10 DAYS
Packaging Details :
PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Product Name :
SS Stainless Steel Pipe
Standard :
ASTM A312
Materials :
TP304,304L
O.D. :
1/2'' - 24''
W.T. :
SCH5S - 80S
Length MAX :
12000MM Max.
Pipe Finish :
Welded
Shape :
Round
Package :
Wooden Case/Bundle
Application :
Industry
Description

ASTM A312 TIG Polished 1 2 Inch large stainless steel Pipe Corrosion Resistance

SPEZILLA supplies welded pipe, per ASTM A 312, ASTM A 358 or as rolled and welded. We supply common grades of stainless such as 304/304L and 316/316L in standard pipe sizes and schedules including Sch 5, Sch 10, Sch 40s and Sch 80s. We also supply more challenging stainless welded pipe requirements including 304H, 316H, 309/S, 310/S, 317/L, 321/H, 347/H, 410, 410S, Duplex 2205, Duplex 2507 and many other grades of stainless, duplex or nickel alloys.

We can even supply material with wall thicknesses up to 3″ thick! Diameters sizes range from 1/8″ up to 96″. We specialize in quick delivery of non-standard welded pipe. We recently supplied a steel mill with 3 pieces of 11-1/2″ OD x .625″ Wall x 13’ Type 316/316L and delivered the product in 5 days to meet a shut-down requirement. All welded pipe products can be cut to size. Specialty testing, including X-ray, Hydro Testing and more can be supplied upon request.

NPS Designator

Outside Diameter in.

Schedule 5S in.

Schedule 10S in.

Schedule 40S in.

Schedule 80S in.
1/4 0.540 0.065 0.088 0.119
3/8 0.675 0.065 0.091 0.126
1/2 0.840 0.065 0.083 0.109 0.147
3/4 1.050 0.065 0.083 0.113 0.154
1.0 1.315 0.065 0.109 0.133 0.179
1 1/4 1.660 0.065 0.109 0.140 0.191
1 1/2 1.900 0.065 0.109 0.145 0.200
2 2.375 0.065 0.109 0.154 0.218
2 1/2 2.875 0.083 0.120 0.203 0.276
3 3.500 0.083 0.120 0.216 0.300
3 1/2 4.000 0.083 0.120 0.226 0.318
4 4.500 0.083 0.120 0.237 0.337
5 5.563 0.109 0.134 0.258 0.375
6 6.625 0.109 0.134 0.280 0.432
8 8.625 0.109 0.148 0.322 0.500
10 10.750 0.134 0.165 0.365 0.500
12 12.750 0.156 0.180 0.375

0.500

Processing for Stainless Steel Welded Pipe

Long Product Processing Services Overview

Bar & Structural Cutting

Products cut include Round Bar, Flat bar, Hex bar, Square bar, Tubing and Hollow Bar, Pipe, Angles, channels, Beams and Tees. Thickness range is 1/16″ to 28″ diameter

Production Cutting

Penn Stainless can provide production cutting for product diameters up to 4″. We utilize Amanda Production Equipment to achieve these precision cuts with tight tolerances.

Pipe Threading

Available thru 2″ in Diameter/All schedules

Tubular Polishing

Products polished included all tubular products, with OD & ID polishing available, Round Bar, Square Bar, Hex & Flat bar, Angles, Uneven Leg Angles, beams, and other shapes.

Welded Stainless Steel Pipe Tolerances

NPS Designator

Permissible Variations in Outside Diameter

Over In.

Under In.

1/8 to 1-1/2, incl

1/64 (0.015)

1/32 (0.031)

Over 1-1/2 to 4, incl

1/32 (0.031)

1/32 (0.031)

Over 4 to 8, incl

1/16 (0.062)

1/32 (0.031)

Over 8 to 18, incl

3/23 (0.093)

1/32 (0.031)

ASTM A312 TIG Polished 1 2 Inch large stainless steel Pipe Corrosion Resistance
