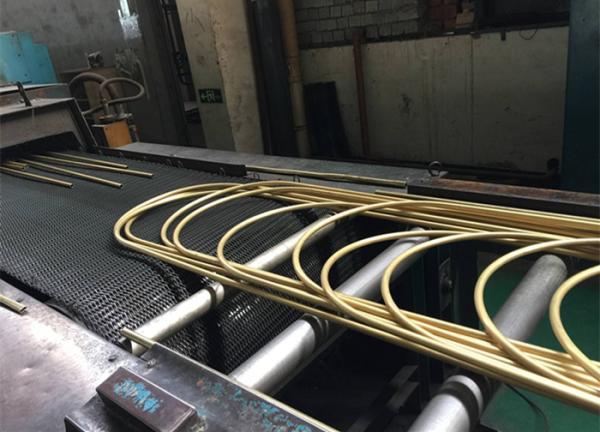

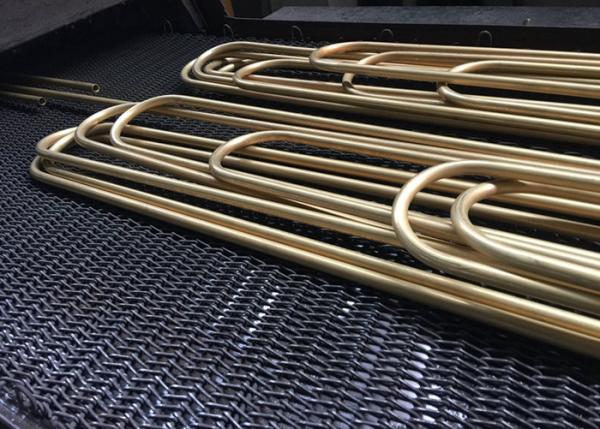

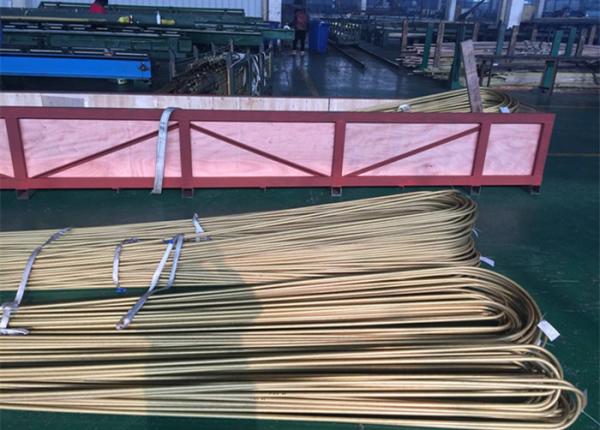

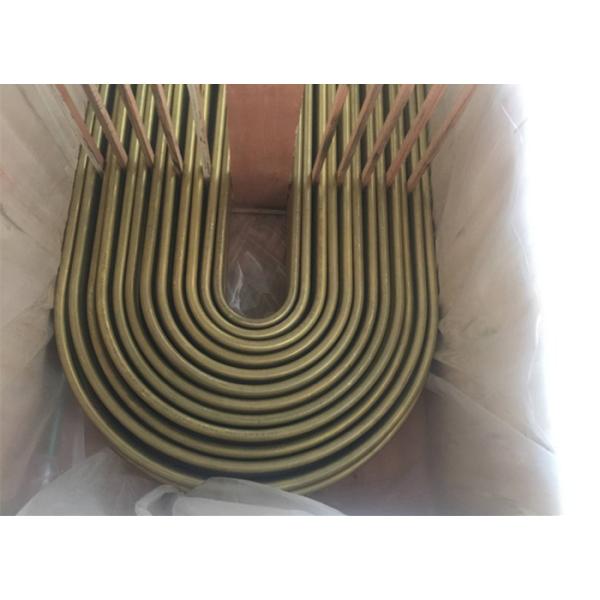

ASTM B111 C44300 Brass Seamless U Tube heat transfer tube U bend
ASTM B111 C44300 Brass Seamless U Tube heat transfer tube U bend
ASTM B111 C44300 Brass Seamless U Tube heat transfer tube U bend
ASTM B111 C44300 Brass Seamless U Tube heat transfer tube U bend
ASTM B111 C44300 Brass Seamless U Tube heat transfer tube U bend
ASTM B111 C44300 Brass Seamless U Tube heat transfer tube U bend
ASTM B111 C44300 Brass Seamless U Tube heat transfer tube U bend
ASTM B111 C44300 Brass Seamless U Tube heat transfer tube U bend
Specifications
Brand Name :
SPEZILLA
Model Number :
ASME SB111
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
100 TONS / MONTH
Delivery Time :
WITHIN 30 DAYS
Packaging Details :
WOODEN BOXED
Product Name :
Copper Nickel Tube
Standard :
ASTM B111 /ASME SB111
Tube Shape :
U Bend Tube
Manufacturing :
Cold Drawn
Materials No. :
C44300
OD :
1/2'' - 2''
WT :
0.035'' - 0.083''
Surface :
O61 Annealed
Package :
Wooden Case
Application :
Heat Exchanger
Description

ASTM B111 C44300 Brass Seamless U Tube heat transfer tube U bend

SPEZILLA is one of the eminent manufacturers and exporter of high Grade Admiralty Brass Tubes C44300. SPEZILLA offers a commendable range of Admiralty Brass Tubes C44300, we have a strong competitive edge for the prestigious clients with competitive price. Being prominent manufacturer and exporter of a broad array of Admiralty Brass Tubes C44300, we offer Admiralty Brass Tubes C44300 that are fabricated by our adroit professionals using supreme class raw materials as per the set industry norms.

C44300 Admiralty Brass
CuZn28Sn1As, CW706R
The copper based C44300 Admiralty Brass alloy is ideal for manufacturing heat exchanger tubes. The alloy is manufactured to cater engineering requirements and find applications mainly in oil and gas industries that also require its non corrosive properties.

Product Range
• Outside diameter : 5.0 mm(min) ~ 65 mm(max)
• Wall thickness : 0.5mm(Min.)
• Length : 27,000mm(Max.)
• Product capacity per month : 500 M.T.
• U-bend tube (smallest bending radius ≥ 2 x tube O.D.)
Application :
Steam Ejector, Intor and After Condensers, Grand steam condensers, Feed Water Evaporators for Petrochemical, Ship-building, Power plants and Desalination plants etc.

Additional Testing

  • Dye penetrant of 'U' bend area
  • PMI testing
  • Heat Treatment

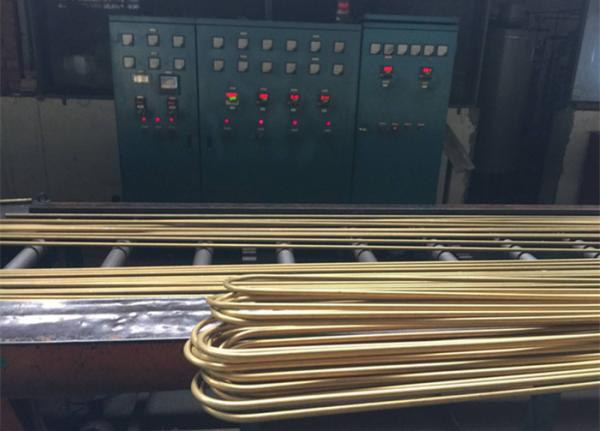

Heat Treatment

We are equipped to carry out heat treatment of bends plus a minimum 150mm of leg.

Heat Treatment Equipment

  • Heat treatment equipment is computer controlled with the added facility of data recording.
  • An argon protective atmopshere is used inside stainless and special alloy tubes during heat treatment.
  • We can provide all types of annealing; solution annealing and stress relieving

Inhibited Admiralty Brass tubes – C44300 - has good corrosion resistance and is specially used for tubing of steam condensers cooled with fresh, salt or brackish water.

UNS No. C44300 – BSI No. CZ111 ISO Name CuZn28Sn1
Chemical Comp. (%) Cu 70 ~ 73 / Sn 0.9 ~ 1.2 / Pb 0.07 / Fe 0.06 max / Zn rem / As 0.02 ~ 0.06
ASTM Spec. B 111, B 395
ASME Spec. SB 111, SB 395
Applications Condenser, Evaporator and Heat Exchanger tubes; Distiller tubing.
Temper O61 Annealed
Materials - U-Bent Tube
Carbon Steel SA 179 / A 179
Carbon Steel SA 210 / A 210
Carbon Steel SA 334 / A 334
Stainless Steel SA 213 / A 213
SA249 / A249
SA268 / A268
SA688 / A688
Duplex Stainless Steel SA 789 / A 789
Copper & Cu Alloys SB 111 / B 111
Titanium & Ti Alloys SB 338 / B 338
For different materials please contact our sales department.
Materials - U-Bent Tube
Carbon Steel SA 179 / A 179
Carbon Steel SA 210 / A 210
Carbon Steel SA 334 / A 334
Stainless Steel SA 213 / A 213
SA249 / A249
SA268 / A268
SA688 / A688
Duplex Stainless Steel SA 789 / A 789
Copper & Cu Alloys SB 111 / B 111
Titanium & Ti Alloys SB 338 / B 338
For different materials please contact our sales department.
