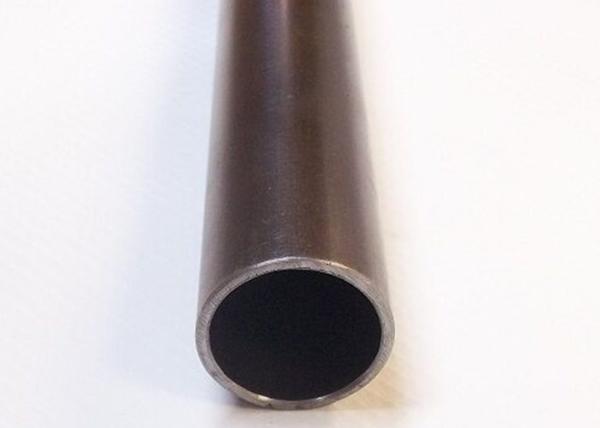

Seamless Cold Drawn Annealed Stainless Steel Tubing S41000 ASTM A268 TP410
Seamless Cold Drawn Annealed Stainless Steel Tubing S41000 ASTM A268 TP410
Seamless Cold Drawn Annealed Stainless Steel Tubing S41000 ASTM A268 TP410
Seamless Cold Drawn Annealed Stainless Steel Tubing S41000 ASTM A268 TP410
Seamless Cold Drawn Annealed Stainless Steel Tubing S41000 ASTM A268 TP410
Seamless Cold Drawn Annealed Stainless Steel Tubing S41000 ASTM A268 TP410
Seamless Cold Drawn Annealed Stainless Steel Tubing S41000 ASTM A268 TP410
Seamless Cold Drawn Annealed Stainless Steel Tubing S41000 ASTM A268 TP410
Specifications
Brand Name :
SPEZILLA
Model Number :
SMLS
Certification :
ISO9001, TS16949, PED, AD2000
Place of Origin :
CHINA
MOQ :
500KGS
Price :
NEGOCIATION
Payment Terms :
T/T, L/C
Supply Ability :
100TONS/MONTH
Delivery Time :
Ex-Mill 15 - 30DAYS
Packaging Details :
WOODEN BOXED
Material Grade :
UNS S41000
Size Range :
19.05mm
WT :
1.65mm
Length :
6096mm
Specification :
ASTM A268, ASME SA268
Finishing Options :
Pickling, Polishing, Custom Cutting
Test Certificate :
EN10204 3.1
Packaging :
Wooden Box, Bundled, Export Packaging Available
Application :
Boiler,Heat Exchanger
Shape :
Round
Product Name :
TP410 Ferritic Stainless Steel Tube
Description

ASTM A268 TP410 Ferritic Stainless Steel Tube, S41000 Ferritic Tube

TP410 is the basic and typical martensitic steel alloy. It has the high hardness with good ductility and a relative limited corrosion-resistant capability.

TP410 material does not have the nickel content and has a relative low material cost. Besides, it can replace some austenitic steel grades under some mild corrosion condition.

Ferritic Stainless Steel pipe ASTM A 268 TP410/TP410S

O.D.6-530mm W.T.0.5-40mm L max 24000mm

ASTM/ASME:A213/SA213 A249/SA249 A268 A312/SA312 A269 A270 A358 A376 A409 A511 A688 A789 A790 A803 A928 A544 A409 A632 A688 A778 A908
SB161 SB163 SB167 SB338 SB407 SB423 SB444 SB619 SB622 SB626 SB668 SB677 SB829
JIS:G3459 G3446 G3447 G3448 G3459 G3463 G3468
DIN:17455 17456 17457 17458 17459 2391 2462
EN:10216-5 10217-7
GOST9941　GOST9940
NFA NACE API　 ISO HAF

Quality Assurance:


Spezilla's seamless bright annealed stainless steel tubes are produced acc. to the following process and inspection to assure our quality:

1. Chemical Composition Analysis Test With 100% PMI.

2. Solution Annealing / Bright Annealed.

3. 100% Hydrostatic Test and 100% Eddy Current Test

4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.

5. Impact Test subject to Standard request.

6. Grain Size Test and Intergranular Corrosion Test.

7. Visual Test and Endoscope Test for Surface Quality Test

TP410 is a typical martensitic chromium-alloy steel grade. It does not have the nickel content and owns the following characteristic:
- Harding by heat treatment
- High hardness with good ductility
- Good corrosion resistance capability
- Good wear corrosion resistance
- High cold-deformation property

ASTM A268 Tp410 tube composition:

Grade: TP405 TP410 TP249 TP430 TP443 TP446-1 TP446-2 … TP409
UNS S40500 S41000 S42900 S43000 S44300 S44600 S44600 S40800 S40900
C, max 0.08 0.15 0.12 0.12 0.20 0.20 0.12 0.08 0.08
Mn,max 1.00 1.00 1.00 1.00 1.00 1.50 1.50 1.00 1.00
P, max 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.045 0.045
S, max 0.03 0.03 0.03 0.03 0.03 0.03 0.03 0.045 0.045
Si, max 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00
Ni 0.50max … … … 0.75max 0.75max 0.50max 0.80max 0.50max
Cr 11.5-14.5 11.5-13.5 14.0-16.0 16.0-18.0 18.0-23.0 23.0-27.0 23.0-27.0 11.5-13.0 10.5-11.7
Mo … … … … … … … … …
Al 0.10-0.30 … … … … … … … …
Cu … … … … 0.90-1.25 … … … …
N … … … … … 0.25 0.25 12xCmin 6xCmin
Ti … … … … … … … 1.10max 0.75max

Description:

Item Code: TP410
Tube OD.: 1/4'' - 2''
Wall: 0.028'' - 0.120''
Length: 20FT
Material: 410
Standard: ASTM A268 ASME SA268
Finish: Annealed & Pickled.
Type: Seamless Cold Drawn
Certification: ISO9001:2015
Mill Test Certificate: EN10204 3.1
Packing: Sleeved, Wooden Boxed

Chemical Composition
Min. % Max %
Carbon 0.09 0.15
Silicon 0 1.00
Manganese 0 1.00
*Nickel 0 1.00
Chromium 11.50 13.50
Phosphorous 0 0.04
Sulphur 0 0.03
*Nickel additional option

Typical Mechanical Properties At Room Temperature - Hardened By Oil Quench at 1010oC and Tempered as Indicated
Temperature oC 250 370 480 540 590 650
Tensile Strengt Mpa 1350 1295 1300 690 830 730
0.2% Yield Strength Mpa 1095 1070 1020 915 725 630
Elongation in 50mm % 17 17 18 19 20 21
Impact Charpy J 76 66 *38 *33 52 95
Hardness HB 400 400 400 285 248 223
Rc 43 43 43 30 24 20

Available Tube Product Forms:

Straight.


Coiled.

Typical Applications:

Used for parts requiring a combination of good strength and toughness, plus reasonable corrosion resistance. Typical applications are: Bolts, Bushings, Fasteners, Gas Turbine Parts, Mine Equipment, Pump Parts, Petrochemical Equipment, Steam Turbine Parts, Studs, Valve Parts etc.

Material magnetic in all conditions.



Typical Manufacturing Specifications:

ASTM A268

ASME SA268

Also individual customer specifications.
