Specifications
Brand Name :
SPEZILLA
Model Number :
A270-T
Certification :
ISO9001:2008, PED 97/23/EC
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T or L/C
Supply Ability :
1000 TONS / MONTH
Delivery Time :
10 DAYS
Packaging Details :

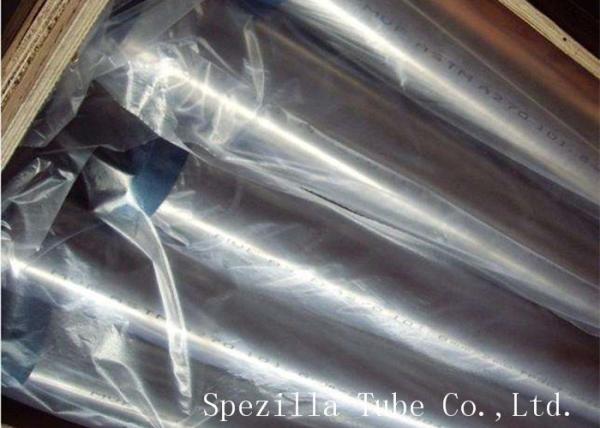

PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Product Name :
Stainless Steel Sanitary Tube
Materials :
TP316L/316 TP304/304L
Standard :
ASTM A270
O.D. :
1"
W.T. :
1.5mm
Length :
20ft
Pipe Finish :
Matte Polished
Shape :
Round
Package :
Wooden Case
Application :
Food
Description

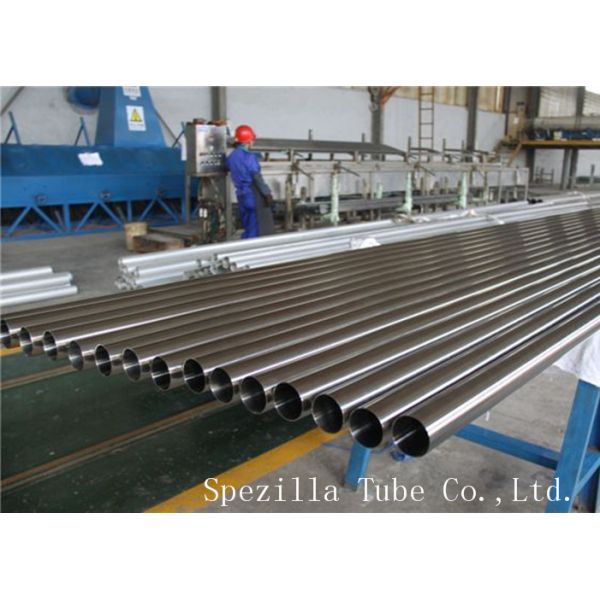

ASTM A270 Polished Tube SS 316L stainless steel sanitary tube

Quick Detail:

Spezilla's stainless steel sanitary pipe is manufactured in accordance with ASTM A270 sanitary standards. Our stainless steel sanitary pipe is made from cold rolled stainless steel strip whose chemical elements are specially controlled to enhance weldability. The weld bead is cold-worked to a full finished condition, resulting in a virtually undetectable longitudinal weld. Bright annealing to 1,900°F minimum follows in a controlled atmosphere to preserve maximum structural integrity. The tubes are then mechanically polished to a 180 grit (20 μ-in. Ra maximum) interior and 150 grit (32 μ-in. Ra maximum) exterior finish via Spezilla's state-of-the-art process. Stainless steel sanitary pipes are then line-stenciled with OD, wall, ASTM specifications, grade, and heat number. Price and weight is per foot.

ASME BPE and ASTM A270 specifications, this high quality tubing is 100% bore-scoped and mechanically polished on both the ID and OD. Finishing processes guarantee specific ID and OD Ra values for customers application, minimizing surface anomalies. Moreover, all A270-BPE series tubing is cleaned in a Class 100 Cleanroom (Fed 209E), significantly reducing customer inspection requirements prior to installation. The finest quality stainless steel materials are made to melt criteria and formed by the manufacturering processes to assure highest weld seam integrity, to meet the most demanding applications. Our tubing is available in 1/2" (12.7 mm) to 6" (152.40 mm) OD in 20ft. (6.1 m) lengths.

Applications:

For Dairy, Food, Beverage, and Other Sanitary Applications.

Available Sizes:


OD from 1/2'' to 8'' (12.7MM to 203.20MM)


Wall thickness: 0.065'' to 0.083'' (1.65MM to 2.11MM)

Length: 20ft ( 6100MM)

Materials Our sanitary tubing is available in alloys 304/304L and 316/316L. All 316/316L tube is supplied with a sulfur content of .005-.017% as specified in ASTM A270, Supp. S2.1.1. Available in A249, A269 and A270

Surface Polish:

Surface finish is 20 u-in Ra (0.5um) ID maximum, 30 u-in Ra (0.8um) OD maximum surface roughness measured per ASME/ANSI B46.1 with the profilo-meter reading at 90 degree to the lay. Other finishes available upon request.

Various types of polishing operations are commonly used to reduce the surface roughness of stainless steel sanitary tubes used in fluid piping & related components. As the name implies, mechanical polishing involves the application of physical force on abrasive media to remove the irregularities.

Surface Roughness: Bright Annealed, Mill Finish is available for both ID/OD, Mechanical Polish, Electro Polish needs to specify either ID/OD.

Size

(TUBE O.D.)

 GAUGE WALL LBS/FT

STOCK

304

STOCK

316L
1/2 16 .065 .3020 Y Y
3/4 16 .065 .4755 Y Y
1 18 .049 .4980 Y Y
1 16 .065 .6490 Y Y
1-1/2 18 .049 .7593 Y Y
1-1/2 16 .065 .9962 Y Y
2 18 .049 1.0210 Y Y
2 16 .065 1.3430 Y Y
2 1/2 16 .065 1.6900 Y Y
3 16 .065 2.0370 Y Y
4 14 .083 3.4720 Y Y
6 12 .109 6.9000 Y Y
8 12 .109 9.3000 Y Y

Dimensional Tolerances ASTM A270 Stainless Steel Sanitary Pipe
Size OD Nominal Wall Outside Diameter(MM) Length Wall
1/2''(12.7) 0.065''(1.65)/0.049''(1.25) +/-0.005(0.13) +1/8''(3.18)/-0 +/-10.0%
3/4''(19.05) 0.065''(1.65)/0.049''(1.25) +/-0.005(0.13) +1/8''(3.18)/-0 +/-10.0%
1''(25.4) 0.065''(1.65)/0.049''(1.25) +/-0.005(0.13) +1/8''(3.18)/-0 +/-10.0%
1-1/2''(38.1) 0.065''(1.65)/0.049''(1.25) +/-0.008(0.20) +1/8''(3.18)/-0 +/-10.0%
2''(50.8) 0.065''(1.65)/0.049''(1.25) +/-0.008(0.20) +1/8''(3.18)/-0 +/-10.0%
2-1/2''(63.5) 0.065''(1.65) +/-0.010(0.25) +1/8''(3.18)/-0 +/-10.0%
3''(76.2) 0.065''(1.65) +/-0.010(0.25) +1/8''(3.18)/-0 +/-10.0%
4''(101.6) 0.083''(2.11) +/-0.015(0.38) +1/8''(3.18)/-0 +/-10.0%
6''(152.4) 0.083''(2.11) +/-0.030(0.76) +3/16"(5.00)/-0 +/-10.0%
6''(152.4) 0.109''(2.77) +/-0.030(0.76) +3/16"(5.00)/-0 +/-10.0%
8''(203.2) 0.109''(2.77) +/-0.050(1.25) +3/16"(5.00)/-0 +/-10.0%
