Specifications
Brand Name :
SPEZILLA
Model Number :
SP-WLD-HP
Certification :
ISO9001:2015
Place of Origin :
CHINA
MOQ :
1PC
Price :
Negociation
Payment Terms :
L/C, T/T
Supply Ability :
100Ton/Month
Delivery Time :
7 days
Packaging Details :
Wooden Boxed
Materials :
316/316L
Specification :
ASTM A270. 3A, ASME BPE
Size :
38.10MM
Length :
6096mm
Thickness :
1.65mm
Surface :
0.8um, Mechnical Polished
Polish :
Mechanical Polish / EP
Product Name :
High Purity Welded Stainless Steel Tubing
Description

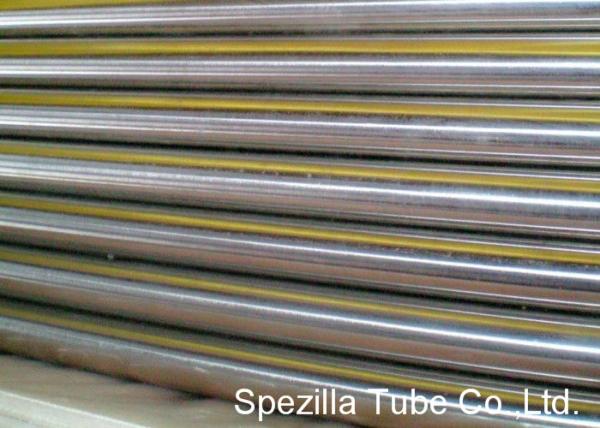

Polished Annealed High Purity Stainless Steel Tubing ID/OD 0.5um 1.5'' X 0.065''

Features:

Spezilla offers ASME BPE high purity stainless steel sanitary tubing that is manufactured to the stringent ASME BPE and ASTM A270 S2 specifications. This high quality tubing is 100% boroscoped and mechnically polished on both the ID and OD, certified to 20 u-in Ra (0.5um) inner diameter (ID) maximum, and 30 u-in Ra (0.8um) outer diameter (OD) maximum surface roughness. Surface finishes are measured per ASME/ANSI B46.1, with the profilometer reading at 90 degrees to major polish pattern. Our A270-BPE series tubing significantly reduces customer inspection requirements prior to installation by utilizing only the highest quality stainless steel materials. Spezilla offers industry leading stainless steel sanitary tubing along with technical expertise and unmatched service. We stock all standard ASME BPE tubings in size 1/2'' - 6'' in 20ft lengths.

Descriptions:

Item Code: SPS-A270-316L-0150-065-MP-BPE
Tube OD.: 1-1/2''
Wall: 16 Gauge (0.065'')
Length: 20'
OD Tolerance: +/-0.005'' / +/-0.13MM
WT Tolerance: +/-10%
Length Tolerance: +1/8'' / +3.18MM
Material: TP316L
Standard: ASME BPE / 3A / ASTM A270 S2
Finish: 20Ra ID / 32Ra OD
Polish: SF1 / Mechanical Polished
Type: SEAMLESS / WELDED
Certification: ASME BPE
Mill Test Certificate: EN10204 3.1
Packing: Sleeved, Ends Capped, Wooden Boxed


Chemical Compositions:

Elements TP316L (wt%)
C / Max. 0.035
Mn / Max 2.00
P / Max 0.045
S / Max 0.005 - 0.017
Si / Max 1.00
Ni 10.00 - 14.00
Cr 16.00 - 18.00
Mo N/A
Fe Bal.
Cu N/A
N N/A

Mechanical Properties:

Grade Tensile Strength
(Mpa)
Yield Strength
(Mpa)
Elongation
(%)
Hardness
(HRB)

TP316L

≥485

≥170

≥35

≤90

Quality Assurance:

Spezilla's ASME BPE high purity stainless steel sanitary tubing undergoes a rigorous quality inspection, including destructive and non-destructive examination, at the mill prior to shipment.

1. Chemical Composition: PMI Test

2. Mechanical Properties: Tensile Test, Hardsness Test


3. 100% Eddy Current, Air Under Water Test, Hydrostatic Test


4. Flange Test, Flattening Test, Reverse Flattening Test, Reverse Bending Test.

5. Dimensional Check: OD, WT, Straightness


6. Metallurgical Test

Applications:


Our ASME BPE stainless steel sanitary tubings are applicable to a wide range of manufacturing industries:


1. Food & Beverage


2. Dairy


3. Wine & Brewery


4. Cosmetic

5. Pharmacy

6. Biotechnology
