Polished SS Hydraulic Tubing High Precision Corrosion Resistance EN10204 3.1
Polished SS Hydraulic Tubing High Precision Corrosion Resistance EN10204 3.1
Polished SS Hydraulic Tubing High Precision Corrosion Resistance EN10204 3.1
Polished SS Hydraulic Tubing High Precision Corrosion Resistance EN10204 3.1
Polished SS Hydraulic Tubing High Precision Corrosion Resistance EN10204 3.1
Polished SS Hydraulic Tubing High Precision Corrosion Resistance EN10204 3.1
Polished SS Hydraulic Tubing High Precision Corrosion Resistance EN10204 3.1
Polished SS Hydraulic Tubing High Precision Corrosion Resistance EN10204 3.1
Specifications
Brand Name :
SPEZILLA
Model Number :
SP-SMLS-BA
Certification :
ISO9001:2015
Place of Origin :
CHINA
MOQ :
1PC
Price :
Negociation
Payment Terms :
L/C, T/T
Supply Ability :
100Ton/Month
Delivery Time :
7 days
Packaging Details :
Wooden Boxed
Materials :
TP316L
Specification :
ASTM A269/A213
Size :
6.00MM - 38.10MM
Length :
6096MM
Thickness :
0.50MM - 3.05MM
Surface :
Bright Annealed / BA
Quality :
EN10204 3.1
Product Name :

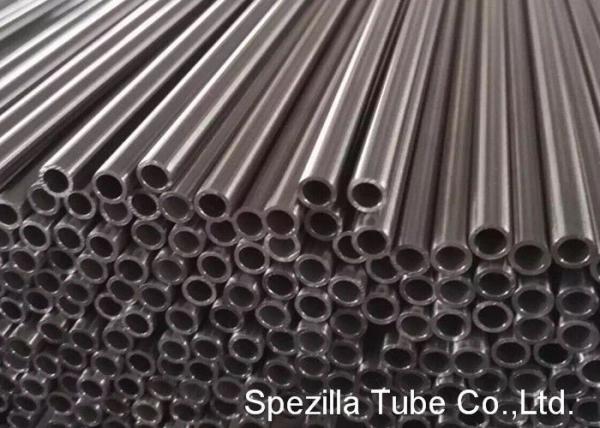

Bright Annealed Stainless Steel Tube
Description

Bright Annealed Stainless Steel Tubing ASTM A269 TP316/316L, 1'' X 0.065'' X 20FT

Available tube product forms


Straight


Coiled


Seamless


Seam welded and cold redrawn


Seam welded, cold redrawn and annealed


Typical Applications:


Moisture seperator reheaters


Feedwater tubes


Stator bars


Heat exchangers

Features:

1. Dual Certified Austenitic 316/316L Stainless Steel

2. Annealed Instrumentation Grade Tubing

3. Complies to / Exceeds ASTM A269 Standard

4. Chemically Cleaned and Passivated

5. Available in sizes from 1/4” to 1-1/2” OD

6. Metric Sizes Available

7. Minimum 2.5% Molybdenum by Weight

8. Good resistance to attacks in acidic environments

9. Good resistance to pitting in neutral chloride-bearing solutions

10. Good resistance to Stress Corrosion Cracking

11. Good weldability

12. Surface - Polished to 320 grit

13. Hardness of not more than Rb 90

Instrumentation Tubing / Hydraulic Tubing Size Range:


Outside Diameter: 1/16” through 4.00”


Wall Thickness: .010” through .250”



Welded Stainless Steel Bright Annealed Tubing:


Governing Production Specifications – ASTM A249 and ASTM A269



Seamless Stainless Steel Bright Annealed Tubing:


Governing Production Specifications – ASTM A213 (average wall) and ASTM A269

Specification:

Chemical Composition (%) Cr Ni C Mo Si P S
T304/L 18.0 – 20.0 8.0 – 12.0 0.03 (max) – 1.0 (max) 0.045 (max) .030 (max
T316/L 16.0 – 18.0 10.0 – 14.0 0.03 (max) 2.0 – 3.0 1.0 (max) 0.045 (max) .030 (max)

Description OD (mm) Wall Thickness (mm) Bar Available Lengths
6 x 1 mm 6 mm 1 mm 428 3 Metre & 6 Metre Lengths
6 x 1.5 mm 6 mm 1.5 mm 627 3 Metre & 6 Metre Lengths
6 x 2 mm 6 mm 2 mm 942 3 Metre Lengths
8 x 1 mm 8 mm 1 mm 321 3 Metre & 6 Metre Lengths
8 x 1.5 mm 8 mm 1.5 mm 472 3 Metre & 6 Metre Lengths
8 x 2 mm 8 mm 2 mm 706 3 Metre Lengths
10 x 1 mm 10 mm 1 mm 257 3 Metre & 6 Metre Lengths
10 x 1.5 mm 10 mm 1.5 mm 385 3 Metre & 6 Metre Lengths
10 x 2 mm 10 mm 2 mm 564 3 Metre Lengths
12 x 1 mm 12 mm 1 mm 210 3 Metre Lengths
12 x 1.5 mm 12 mm 1.5 mm 321 3 Metre & 6 Metre Lengths
12 x 2 mm 12 mm 2 mm 420 3 Metre Lengths
15 x 1 mm 15 mm 1 mm 200 3 Metre Lengths
15 x 1.5 mm 15 mm 1.5 mm 257 3 Metre & 6 Metre Lengths
15 x 2 mm 15 mm 2 mm 376 3 Metre Lengths
16 x 1.5 mm 16 mm 1.5 mm 235 3 Metre & 6 Metre Lengths
16 x 2 mm 16 mm 2 mm 321 3 Metre Lengths
18 x 1.5 mm 18 mm 1.5 mm 235 3 Metre Lengths
18 x 2 mm 18 mm 2 mm 314 3 Metre Lengths
20 x 1.5 mm 20 mm 1.5 mm 212 3 Metre Lengths
20 x 2 mm 20 mm 2 mm 257 3 Metre & 6 Metre Lengths
20 x 3 mm 20 mm 3 mm 424 3 Metre Lengths
22 x 1.5 mm 22 mm 1.5 mm 193 3 Metre Lengths
22 x 2 mm 22 mm 2 mm 256 3 Metre Lengths
25 x 1.5 mm 25 mm 1.5 mm 169 3 Metre & 6 Metre Lengths
25 x 2 mm 25 mm 2 mm 226 3 Metre Lengths
25 x 2.5 mm 25 mm 2.5 mm 210 3 Metre Lengths
25 x 3 mm 25 mm 3 mm 339 3 Metre Lengths
28 x 2 mm 28 mm 2 mm 201 3 Metre Lengths
30 x 3 mm 30 mm 3 mm 257 3 Metre & 6 Metre Lengths
35 x 3 mm 35 mm 3 mm 242 3 Metre Lengths
42 x 3 mm 42 mm 3 mm 201 3 Metre Lengths

Polished SS Hydraulic Tubing High Precision Corrosion Resistance EN10204 3.1
