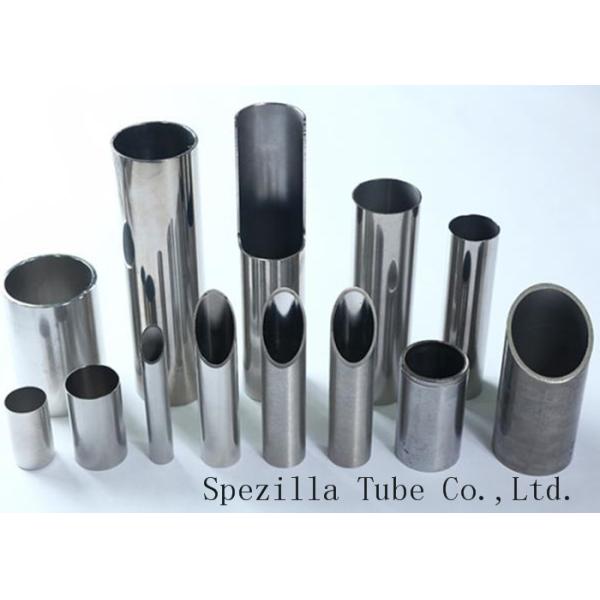

High Strength 32mm stainless steel tube Polished DIN EN 10357 1.4404 1X0.065X20ft
High Strength 32mm stainless steel tube Polished DIN EN 10357 1.4404 1X0.065X20ft
High Strength 32mm stainless steel tube Polished DIN EN 10357 1.4404 1X0.065X20ft
High Strength 32mm stainless steel tube Polished DIN EN 10357 1.4404 1X0.065X20ft
High Strength 32mm stainless steel tube Polished DIN EN 10357 1.4404 1X0.065X20ft
High Strength 32mm stainless steel tube Polished DIN EN 10357 1.4404 1X0.065X20ft
High Strength 32mm stainless steel tube Polished DIN EN 10357 1.4404 1X0.065X20ft
High Strength 32mm stainless steel tube Polished DIN EN 10357 1.4404 1X0.065X20ft
Specifications
Brand Name :
SPEZILLA
Model Number :
EN 10357
Certification :
ISO9001:2008, PED 97/23/EC
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T or L/C
Supply Ability :
1000 TONS / MONTH
Delivery Time :
10 DAYS
Packaging Details :
PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP
Product Name :
Stainless Steel Tube
Standard :
EN10357
Materials :
1.4404
O.D. :
1"
W.T. :
0.065“”
Length :
20ft
Pipe Finish :
Polished
Shape :
Round
Package :
Wooden Case
Application :
Food
Description

High Strength 32mm stainless steel tube Polished DIN EN 10357 1.4404 1"X0.065"X20ft

SPEZILLA is leading manufacturer & suppliers of stainless steel seamless and welded tubing manufactured as per DIN EN 10357 ASTM A270 standards. It is certified to the requirements of DIN EN 10357 ASTM A270.

Stainless steel pipes DIN EN 10357

DIN EN 10357 - 2014 has been drawn up for welded pipes made of stainless steels for pipe line systems within the food industry, pharmaceutical and chemical industries.

Available Sizes:


OD from 1/2'' to 8'' (12.7MM to 203.20MM)


Wall thickness: 0.065'' to 0.083'' (1.65MM to 2.11MM)

Length: 20ft ( 6100MM)

DIN EN 10357 was developed for seam welded tubes made of stainless steel for pipeline systems in the food, pharmaceutical and chemical industries. DIN EN 10357 (2014-3) replaces DIN 11850 at the beginning of 2014. Fundamental changes to DIN 11850: - Tube series 1 and 2 have been replaced and supplemented by series A to D. - Series A replaces DIN series 2, series B replaces DIN series 1, series C corresponds to ISO and series D corresponds to OD and SMS. With regard to EN 10357 the following normative references must be provided: DIN EN 2768, DIN 11851, DIN 11852, DIN11853-1 to -3, DIN 11864-1 to -3, DIN 32676, DIN EN 10088-1, DIN EN 10088-2, DIN EN 10204, DIN EN ISO 1127, DIN EN 10217-7

Technical Data
Material 304 (1.4301) or 304L (1.4307)
316L (1.4404)
others on request
Dimensions DIN DN10 - DN200
Series A and series B
Dimensions ISO DN10 - DN200
Series C
Dimensions SMS and OD
 1" - 4"
Series D

Surface Characteristics
Inner surface Outer surface
CC

pickled W2(b) and passivated

Ra < 0.8 µm

area of weld seam Ra < 1.6 µm

 pickled W2(b) and passivated
CD

pickled W2(b) and passivated

Ra < 0.8 µm

area of weld seam Ra < 1.6 µm

ground

Ra < 1.0 µm
BC

annealed and pickled, or bright annealed, W2R(b), l1g or l2g

Ra < 0.8 µm

area of weld seam Ra < 1.6 µm

pickled and passivated or bright annealed

W2A(b), W2R(b), l1g or l2g
BD

annealed and pickled, or bright annealed, W2R(b), l1g or l2g

Ra < 0.8 µm

area of weld seam Ra < 1.6 µm

ground

Ra < 1.0 µm

Grades TP 304 TP 304L TP 316 TP 316L
C max 0.07 0.03 0.08 0.03
Mn max 2.00 2.00 2.00 2.00
P max 0.045 0.045 0.045 0.045
S max 0.03 0.03 0.03 0.03
Si max 0.75 0.75 0.75 0.75
Cr 17.5 -- 19.5 17.5 -- 19.5 16 -- 18 16 -- 18
Ni 8 -- 10.5 8 -- 12 10 -- 14 10 -- 14
N max 0.10 0.10 0.10 0.10
Mo -- -- 2.00-3.00 2.00-3.00

Size

(TUBE O.D.)

 GAUGE WALL LBS/FT

STOCK

304

STOCK

316L
1/2 16 .065 .3020 Y Y
3/4 16 .065 .4755 Y Y
1 18 .049 .4980 Y Y
1 16 .065 .6490 Y Y
1-1/2 18 .049 .7593 Y Y
1-1/2 16 .065 .9962 Y Y
2 18 .049 1.0210 Y Y
2 16 .065 1.3430 Y Y
2 1/2 16 .065 1.6900 Y Y
3 16 .065 2.0370 Y Y
4 14 .083 3.4720 Y Y
6 12 .109 6.9000 Y Y
8 12 .109 9.3000 Y Y

High Strength 32mm stainless steel tube Polished DIN EN 10357 1.4404 1
