Specifications
Brand Name :
SPEZILLA
Model Number :
WLD-S
Certification :
ISO9001, TS16949, PED, AD2000
Place of Origin :
CHINA
MOQ :
500KGS
Price :
NEGOCIATION
Payment Terms :
T/T, L/C
Supply Ability :
100TONS/MONTH
Delivery Time :
Ex-Mill 15 - 30DAYS
Packaging Details :
WOODEN BOXED
Material Grade :
TP316L
Size Range :
1'' - 10'' 25.40MM - 254.00MM
Specification :
3A ASTM A270
Finishing Options :
ID/OD Polished 320G/180G
Test Certificate :
EN10204 3.1
Packaging :
Wooden Boxed, End Capped
Product Name :
Sanitary Stainless Steel Tubing
Quality :
EN10204 3.1
Description

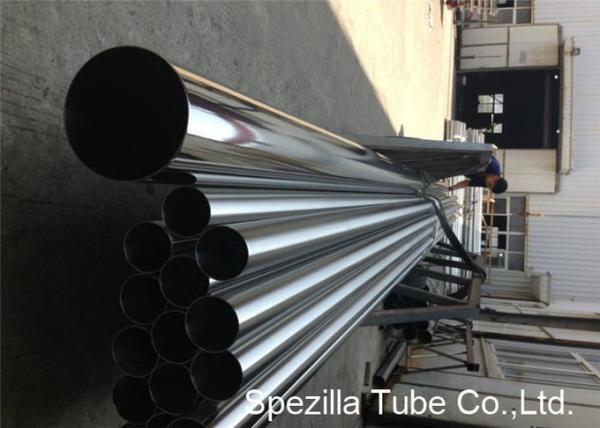

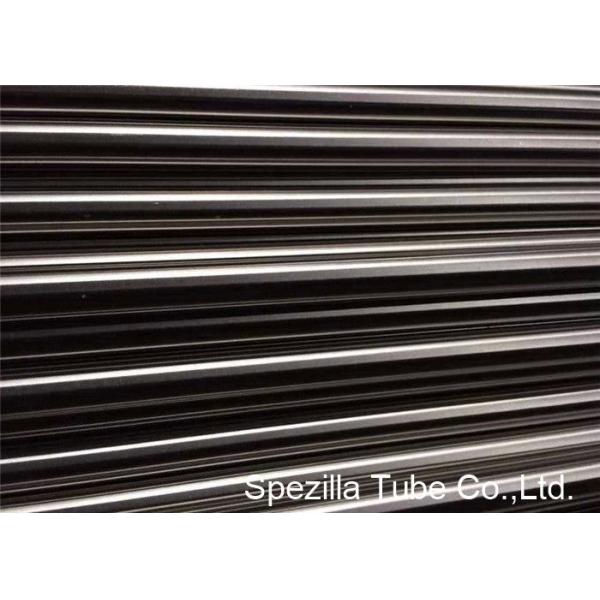

3A Stainless Steel Sanitary Tubing A269/A270 TP316L 1'' to 4'' Bright Annealed and Polished ID/OD

Spezilla's reputation for cleanliness and surface finish of welded stainless steel sanitary tube, combined with quality of service have made Spezilla's tubes an accepted standard in the sanitary, dairy, food, beverage and pharmaceutical industries.
Spezilla maintains a large inventory of welded stainless steel sanitary tube to meet your immediate needs. Our warehouse is able to quickly ship welded stainless steel sanitary tube in lengths up to 20 feet. Each tube order is processed promptly and packaged in tri-wall corrugated cartons equipped with wooded ends to protect each piece from damage.
Materials:
Welded stainless steel sanitary tube types 304/304L and 316/316L are available in sizes from 1/2" OD - 8" OD produced to ASTM specifications A249, A269, A270 or A778. Other diameters, specifications and lengths are available on special order. Finishes available range from Bright Annealed (mill) to 240 grit mechanical ID and OD.

Mechanical Tests:


To ensure the highest surface quality in all of our welded stainless steel sanitary tube, Spezilla routinely go beyond the requirements of ASTM A269 and A270 by performing the full battery of ASTM bend and deformation tests required by ASME SA249 as well as additional deformation tests developed by Spezilla. The tests, combined with specific raw material requirements, eddy current testing at the tube mill, 100% bore-scoping prior to mechanical polish, and tighter OD and wall tolerances allow us to provide a more consistent superior quality product to the marketplace.

Applications:

1. Beverage/Brewery, Food & Dairy

2. Pharmaceutical/Biopharmaceutical

Spezilla is a global supplier of stainless steel sanitary tube for the Brewery, Food, Dairy and Pharmaceutical Industries. Spezilla offers tubes from ½” to 8” OD in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra.

Description:

Item Code: SPW-S-316L
Tube OD.: 25.40MM - 101.60MM
Wall: 1.65MM - 2.11MM
Length: 6096MM. 20FT
Material: 316L
Standard: ASTM A270
Finish: Bright Annealed & ID/OD Polished.
Type: Welded & Polished
Certification: ISO9001:2015
Mill Test Certificate: EN10204 3.1
Packing: Wooden Boxed

Grade Carbon Silicon Maganese Phosphorus Sulphur Chromium Moly Nickel
C Si Mn P S Cr Mo Ni
Max. Max. Max. Max. Max.
304 0.08 0.75 2.00 0.045 0.03 18.00-20.00 N/A 8.00-10.50
304L 0.03 0.75 2.00 0.045 0.03 18.00-20.00 N/A 8.00-12.00
316 0.08 0.75 2.00 0.045 0.03 16.00-18.00 2.00-3.00 10.00-14.00
316L 0.03 0.75 2.00 0.045 0.03 16.00-18.00 2.00-3.00 10.00-14.00


Straight Length.


Typical Applications:

Our sanitary tube is ideal for the dairy food and beverage industries where the highest degree purity and cleanliness is essential. It is certified to the requirements of ASTM A270, 3A standards, and most user specifications.


Quality Assurance:

Spezilla's stainless steel sanitary tubes are produced acc. to the following process and inspection to assure our quality:

1. Chemical Composition Analysis Test With 100% PMI.

2. Solution Annealing / Bright Annealed.

3. 100% Hydrostatic Test and 100% Eddy Current Test

4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.

5. Impact Test subject to Standard request.

6. Grain Size Test and Intergranular Corrosion Test.

7. Visual Test and Endoscope Test for Surface Quality Test

Typical Manufacturing Specifications:

ASTM A270

ASTM A269


Also individual customer specifications.
