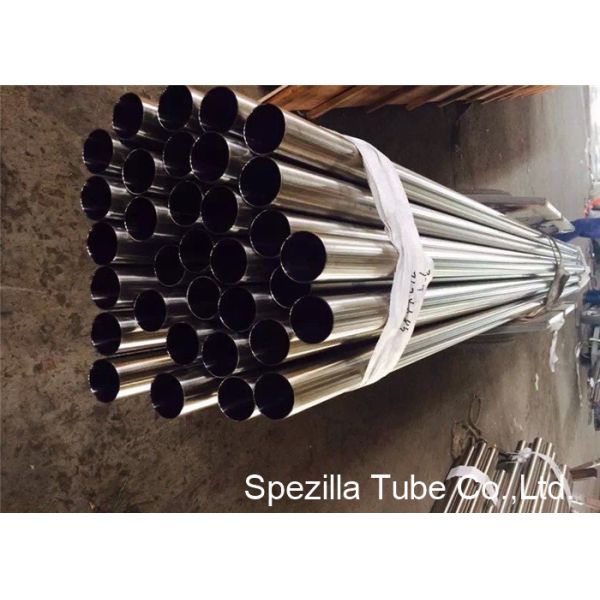

316L Polished honed tube for hydraulic cylinder Surface Roughness 240Grit
316L Polished honed tube for hydraulic cylinder Surface Roughness 240Grit
316L Polished honed tube for hydraulic cylinder Surface Roughness 240Grit
316L Polished honed tube for hydraulic cylinder Surface Roughness 240Grit
316L Polished honed tube for hydraulic cylinder Surface Roughness 240Grit
316L Polished honed tube for hydraulic cylinder Surface Roughness 240Grit
316L Polished honed tube for hydraulic cylinder Surface Roughness 240Grit
316L Polished honed tube for hydraulic cylinder Surface Roughness 240Grit
Specifications
Brand Name :
SPEZILLA
Model Number :
1/2'' - 8''
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100TONS / MONTH
Delivery Time :
7 WORKING DAYS
Packaging Details :
END CAPPED & POLY SLEEVED
Product Name :
Stainless Steel Tubing
Standard :
ASTM A270
Grades of Materials :
304/304L, 316L
Size Avaiable :
1/2'' - 8''
Wall Thickness :
0.065'' - 0.083''
Stock Length :
20'
Type :
Welded
Polish Method :
Mechanical
Shape :
Round
Package :
Wooden Case
Application :
Food
Description

316L Polished honed tube for hydraulic cylinder Surface Roughness 240Grit

Size Range of Stainless Steel Sanitary Tubing:


Outside Diameter: 1/2" – 8" ( 12.70mm - 203.20mm)


Wall Thickness: .065" and .083" ( 1.65mm - 2.11mm)

Manufacturing Specifications :

ASTM A270/A269/A249, SMS 3008, ISO 2037, BS 4825 etc.

Tube Surface Finish / Polishing:

1. Bright annealed (Mill Finish)

2. Inside bead rolled.

3. Inside polished 240Grit. 320Grit.

4. O.D. mechanically polished 180Grit. 240Grit. 320Grit


Maximum roughness measurement of 32 Ra O.D. and 20 Ra I.D.

Packaging of Exporting:


Each stainless steel sanitary tubing will be end capped and packed in wooden boxes for exporting delivery.

Raw Materials:

POSCO, Outokumpu, TISCO, BAOSTEEL etc.


Tube Weld Integrity Tests

Reverse Bend Test :


Flatten to 2 times material thickness.

Flare / Cone Test :


Minimum 1.21 tube diameter (60 deg included angle).

Flange Test :


Minimum 1.10-1.15 tube diameter.

Eddy Current Test :


All tube diameters are on-line eddy-current tested.

Surface roughness is measured per ASME/ANSI B46.1 requirements. These measurements are derived from four (4) readings taken at cross sections approximately 90 degrees apart.

Chemical Composition % (max.):

Stainless Steel Sanitary Tubing ASTM A270,

Chemical Composition
Carbon Manganese Phosphorus Sulphur Silicon Nickel Chromium Molybdenum
304 0.080 2.000 0.045 0.030 0.750 8.0-10.5 18.0-20.0 N/A
304L 0.030 2.000 0.045 0.030 0.750 8.0-12.0 18.0-20.0 N/A
316L 0.030 2.000 0.045 0.030 0.750 10.0-14.0 16.0-18.0 2.0-3.0

Size Available:

Stainless Steel Sanitary Tubing ASTM A270,

Size Available
O.D. / INCH O.D. / MM Wall Thickness / INCH Wall Thickness / MM Stock Lengths
1/2 12.7 .065 1.65 20 ft.
3/4 19.05 .065 1.65 20 ft.
1 25.4 .049 1.24 20 ft.
1 25.4 .065 1.65 20 ft.
1 1/2 38.1 .049 1.24 20 ft.
1 1/2 38.1 .065 1.65 20 ft.
2 50.8 .049 1.24 20 ft.
2 50.8 .065 1.65 20 ft.
2 1/2 63.5 .065 1.65 20 ft.
3 63.5 .065 1.65 20 ft.
4 101.6 .065 1.65 20 ft.
4 101.6 .083 2.11 20 ft.
6 152.4 .083 2.11 20 ft.
6 152.4 .109 2.77 20 ft.
8 203.2 .109 2.77 20 ft.

Markets & Applications:

Stainless steel sanitary tubings normally used for:


Food & Beverage

Dairy

Pharmaceutical

Biopharmaceutical

316L Polished honed tube for hydraulic cylinder Surface Roughness 240Grit
