Bright Annealed sanitary stainless tubing High Toughness Ra 0.8 For Chemical
Bright Annealed sanitary stainless tubing High Toughness Ra 0.8 For Chemical
Bright Annealed sanitary stainless tubing High Toughness Ra 0.8 For Chemical
Bright Annealed sanitary stainless tubing High Toughness Ra 0.8 For Chemical
Bright Annealed sanitary stainless tubing High Toughness Ra 0.8 For Chemical
Bright Annealed sanitary stainless tubing High Toughness Ra 0.8 For Chemical
Bright Annealed sanitary stainless tubing High Toughness Ra 0.8 For Chemical
Bright Annealed sanitary stainless tubing High Toughness Ra 0.8 For Chemical
Specifications
Brand Name :
SPEZILLA
Model Number :
50.8 X 1.5 X 6000MM
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100TONS / MONTH
Delivery Time :
7 WORKING DAYS
Packaging Details :
END CAPPED & POLY SLEEVED
Product Name :
Stainless Steel Tubing
Standard :
ASTM A270/ASME SA270
Grade :
304/304L, 316L
Polish :
OD & ID
Tube OD :
3/4'' - 6''
WT :
0.065'' - 0.083''
Tube Length :
20'
Surface Roughness :
Ra 0.8 MAX
Shape :
Round
Package :
Wooden Case
Application :
Food
Description

Bright Annealed sanitary stainless tubing High Toughness Ra 0.8 For Chemical

The demanding environments of the dairy, food, and beverage industries require a higher purity tubing than standard instrumentation grade. Stainless steel sanitary tubing offers a highly polished ID and OD to ensure cleanliness to prevent particulate entrapment. Spezilla a high quality stainless steel sanitary tubing featuring the superior fit and finish quality needed to ensure a problem-free system.

Markets:

Beverage

Pharmaceutical

Biopharmaceutical

Chemical

Petrochemical

Power generation

Size Range of Stainless Steel Sanitary Tubing:


Outside Diameter: 1/2" – 8"


Wall Thickness: .065" and .083"

Production Specifications :

ASTM A270/A269/A249

Surface Finish:

Bright annealed and mechanically polished.


Maximum roughness measurement of 32 Ra O.D. and 20 Ra I.D.

Packaging:

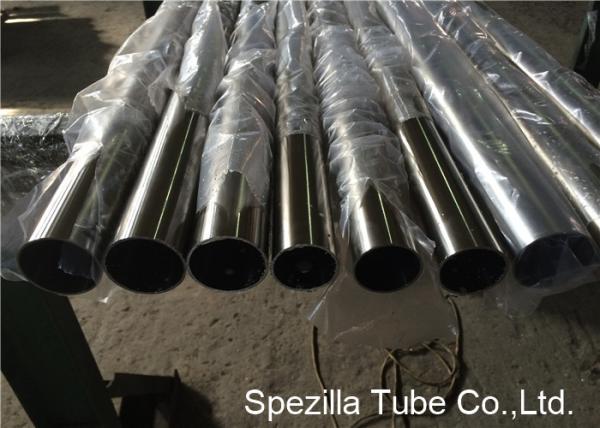

All stainless steel sanitary tubeings are shipped end capped and poly sleeved for exceptional protection.

Inspection & Tests:


Our stainless steel sanitary tubing undergoes a wide variety mechanical and non-destructive testing that meet or exceed ASTM A270/A269/A1016.

These tests include:

1. 100% Eddy current test

2. Metallographic Examination

3. Flaring test

4. Flattening test

5. Flange test

6. Reverse Bend Tests.

7. Surface roughness is measured per ASME/ANSI B46.1 requirements. These measurements are derived from four (4) readings taken at cross sections approximately 90 degrees apart.

Chemical Composition % (max.):

(C)
Carbon		 (Mn)
Manganese		 (P)
Phosphorus		 (S)
Sulphur		 (Si)
Silicon		 (Ni)
Nickel		 (Cr)
Chromium		 (Mo)
Molybdenum
304L 0.030 2.000 0.045 0.030 0.750 8.0-12.0 18.0-20.0 N/A
316L 0.030 2.000 0.045 0.030 0.750 10.0-14.0 16.0-18.0 2.0-3.0

O.D. Wall Thickness Stock Lengths
1/2 .065 20 ft.
3/4 .065 20 ft.
1 .049 20 ft.
1 .065 20 ft.
1 1/2 .049 20 ft.
1 1/2 .065 20 ft.
2 .049 20 ft.
2 .065 20 ft.
2 1/2 .065 20 ft.
3 .065 20 ft.
4 .065 20 ft.
4 .083 20 ft.
6 .083 20 ft.
6 .109 20 ft.
8 .109 20 ft.

Dimensional Tolerances (in.):

Outside Diameter (O.D.) Dimensional Tolerances
Over Under
1.000" and Smaller 0.005" 0.005"
Over 1" to 2" 0.008" 0.008"
Over 2" to 3" 0.010" 0.010"
Over 4" to < 5½", excl 0.015" 0.015"
5½" to 8", excl 0.030" 0.030"

8" to 12"

 0.050" 0.050"

Bright Annealed sanitary stainless tubing High Toughness Ra 0.8 For Chemical
