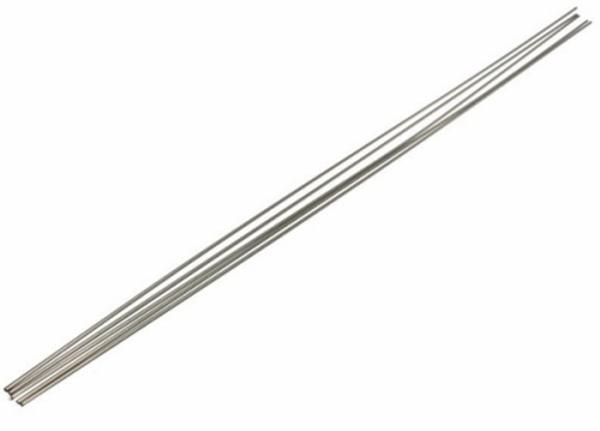

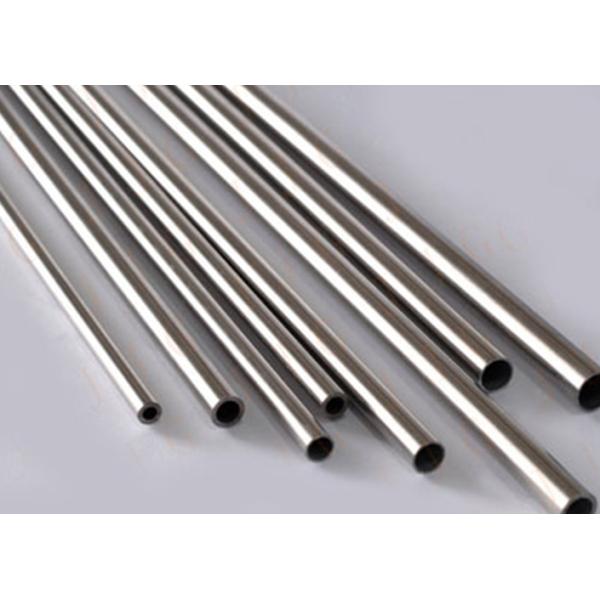

Small Diameters SS Capillary Tube For Medical High Temperature Resistance
Small Diameters SS Capillary Tube For Medical High Temperature Resistance
Small Diameters SS Capillary Tube For Medical High Temperature Resistance
Small Diameters SS Capillary Tube For Medical High Temperature Resistance
Small Diameters SS Capillary Tube For Medical High Temperature Resistance
Small Diameters SS Capillary Tube For Medical High Temperature Resistance
Small Diameters SS Capillary Tube For Medical High Temperature Resistance
Small Diameters SS Capillary Tube For Medical High Temperature Resistance
Specifications
Brand Name :
BWSS
Model Number :
TP304/TP316L/TP904L
Certification :
PED, ISO, GOST
Place of Origin :
CHINA
MOQ :
0.5-1TONS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 tons per month
Delivery Time :
20 days
Packaging Details :
Each in PVC bags, than in Bundles
Application :
Medical
Material Grade :
SS304 304L 316L
Outer Diameters :
1/4"-1/2"
Wall Thickness :
0.2-1.0mm
Length :
cut into pcs
Process Method :
Welded,precision rolled,cold drawn
Standard :
ASTM/AISI ,GB,JIS,DIN,EN,etc
Surface Finish :
180G, 320G, 400G Satin / Hairline,400G, 500G, 600G or 800G Mirror finish
Type :
High Precision Stainless Steel Tubing / Tube
Package :
Wooden Case
Description

SS304 304L 316L Capillary Tubes Small Diamters Tubes Used for Mecial

Capillary Pipes Tubes &OCTG, CRA (Corrosion-Resistant Alloy) Seamless Tubes,Stainless Steel , Super Duplex , Duplex , Welded & Seamless, Carbon Steel Seamless Pipes, Tubes, Capillary Pipes & ‘U’ Tubes for applications in oil & gas, LNG, Thermal & Nuclear Power Plants, Chemical Industries, Fertilizers Plants, (petro) chemical, shipbuilding, desalination, water treatment, energy industries, EPC and Pipes for General Engineering Purpose.

Stainless Steel Capillary Tube Size Range:


Gauge		 Outside Diameter Tolerance mm Regular Wall Thickness (RWT) mm Thin Wall Thickness mm Extra Thin Wall Thicknessmm Ultra Thin Wall Thickness mm
30 0.304 – 0.317 0.064 – 0.089
29 o.330 – 0.342 0.064 – 0.089
28 0.355 – 0.368 0.076 – 0.102
27 0.406 – 0.419 0.089 – 0.115 0.064 – 0.089
26 0.457 – 0.469 0.089 – 0.114
25 0.508 – 0.520 0.115 – 0.140 0.089 – 0.114
24 0.558 – 0.571 0.114 – 0.140 0.089 – 0.114 0.051 – 0.102
23 0.635 – 0.647 0.140 – 0.165 0.089 – 0.114 0.051 – 0.102
22 0.711 – 0.723 0.140 – 0.165 0.096 – 0.121 0.077 – 0.102 0.051 – 0.102
21 0.812 – 0.825 0.140 – 0.165 0.102 – 0.127 0.051 – 0.102
20 0.901 – 0.914 0.108 – 0.165 0.108 – 0.134
19 1.054 – 1.079 0.166 – 0.216 0.102 – 0.140 0.070 – 0.108
18 1.257 – 1.282 0.191 – 0.241 0.127 – 0.165 0.083 – 0.121 0.051 – 0.102
17 1.460 – 1.485 0.177 – 0.229 0.115 – 0.152 0.083 – 0.127 0.057 – 0.102
16 1.638 – 1.663 0.204 – 0.254 0.127 – 0.165 0.096 – 0.133 0.070 – 0.121
15 1.816 – 1.841 0.204 – 0.254 0.127 – 0.165 0.096 – 0.134 0.070 – 0.121
14 2.082 – 2.133 0.216 – 0.292 0.165 – 0.229 0.114 – 0.165 0.076 – 0.134
13 2.387 – 2.438 0.267 – 0.343 0.191 – 0.267
12 2.743 – 2.749 0.267 – 0.321
11 3.023 – 3.073 0.293 – 0.368 0.216 – 0.292
10 3.378 – 3.429 0.318 – 0.394 0.216 – 0.292

Stainless Steel Capillary Tubes for medical needle applications and applicable fields:

  • Hydraulic control lines with seamless coil tubing
  • Marine seamless coil tubing
  • Oilfield test cable coil tubing
  • High-pressure instrumentation coil tubing
  • Health and medical grade seamless coil tubing
  • Cold heat exchanger seamless coil tubing
  • Coal mine detection seamless coil tubing
  • Deep-sea oil drilling seamless coil tubing
  • Instant water heater with seamless coil tubing
  • Water dispenser beverage machine with coil tubing
  • Refrigerating Equipment, Condensers
  • Beverage Machinery, machines in brewery industry
  • Evaporators,Heat Exchanger
  • Liquid/ Gas Transportation
  • CNG with coil tubing
  • Other Industries

Advantage:

• Advanced production and inspection equipment

• Top quality control system and service system

• Professional & Sincerity

• Competitive Price

• Good Reputation

• Timely Delivery

Applications Of Stainless Steel Capillary Tube

  • Medical device industry – injection needle tube, puncture needle tube
  • Industrial electric heating tube, oil tube
  • Temperature sensor, Sensor tube, Instrument tube
  • Automobile tube
  • Food industrial pipe,

Stainless Steel Capillary Pipes & Tubes are used in different applications of intra/extra cellular biology, separation sciences, hematology sampling and study, biotechnology, and biochemistry. Capillary Tube is a long, narrow tube of constant diameter.

1. Products Specification

Stainless Steel capillary tubes for medical needle Grade Straight/ Coil tubing
TP 304, TP 304L, TP 316/316L, TP321, TP316SS TP310S/ Incoloy800/825/600/625/718 Monel400/ K-50 etc.
Stainless Steel capillary tubes for medical needle Standard Straight/ Coil tubing
ASTM, GB, AISI, JIS, DIN,EU
Stainless Steel capillary tubes for medical needle Diameter Straight/ Coil tubing
0.33mm-76mm
Stainless Steel capillary tubes for medical needle Thickness Straight/ Coil tubing
0.1mm-3.0mm
Stainless Steel capillary tubes for medical needle Length Straight/ Coil tubing
Depending on your requirement 50-2000meters
Stainless Steel capillary tubes for medical needle Technique Straight/ Coil tubing
Cold drawing, precision rolling

TYPE:

SEAMLESS / ERW / WELDED/ SEMI-SEAMLESS / FABRICATED

Grade of stainless steel capillary pipes & tubes:

304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.

Non-Ferrous Capillary pipes & tubes:

Inconel, Monel, Hastelloy, Copper, Brass, Nickel, Copper-nickel alloys, Copper alloys, nickel alloys, duplex stainless steel and other types of steels.

FORM:
ROUND, STRAIT, HYDRAULIC ETC.

LENGTH:
SINGLE RANDOM, DOUBLE RANDOM , COIL FORM, CUT LENGTH

END:

PLAIN END, BEVELED END.

Surface conditions for Stainless steel 304/304L capillary pipes and tubes:

  • Stainless steel 304/304L Bright Annealed capillary pipes and tubes
  • Stainless steel 304/304L Polished capillary pipes and tubes
  • Stainless steel 304/304L Annealed & Pickled capillary pipes and tubes
  • Stainless steel 304/304L Bright Annealed & polished capillary pipes and tubes
  • Stainless steel 304/304L Electro polishing capillary pipes and tubes

Type Chemical Composition(%)
ASTM C Cr Ni Mn P S Mo Si Cu N
TP304 ≤0.08 18.0-20.0 8.0-11.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - - - - -
TP304L ≤0.035 18.0-20.0 8.0-13.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - - - - -
TP304H 0.04-0.10 18.0-20.0 8.0-11.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - - - - -
TP310S ≤0.08 24.0-26.0 19.0-22.0 ≤2.00 ≤0.045 ≤0.030 ≤0.75 ≤1.00 - - - - - -
TP316 ≤0.08 16.0-18.0 11.0-14.0 ≤2.00 ≤0.045 ≤0.030 2.00-3.00 ≤1.00 - - - - - -
TP316L ≤0.035 16.0-18.0 10.0-14.0 ≤2.00 ≤0.045 ≤0.030 2.00-3.00 ≤1.00 - - - - - -
TP316N ≤0.08 16.0-18.0 11.0-14.0 ≤2.00 ≤0.045 ≤0.030 2.00-3.00 ≤1.00 - - - 0.10-0.16
TP317L ≤0.035 18.0-20.0 11.0-15.0 ≤2.00 ≤0.045 ≤0.030 3.0-4.0 ≤1.00 - - - - - -
TP321 ≤0.08 17.0-19.0 9.0-12.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - - ≤0.10
TP321H 0.04-0.10 17.0-19.0 9.0-12.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - - - - -
TP347 ≤0.08 17.0-19.0 9.0-13.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - -

- - -
