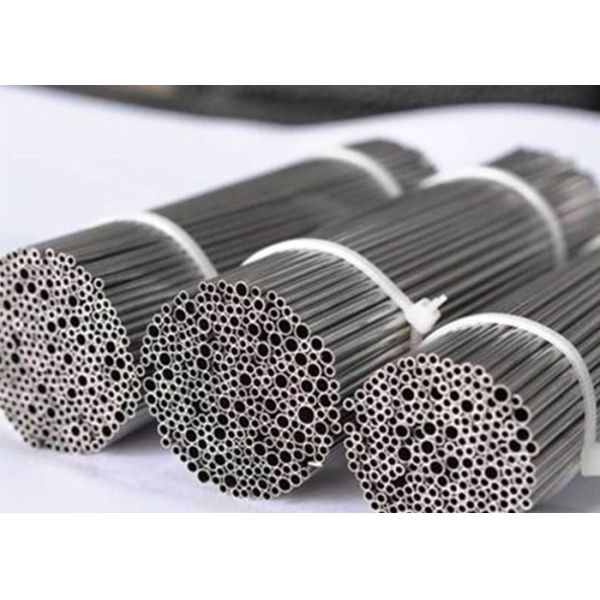

304 304L 316 316L SS Capillary Tube Welded Cold Drawn Tubing ASTM A269
304 304L 316 316L SS Capillary Tube Welded Cold Drawn Tubing ASTM A269
304 304L 316 316L SS Capillary Tube Welded Cold Drawn Tubing ASTM A269
304 304L 316 316L SS Capillary Tube Welded Cold Drawn Tubing ASTM A269
304 304L 316 316L SS Capillary Tube Welded Cold Drawn Tubing ASTM A269
304 304L 316 316L SS Capillary Tube Welded Cold Drawn Tubing ASTM A269
304 304L 316 316L SS Capillary Tube Welded Cold Drawn Tubing ASTM A269
304 304L 316 316L SS Capillary Tube Welded Cold Drawn Tubing ASTM A269
Specifications
Brand Name :
BWSS
Model Number :
TP304/TP316L/TP904L
Certification :
PED, ISO, GOST
Place of Origin :
CHINA
MOQ :
0.5-1TONS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 tons per month
Delivery Time :
20 days
Packaging Details :
Each in PVC bags, than in Bundles
Application :
Medical
Material Grade :
304 304L 316 316L
Outer Diameter :
6mm-10mm
Wall Thickness :
0.3mm-8mm
Length :
cut into pcs
Process Method :
Welded,precision rolled,cold drawn
Standard :
ASTM/AISI ,GB,JIS,DIN,EN,etc
Surface Finish :
180G, 320G, 400G Satin / Hairline,400G, 500G, 600G or 800G Mirror finish
Type :
High Precision Stainless Steel Tubing / Tube
Package :
Wooden Case
Description

ASTM A269 304 304L 316 316L Stainless Steel Capillary Tube welded cold drawn Tubing

Stainless steel capillary tubes are corrosion resistant and excellent in ultra-high pressure situations. Capillary tubes are useful in applications involving the transferring of gas and liquids. Stainless steel round tube, a larger diameter than capillary tubes, is extremely versatile. Stainless steel round tube can be seen across many industries including food and beverage, construction, automotive, technology and many more.

Capillary Pipes Tubes &OCTG, CRA (Corrosion-Resistant Alloy) Seamless Tubes,Stainless Steel , Super Duplex , Duplex , Welded & Seamless, Carbon Steel Seamless Pipes, Tubes, Capillary Pipes & ‘U’ Tubes for applications in oil & gas, LNG, Thermal & Nuclear Power Plants, Chemical Industries, Fertilizers Plants, (petro) chemical, shipbuilding, desalination, water treatment, energy industries, EPC and Pipes for General Engineering Purpose.

Stainless Steel Capillary Tube Size Range:


Gauge		 Outside Diameter Tolerance mm Regular Wall Thickness (RWT) mm Thin Wall Thickness mm Extra Thin Wall Thicknessmm Ultra Thin Wall Thickness mm
30 0.304 – 0.317 0.064 – 0.089
29 o.330 – 0.342 0.064 – 0.089
28 0.355 – 0.368 0.076 – 0.102
27 0.406 – 0.419 0.089 – 0.115 0.064 – 0.089
26 0.457 – 0.469 0.089 – 0.114
25 0.508 – 0.520 0.115 – 0.140 0.089 – 0.114
24 0.558 – 0.571 0.114 – 0.140 0.089 – 0.114 0.051 – 0.102
23 0.635 – 0.647 0.140 – 0.165 0.089 – 0.114 0.051 – 0.102
22 0.711 – 0.723 0.140 – 0.165 0.096 – 0.121 0.077 – 0.102 0.051 – 0.102
21 0.812 – 0.825 0.140 – 0.165 0.102 – 0.127 0.051 – 0.102
20 0.901 – 0.914 0.108 – 0.165 0.108 – 0.134
19 1.054 – 1.079 0.166 – 0.216 0.102 – 0.140 0.070 – 0.108
18 1.257 – 1.282 0.191 – 0.241 0.127 – 0.165 0.083 – 0.121 0.051 – 0.102
17 1.460 – 1.485 0.177 – 0.229 0.115 – 0.152 0.083 – 0.127 0.057 – 0.102
16 1.638 – 1.663 0.204 – 0.254 0.127 – 0.165 0.096 – 0.133 0.070 – 0.121
15 1.816 – 1.841 0.204 – 0.254 0.127 – 0.165 0.096 – 0.134 0.070 – 0.121
14 2.082 – 2.133 0.216 – 0.292 0.165 – 0.229 0.114 – 0.165 0.076 – 0.134
13 2.387 – 2.438 0.267 – 0.343 0.191 – 0.267
12 2.743 – 2.749 0.267 – 0.321
11 3.023 – 3.073 0.293 – 0.368 0.216 – 0.292
10 3.378 – 3.429 0.318 – 0.394 0.216 – 0.292

Stainless Steel Capillary Tubes for medical needle applications and applicable fields:

  • Hydraulic control lines with seamless coil tubing
  • Marine seamless coil tubing
  • Oilfield test cable coil tubing
  • High-pressure instrumentation coil tubing
  • Health and medical grade seamless coil tubing
  • Cold heat exchanger seamless coil tubing
  • Coal mine detection seamless coil tubing
  • Deep-sea oil drilling seamless coil tubing
  • Instant water heater with seamless coil tubing
  • Water dispenser beverage machine with coil tubing
  • Refrigerating Equipment, Condensers
  • Beverage Machinery, machines in brewery industry
  • Evaporators,Heat Exchanger
  • Liquid/ Gas Transportation
  • CNG with coil tubing
  • Other Industries

RANGE of Stainless Steel Capillary pipes and tubes:

0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.

TYPE:

SEAMLESS / ERW / WELDED/ SEMI-SEAMLESS / FABRICATED

Grade of stainless steel capillary pipes & tubes:

304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.

Non-Ferrous Capillary pipes & tubes:

Inconel, Monel, Hastelloy, Copper, Brass, Nickel, Copper-nickel alloys, Copper alloys, nickel alloys, duplex stainless steel and other types of steels.

FORM:
ROUND, STRAIT, HYDRAULIC ETC.

LENGTH:
SINGLE RANDOM, DOUBLE RANDOM , COIL FORM, CUT LENGTH

END:

PLAIN END, BEVELED END.

Capillary tubes with a maximum bore of 0.0158 in., available in a wide range of stainless steels. Sandvik capillary tubes are characterized by tight tolerances, and the inside surface of the tubes is free from oil, grease and other particles. This ensures, for example, an optimized and even flow of liquids and gases from the sensor to the measuring instrument.

Quick Detail:

Manufacturing to: ASTM A269, DIN 17458/EN10216-5 TC1, D3/T3, D4/T3 NACE MR.01.75/77, Cert To EN 10204 3.1
T est: 100% Eddy Test or Hydrostatic Test, UT Test
Delivery Condition: Annealed & Pickled, Annealed & Pickled + Polished

Capillary tubes are used in applications, such as:

  • Chromatography
  • Gas and liquid lines
  • Measurement components in remote thermometer systems (with or without compensation)

Advantage:

• Advanced production and inspection equipment

• Top quality control system and service system

• Professional & Sincerity

• Competitive Price

• Good Reputation

• Timely Delivery

1. Products Specification

Stainless Steel capillary tubes for medical needle Grade Straight/ Coil tubing
TP 304, TP 304L, TP 316/316L, TP321, TP316SS TP310S/ Incoloy800/825/600/625/718 Monel400/ K-50 etc.
Stainless Steel capillary tubes for medical needle Standard Straight/ Coil tubing
ASTM, GB, AISI, JIS, DIN,EU
Stainless Steel capillary tubes for medical needle Diameter Straight/ Coil tubing
0.33mm-76mm
Stainless Steel capillary tubes for medical needle Thickness Straight/ Coil tubing
0.1mm-3.0mm
Stainless Steel capillary tubes for medical needle Length Straight/ Coil tubing
Depending on your requirement 50-2000meters
Stainless Steel capillary tubes for medical needle Technique Straight/ Coil tubing
Cold drawing, precision rolling

2. Chemical Element Analysis

Type

Chemical Composition(%)

ASTM

C

Cr

Ni

Mn

P

S

Mo

Si

Cu

N

TP304

≤0.08

18.0-20.0

8.0-11.0

≤2.00

≤0.045

≤0.030

- - -

≤1.00

- - -

- - -

TP304L

≤0.035

18.0-20.0

8.0-13.0

≤2.00

≤0.045

≤0.030

- - -

≤1.00

- - -

- - -

TP304H

0.04-0.10

18.0-20.0

8.0-11.0

≤2.00

≤0.045

≤0.030

- - -

≤1.00

- - -

- - -

TP310S

≤0.08

24.0-26.0

19.0-22.0

≤2.00

≤0.045

≤0.030

≤0.75

≤1.00

- - -

- - -

TP316

≤0.08

16.0-18.0

11.0-14.0

≤2.00

≤0.045

≤0.030

2.00-3.00

≤1.00

- - -

- - -

TP316L

≤0.035

16.0-18.0

10.0-14.0

≤2.00

≤0.045

≤0.030

2.00-3.00

≤1.00

- - -

- - -

TP316N

≤0.08

16.0-18.0

11.0-14.0

≤2.00

≤0.045

≤0.030

2.00-3.00

≤1.00

- - -

0.10-0.16

TP317L

≤0.035

18.0-20.0

11.0-15.0

≤2.00

≤0.045

≤0.030

3.0-4.0

≤1.00

- - -

- - -

TP321

≤0.08

17.0-19.0

9.0-12.0

≤2.00

≤0.045

≤0.030

- - -

≤1.00

- - -

≤0.10

TP321H

0.04-0.10

17.0-19.0

9.0-12.0

≤2.00

≤0.045

≤0.030

- - -

≤1.00

- - -

- - -

TP347

≤0.08

17.0-19.0

9.0-13.0

≤2.00

≤0.045

≤0.030

- - -

≤1.00

- - -

- - -
