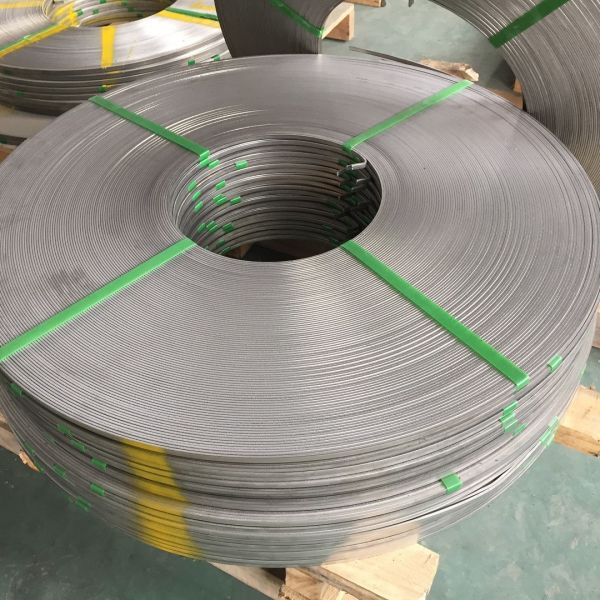

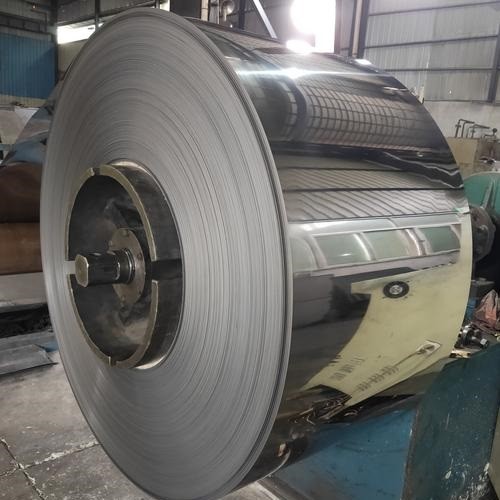

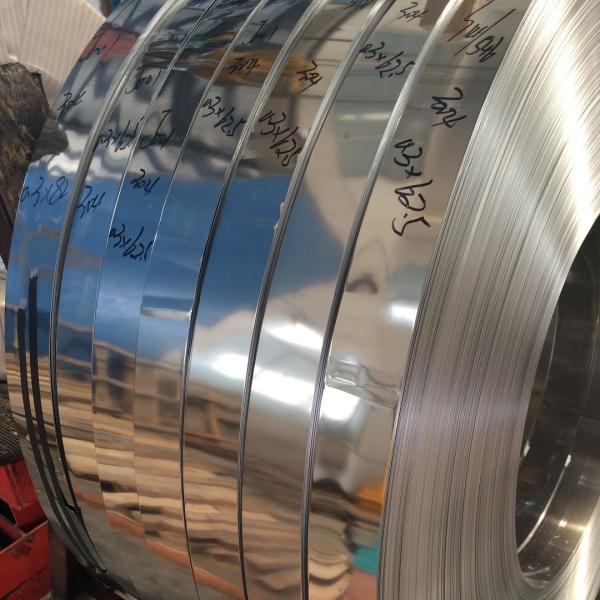

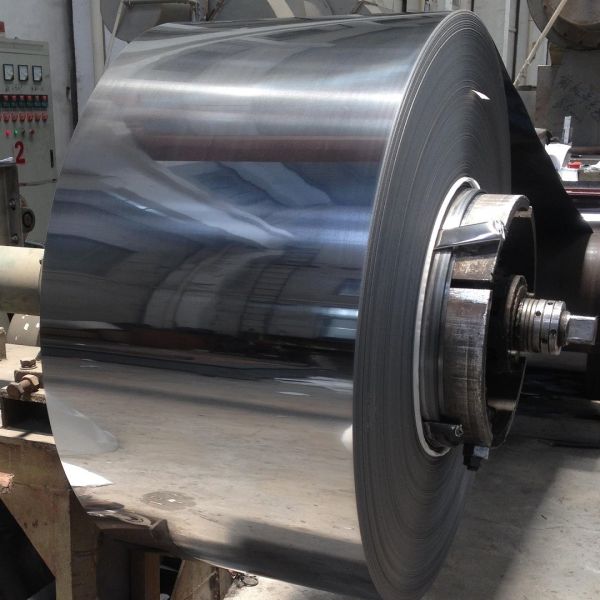

EN DIN ASTM Standard Hastelloy C276 Strip Rolls N10276 Nickel Alloy Strip Band
Name | Nickel alloy strip and Foil |
Standard | ASTM EN DIN JIS GB |
Certification | IOS9001:2015,ISO/TS 16949:2009 |
Wall thickness | 0.1-3.0mm |
Allowable width Deviation | +/-0.15 mm |
Material | INCOLOY840,INCOLOY800,INCOLOY825,INCONEL600/601,INCONEL625,HASTELLOY C276,BT840Mo,BT800Mo |
Delivery time | Within 25 days after receiving deposit |
Payment term | T/T,L/C |
Supply ability | 250 tons per month |
Packing | Export standard package with polywood pallet or ISPM 15 stamped wooden case |
Information | Max coil weight:10000KG Coil inner Diameter Φ500/600/610/762 The Narrowest slitting slip width:15mm Max Length:5600M |
Where is Hastelloy C276 Strip used?
Hastelloy C276 Strip is a type of nickel alloy strip used in many industrial and commercial applications. It is highly resistant to corrosion, making it an ideal solution for industries dealing with chemicals, chlorides, and other corrosive materials. It is also non-magnetic and has excellent mechanical properties, making it extremely versatile when looking for high-temperature strength or ease of fabrication. Hastelloy C276 Strip can be used in chemical process vessels and piping systems, as well as for heat exchangers, condensers, evaporators, pumps, and valves. Additionally, its anti-corrosive nature makes it the perfect choice when manufacturing components found in oil & gas industry applications such as downhole tools, subsea pipelines, and pumps. Finally, Hastelloy C276 Strip is also used in the fabrication of food processing equipment. Its non-toxic nature makes it ideal for machinery dealing with food products, as it will not leach any harmful substances into the food being processed.
What Is The Difference Between Monel 400 Hastelloy C276 Strip?
Hastelloy C276 Strip is a nickel-chromium-molybdenum alloy that is widely known for its excellent corrosion resistance in both oxidizing and reducing environments. It also has good thermal stability and mechanical strength, making it suitable for many industrial and chemical applications. In comparison to Monel 400, Hastelloy C276 Strip offers greater corrosion resistance due to the higher levels of chromium, molybdenum, and tungsten found in its composition. Additionally, it can withstand higher temperatures than Monel 400 without detriment to its properties. As such, Hastelloy C276 Strip is often preferred in extreme environment applications. The increased cost associated with this stronger material is offset by the decreased need for frequent replacements and maintenance. Therefore, Hastelloy C276 Strip is a cost-effective solution in many cases. Additionally, its increased corrosion resistance can help reduce downtime and increase safety for personnel working near the materials. In short, Hastelloy C276 Strip offers superior performance compared to Monel 400 in terms of corrosion resistance and thermal stability. It is the ideal material choice when dealing with extreme environments or applications that require high performance from their alloys. As such, it is often preferred over Monel 400 for industrial and chemical uses.
Standards | ASTM B575 / ASME SB 575 |
Thickness | 0.05mm - 3.0mm & AS PER CUSTOMER’S REQUIREMENT |
Width | 3.2mm-550mm & AS PER CUSTOMER’S REQUIREMENT. |
Length | AS PER CUSTOMER’S REQUIREMENT. |
Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard AS PER CUSTOMER’S REQUIREMENT. |
Test Certificate | Chemical test, Fitting test, Alloy test, Radiography test, Macro and micro-test, Hydrostatic test, Impact test. |
Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled (HR), Cold rolled (CR), SATIN (Met with Plastic Coated) etc. |
STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
Hastelloy C276 | 2.4819 | N10276 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
We Ensure the best quality of Packing , because its play important role especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put extraordinary concern regarding packaging.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory/manufacture.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 45-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment or BL at sight.
