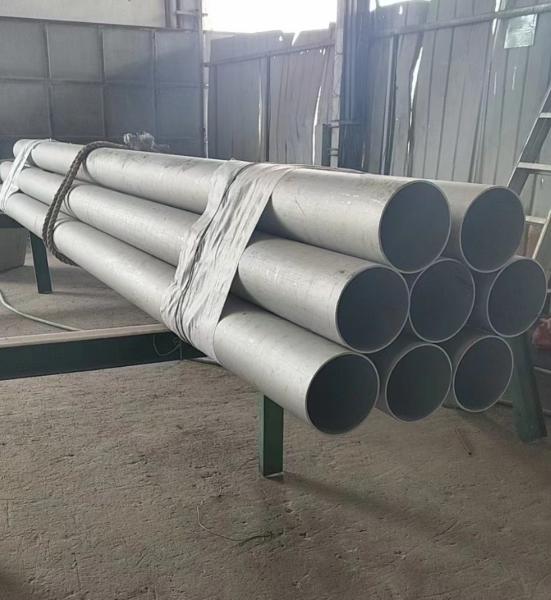

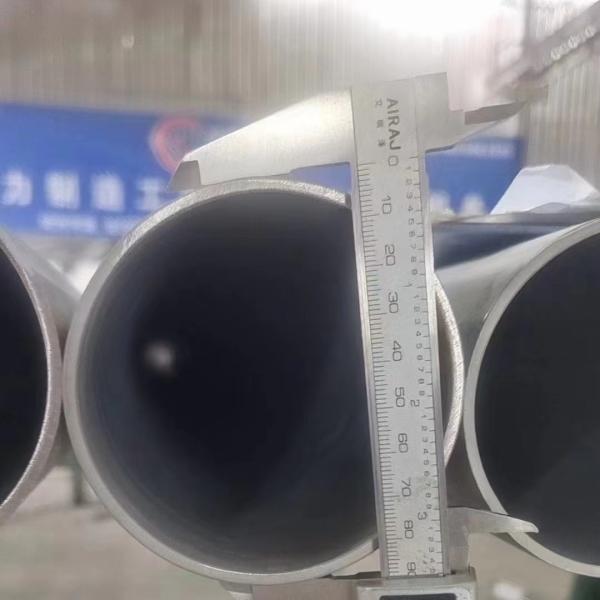

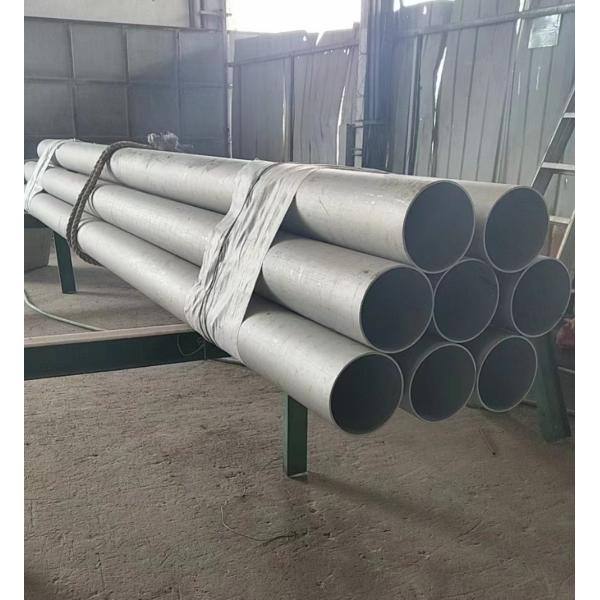

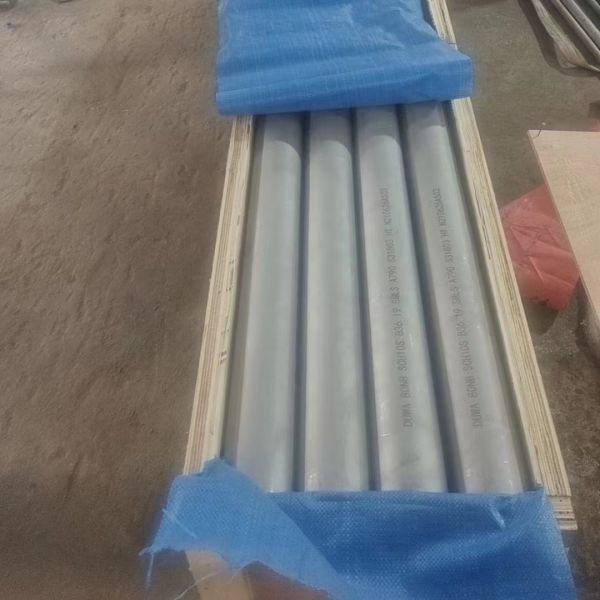

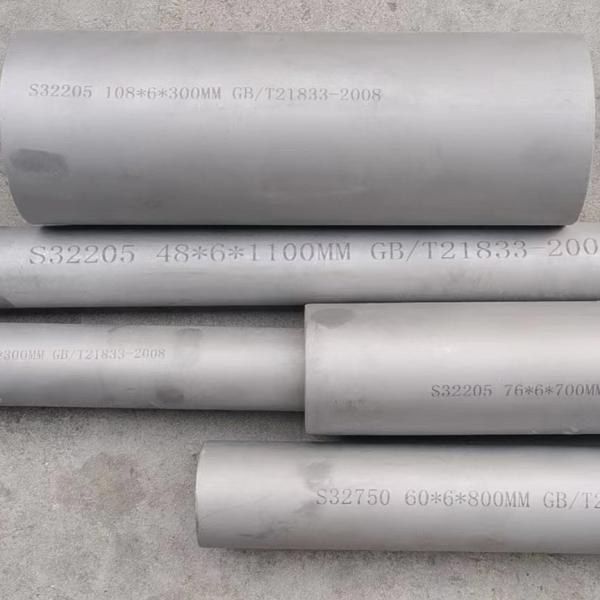

ASTM A312 Bright Polished Stainless Steel Pipe Diameter 4 - 219mm Grade 17-4PH
ASTM A312 Bright Polished Stainless Steel Pipe Diameter 4 - 219mm Grade 17-4PH
ASTM A312 Bright Polished Stainless Steel Pipe Diameter 4 - 219mm Grade 17-4PH
ASTM A312 Bright Polished Stainless Steel Pipe Diameter 4 - 219mm Grade 17-4PH
ASTM A312 Bright Polished Stainless Steel Pipe Diameter 4 - 219mm Grade 17-4PH
ASTM A312 Bright Polished Stainless Steel Pipe Diameter 4 - 219mm Grade 17-4PH
ASTM A312 Bright Polished Stainless Steel Pipe Diameter 4 - 219mm Grade 17-4PH
ASTM A312 Bright Polished Stainless Steel Pipe Diameter 4 - 219mm Grade 17-4PH
Specifications
Brand Name :
DELTA
Model Number :
304 316L 321 310S 314 347 2205 2507 904 630 L.etc
Certification :
ISO
Place of Origin :
China
MOQ :
500 kgs
Price :
2400 - 3500 USD/Ton
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10 Ton per week
Delivery Time :
5 - 12 days based on the quantity
Packaging Details :
standard packing for export
Products :
stainless steel welded pipe
Grade :
304 316L 321 2205 310S 904L 17-4ph.etc
Standard :
ASTM GB EN
Length :
random length of 6m
Diameter :
DN10 - DN400
Wall thickness :
SCH10 - XXS or unstandard size
Type :
seamless pipe
Service :
cutting
Other Shape :
square, rectangle
Description

Bright Polished Stainless Steel Pipe Diameter 4 - 219mm Grade 17-4PH(630) ASTM A312

Name stainless steel pipe
Standard ASTM, GB, JIS, DIN, EN, AISI
Material Grade TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310S
TP410 TP410S 17-4PH 254SMO 253MA
S31803/S32205 S32750 S32760
Outer Diameter Seamless Pipe: 4mm-812.80mm
Welded Pipe: single slit(Φ8mm-Φ630mm); girth(Φ630mm-Φ3000mm),
Thickness Seamless Pipe: 0.5mm - 60mm
Welded Pipe: single slit(0.5mm-25mm);girth(3mm-45mm)
Length 5.8-6.1 m or as customers' request
Tolerance Acording to the Standard.
Surface 180G, 320G, 400G Satin / Hairline
400G, 500G, 600G or 800G Mirror finish
Test UT, ET, HT, RT,ect, and others according to the standard,or as the requests of the customers
Certificate ISO9001-2008,ASME, PED
Delivery Time 7-30 Days, Depends on quantity

Stainless steel - 17-4PH (1.4542)

17-4PH stainless steel is a grade of martensitic precipitation hardened stainless steel can be heat treated to high levels of strength and hardness, features corrosion resistance and machinability comparable to austenitic 304 stainless.

This versatile material is widely used in aerospace, chemical, petrochemical, food processing, paper and general metalworking industries.

COMPOSITION

Element Cr Ni Mn Si Cu C Fe
Content 15 - 17,5% 3,0 - 5,0% 1,0% max 1,0% max 3,0 - 5,0% 0,07% max Balance

Benefits of 17-4 PH Stainless Steel

17-4 PH Stainless Steel has many benefits across several industries and can be used for many applications. It is typically used in the industrial space, especially in manufacturing. Here are some of the benefits that 17-4 Steel offers:

  • Superior Corrosion Resistance
    • 17-4 PH stainless steel is incredibly resistant to corrosion due to its high mechanical strength. It can be exposed to acid or salt water, for instance, allowing it to be utilized in chemical processing or marine propulsion.
  • High Yield Strength
    • In certain industries, the weight of stainless steel can be a concern, which makes 17-4 PH stainless steel a good option for applications with high-stress levels.
  • Good Heat Conductivity
    • When high temperatures are present, 17-4 PH stainless steel is thermally conductive, allowing it to be a heat exchanger, and also offers low thermal expansion.
  • Weldability
    • If needed, 17-4 PH stainless steel can be welded with other types of metals, which means it can be used as both a conventional metal and a filler metal for different applications.

ASTM A312 Bright Polished Stainless Steel Pipe Diameter 4 - 219mm Grade 17-4PHASTM A312 Bright Polished Stainless Steel Pipe Diameter 4 - 219mm Grade 17-4PHASTM A312 Bright Polished Stainless Steel Pipe Diameter 4 - 219mm Grade 17-4PHASTM A312 Bright Polished Stainless Steel Pipe Diameter 4 - 219mm Grade 17-4PH
