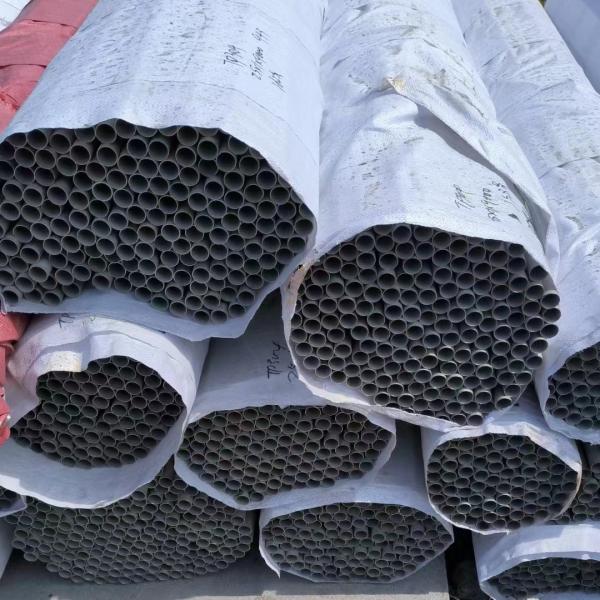

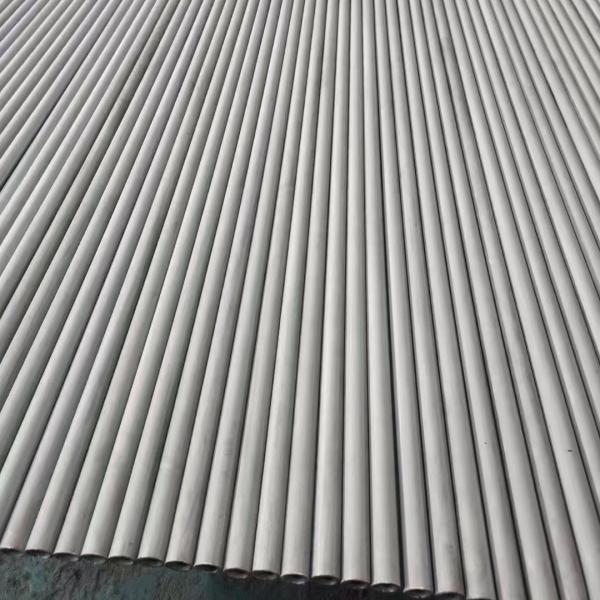

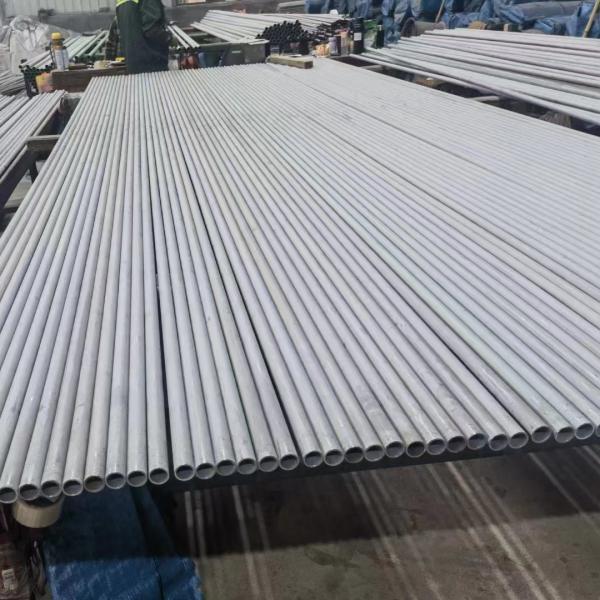

ASTM A790 Stainless Steel Pipe S31803 / S32750 / S32760 SS Tubing
ASTM A790 Stainless Steel Pipe S31803 / S32750 / S32760 SS Tubing
ASTM A790 Stainless Steel Pipe S31803 / S32750 / S32760 SS Tubing
ASTM A790 Stainless Steel Pipe S31803 / S32750 / S32760 SS Tubing
ASTM A790 Stainless Steel Pipe S31803 / S32750 / S32760 SS Tubing
ASTM A790 Stainless Steel Pipe S31803 / S32750 / S32760 SS Tubing
ASTM A790 Stainless Steel Pipe S31803 / S32750 / S32760 SS Tubing
ASTM A790 Stainless Steel Pipe S31803 / S32750 / S32760 SS Tubing
Specifications
Brand Name :
DELTA
Model Number :
304 316L 321 310S 314 347 2205 2507 904 630 L.etc
Certification :
ISO
Place of Origin :
China
MOQ :
500 kgs
Price :
2400 - 3500 USD/Ton
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10 Ton per week
Delivery Time :
5 - 12 days based on the quantity
Packaging Details :
standard packing for export
Products :
stainless steel pipe
Grade :
304 316L 321 2205 310S 904L 17-4ph 2205 2507.etc
Standard :
ASTM GB EN
Length :
random length of 6m
Diameter :
DN10 - DN400
Wall thickness :
SCH10 - XXS or unstandard size
Type :
seamless pipe
Service :
cutting
Other Shape :
square, rectangle
Description

ASTM A790 Stainless Steel Pipe Grade S31803 / S32750 / S32760 SS Pipe Tubing

Name stainless steel pipe
Standard ASTM, GB, JIS, DIN, EN, AISI
Material Grade TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP321H TP310 TP310S
TP410 TP410S 17-4PH 254SMO 253MA
S31803/S32205 S32750 S32760
Outer Diameter Seamless Pipe: 4mm-812.80mm
Welded Pipe: single slit(Φ8mm-Φ630mm); girth(Φ630mm-Φ3000mm),
Thickness Seamless Pipe: 0.5mm - 60mm
Welded Pipe: single slit(0.5mm-25mm);girth(3mm-45mm)
Length 5.8-6.1 m or as customers' request
Tolerance Acording to the Standard.
Surface 180G, 320G, 400G Satin / Hairline
400G, 500G, 600G or 800G Mirror finish
Test UT, ET, HT, RT,ect, and others according to the standard,or as the requests of the customers
Certificate ISO9001-2008,ASME, PED
Delivery Time 7-30 Days, Depends on quantity

Duplex Stainless Steel Pipe Specification

Standard
Item		 ASTM A789 ASTM A790 EN 10216-5
Grade S31803 S32205 S32750 S31803 S32205 S32750 1.4301 1.4307 1.4948 1.4315
1.4401 1.4404 1.4571 1.4541
1.4941 1.4845 1.4449 1.4438
1.4550 1.4912 1.4462 1.4410
Yield Strength
(Mpa)		 ≥450；≥485；≥550 ≥450；≥450；≥550 ---
Tensile Strength
(Mpa)		 ≥620；≥655；≥800 ≥620；≥655；≥800 ---
Elongation(%) ≥25；≥25；≥15 ≥25；≥25；≥15 ---
Hydrostatic Test The hydrostatic test shall be carried out at a test pressure of 7MPa or
at a test pressure calculated using the following formula
P=2St/D S=70%Rp0.2
Intergranular Corrosion Test Usually use Pitting Corrosion Test. Usually use Pitting Corrosion Test. EN ISO 3651-2 (Optional)
Eddy Current Test Could be replaced by HT. Could be replaced by HT. EN 10246-3
O.D. Tolerance
(mm)		 O.D. O.D.Tolerance O.D. O.D.Tolerance O.D. Tolerance Class
D<12.7 +/-0.13 10.3≤D≤48.3 +0.40/-0.80 D3 +/-0.75% or
+/-0.3mm
12.7≤D<38.1 +/-0.13 48.3<D≤114.3 +0.80/-0.80
whichever is the greater
38.1≤D<88.9 +/-0.25 114.3<D≤219.1 +1.60/-0.80 D4 +/-0.5% or
+/-0.1mm
88.9≤D<139.7 +/-0.38 219.1<D≤457.0 +2.40/-0.80
whichever is the greater
W.T. Tolerance
(mm)		 O.D. W.T.Tolerance O.D. W.T.Tolerance W.T. Tolerance Class
D<12.7 +/-15% 10.3≤D≤73.0 +20.0%/-12.5% T3 +/-10% or
+/-0.2mm
12.7≤D<38.1 +/-10%
88.9≤D≤457.0
t/D ≤5%		 +22.5%/-12.5% whichever is the greater
38.1≤D<88.9 +/-10% T4 +/-7.5% or
+/-0.15mm
88.9≤D≤457.0
t/D >5%		 +15.0%/-12.5%
88.9≤D<139.7 +/-10%
whichever is the greater

ASTM A789 / ASME SA789 covers grades of average wall thickness, or, if specified on the order, minimum wall thickness, of stainless steel tubing for services requiring general corrosion resistance, with particular emphasis on resistance to stress corrosion cracking. These steels are suscep- tible to embrittlement if used for prolonged periods at elevated temperatures.

The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in non-conformance with the standard. Within the text, the SI units are shown in brackets. The inch-pound units shall apply unless the M designation of this specification is specified in the order.

Ordering Information

  • Orders for product under this specification should in- clude the following, as required, to describe the desired material adequately:
  • Quantity (feet, metres, or number of lengths),
  • Name of product (seamless or welded tubes),
  • Grade
  • Size (outside diameter and average wall thickness, unless minimum wall thickness is specified),
  • Length (specific or random),
  • Optional requirements (for product analysis, see Section for hydrostatic or nondestructive electric test, see Section 10
  • Test report required (see the Inspection section of Specification A1016/A1016M
  • Specification designation, and
  • Special requirements.

ASTM A789 Duplex Steel Chemical Composition

The steel shall conform to the chemical requirements prescribed in Table 1.

UNS
Designation C Mn P S Si Ni Cr Mo N Cu Others
S31200 0.030 2.00 0.045 0.030 1.00 5.5–6.5 24.0–26.0 1.20–2.00 0.14–0.20 . . . . . .
S31260 0.030 1.00 0.030 0.030 0.75 5.5–7.5 24.0–26.0 2.5–3.5 0.10–0.30 0.20
–0.80		 W 0.10
–0.50
S31500 0.030 1.20
–2.00		 0.030 0.030 1.40
–2.00		 4.3–5.2 18.0–19.0 2.50–3.00 0.05–0.1 . . . . . .
S31803 0.030 2.00 0.030 0.020 1.00 4.5–6.5 21.0–23.0 2.5–3.5 0.08–0.20 . . . . . .
S32001 0.030 4.00
–6.00		 0.040 0.030 1.00 1.0–3.0 19.5–21.5 0.60 0.05–0.17 1.00 . . .
S32003 0.030 2.00 0.030 0.020 1.00 3.0-4.0 19.5-22.5 1.50-2.00 0.14-0.20 . . . . . .
S32101 0.040 4.0-6.0 0.040 0.030 1.00 1.35-1.70 21.0-22.0 0.10-0.80 0.20-0.25 0.10
-0.80		 . . .
S32202 0.030 2.00 0.040 0.010 1.00 1.00–2.80 21.5–24.0 0.45 0.18–0.26 . . . . . .
S32205 0.030 2.00 0.030 0.020 1.00 4.5–6.5 22.0–23.0 3.0–3.5 0.14–0.20 . . . . . .
S32304 0.030 2.50 0.040 0.040 1.00 3.0–5.5 21.5–24.5 0.05–0.60 0.05–0.20 0.05
–0.60		 . . .
S32506 0.030 1.00 0.040 0.015 0.90 5.5–7.2 24.0–26.0 3.0–3.5 0.08–0.20 . . . W 0.05
–0.30
S32520 0.030 1.50 0.035 0.020 0.80 5.5–8.0 23.0–25.0 3.–5. 0.20–0.35 0.50
–3.00		 . . .
S32550 0.04 1.50 0.040 0.030 1.00 4.5–6.5 24.0–27.0 2.9–3.9 0.10–0.25 1.50
–2.50		 . . .
S32707 0.030 1.50 0.035 0.010 0.50 5.5–9.5 26.0–29.0 4.0–5.0 0.30–0.50 1.0 max Co 0.5
–2.0
S32750 0.030 1.20 0.035 0.020 0.80 6.0–8.0 24.0–26.0 3.0–5.0 0.24–0.32 0.50 . . .
S32760 0.030 1.00 0.030 0.010 1.00 6.0–8.0 24.0–26.0 3.0–4.0 0.20–0.30 0.50
–1.00		 W 0.50
–1.00
S32808 0.030 1.10 0.030 0.010 0.50 7.0–8.2 27.0–27.9 0.80–1.20 0.30–0.40 . . . W 2.10
–2.50
S32900 0.08 1.00 0.040 0.030 0.75 2.5–5.0 23.0–28.0 1.00–2.00 . . . . . . . . .
S32906 0.030 0.80
–1.50		 0.030 0.030 0.80 5.8–7.5 28.0 –30.0 1.50–2.60 0.30–0.40 0.80 . . .
S32950 0.030 2.00 0.035 0.010 0.60 3.5–5.2 26.0–29.0 1.00–2.50 0.15–0.35 . . . . . .
S33207 0.030 1.50 0.035 0.010 0.80 6.0–9.0 29.0–33.0 3.0–5.0 0.40–0.60 1.0 . . .
S39274 0.030 1.00 0.030 0.020 0.80 6.0–8.0 24.0–26.0 2.5–3.5 0.24–0.32 0.20
–0.80		 W 1.50
–2.50
S39277 0.025 0.80 0.025 0.002 0.80 6.5–8.0 24.0–26.0 3.00–4.00 0.23–0.33 1.20
–2.00		 W 0.80
–1.21
S82011 0.030 2.0
–3.0		 0.040 0.020 1.00 1.00–2.00 20.5–23.5 0.10–1.00 0.15–0.27 0.50 . . .
S82441 0.030 2.50
–4.00		 0.035 0.005 0.70 3.0–4.5 23.0–25.0 1.00–2.00 0.20–0.30 0.10
–0.80

Stainless Steel Tube/Pipe/Tubing, Nickel Alloy Tubing, Brass Alloy Tubing, Copper Nickel Pipe Material Grades
  • Austenitic Austenite Stainless Steel
  • SUS 304 S30400 Stainless Steel Tubing Tubes Pipe
  • 304L S30404 Stainless Steel Tubing Tubes Pipe
  • SUS 304H S30409 Stainless Steel Tubing Tubes Pipe
  • 304NG Stainless Steel
  • S30432 Super 304H Stainless Steel Tubes
  • SUS 305 Stainless Steel Tubing Tubes Pipe Manufacturer
  • SUS 309S S30908 Stainless Steel Tubing Tubes Pipe
  • 310S S31008 Stainless Steel Tubing Tubes Pipe
  • 316 S31600 Stainless Steel Tubing Tubes Pipe
  • 316L S31603 Stainless Steel Tubing Tubes Pipe
  • 316Ti S31635 Stainless Steel Tubing Tubes Pipe
  • 317L S31700 Stainless Steel Tubing Tubes Pipe
  • SUS 321 S32100 Stainless Steel Tubing Tubes Pipe
  • SUS 321H S32109 Stainless Steel Tubing Tubes Pipe
  • 347 S34700 Stainless Steel Tubing Tubes Pipe
  • 347H S34705 Stainless Steel Tubing Tubes Pipe
  • 253MA S30815 Stainless Steel Tubing Tubes Pipe
  • 353MA S35315 Tubing Tubes Pipe
  • ASTM A564 A693 630 S17400 Stainless Steel Tubing Tubes Pipe
  • Super-Austenitic Stainless Steel
  • 904L N8904 Stainless Steel Tubing Tubes Pipe
  • 254 SMo S31254 Stainless Steel Tubing Tubes Pipe
  • Duplex Stainless Steel
  • S32101 Stainless Steel Tubing Tubes Pipe
  • S32205 Stainless Steel Tubing Tubes Pipe
  • S31803 Stainless Steel Tubing Tubes Pipe
  • S32304 Stainless Steel Tubing Tubes Pipe manufacturer
  • Super Duplex Stainless Steel
  • S32750 Stainless Steel Tubing Tubes Pipe
  • S32760 Stainless Steel Tubing Tubes Pipe
  • Ferritic Ferrite Stainless Steel
  • ASTM A268 405 S40500 Stainless Steel Tubing Tubes Pipe
  • ASTM A268 409 S40900 Stainless Steel Tubing Tubes Pipe
  • ASTM A268 430 S43000 Stainless Steel Tubing Tubes Pipe Manufacturer
  • Martensitic Martensite Stainless Steel
  • ASTM A268 410 S41000 Stainless Steel Tubing Tubes Pipe
  • ASTM A268 410S S41008 Stainless Steel Tubing Tubes Pipe Manufacturer
  • AISI 416 Stainless Steel Tubing Tubes Pipe
  • AISI 420 S42000 Stainless Steel Tubing Tubes Pipe
  • Incoloy Alloy Tubing
  • A286 Nickel Alloy Tubing
  • Nickel Alloy 20 N08020 Nickel Alloy Tubing Tubes Pipe
  • Incoloy 800 N08800 Nickel Alloy Tubing Tubes Pipe
  • Incoloy 800H N08810 Nickel Alloy Tubing Tubes Pipe
  • Incoloy 800HT N08811 Nickel Alloy Tubing Tubes Pipe
  • Incoloy 825 N08825 Nickel Alloy Tubing Tubes Pipe
  • Incoloy 901 N09901 Nickel Alloy Tubing Tubes Pipe
  • Incoloy 925 N09925 Nickel Alloy Tubing Tubes Pipe
  • Incoloy 926 N08926 Nickel Alloy Tubing Tubes Pipe Stockholder
  • Inconel Alloy Tubing
  • Inconel 600 N06600 Nickel Alloy Tubing Tubes Pipe
  • Inconel 601 N06601 Nickel Alloy Tubing Tubes Pipe
  • Inconel 625 N06625 Nickel Alloy Tubing Tubes Pipe
  • Inconel 706 N09706Nickel Alloy Tubing Tubes Pipe
  • Inconel 718 N07718 Nickel Alloy Tubing Tubes Pipe
  • Inconel X-750 N07750 Nickel Alloy Tubing Tubes Pipe
  • Hastelloy Alloy Tubing
  • Hastelloy B N10001 Nickel Alloy Tubing Tubes Pipe Manufacturer
  • Hastelloy B-2 N10665 Nickel Alloy Tubing Tubes Pipe
  • Hastelloy B-3 N10675 Nickel Alloy Tubing Tubes Pipe Supplier
  • Hastelloy C-4 N06455 Nickel Alloy Tubing Tubes Pipe
  • Hastelloy C-22 N06022 Nickel Alloy Tubing Tubes Pipe Supplier
  • Hastelloy C-276 ASTM B622 N10276 Nickel Alloy Tubing Tubes Pipe
  • Hastelloy X N06002 Nickel Alloy Tubing Tubes Pipe Factory
  • Hastelloy G Nickel Alloy Tubing Tubes Pipe
  • Hastelloy G3 N06985 Nickel Alloy Tubing Tubes Pipe
  • Nimonic Alloy Tubing
  • Nimonic 75 N06075 Alloy Tubing Tubes Pipe
  • Nimonic 80A N07080 Alloy Tubing Tubes Pipe
  • Nimonic 90 N07090 Alloy Tubing Tubes Pipe Suppliers
  • Monel Nickel Alloy Tubing
  • Nickel 200 N02200 Nickel Alloy Tubing Tubes Pipe
  • Nickel 201 N02201 Nickel Alloy Tubing Tubes Pipe
  • Monel 400 N04400 Nickel Alloy Tubing Tubes Pipe
  • Monel 401 N04401 Nickel Alloy Tubing Tubes Pipe Manufacturer
  • Monel R 405 N04405 Nickel Alloy Tubing Tubes Pipe
  • Monel K 500 N05500 Nickel Alloy Tubing Tubes Pipe Exporter
  • Brass Alloy Seamless Tubing Tube Pipes
  • C28000 Brass Alloy Seamless Tubing Tube
  • C44300 Brass Alloy Seamless Tubing Tube
  • C68700 Brass Alloy Seamless Tube Tubing
  • Copper Nickel Alloy Pipe
  • C70600 Copper Nickel Pipe
  • C71500 Copper Nickel Pipe


Related References:
1. Duplex Stainless Steel Pipe
2. Duplex Stainless Steel
3. Super-Duplex Stainless Steel
4. Principle of Duplex Stainless Steel
5. How the Austenite Ferrite Balance Achieved
6. Corrosion Resistance of Duplex Stainless Steel
7. Stress Corrosion Cracking SCC of Duplex Stainless Steel
8. Barrier to Using Duplex Stainless Steel
9. Duplex Stainless Steel Grades Comparison Table
10. S32101 | S32205/S31803 | S32304 | S32750 | S32760
11. ASTM A789/A789M
12. ASTM A 790/A 790M
13. Duplex Stainless Steel Pipe
14. Austenitic-Ferritic Stainless Steel Pipe
15. Super-Duplex Stainless Steels and their characteristics
16. 2507 S32750 Duplex Steel Pipe
17. S31803 Stainless Steel Pipe
18. S32304(1.4362) Duplex Steel
19. S32205 Stainless Steel Pipe
20. 1.4462 Stainless Steel Pipe
21. Use of stainless steel under high temperature condition refer table
22. ASTM A789 S31803 Duplex Stainless Steel Pipe
23. ASTM A789 S32205 Duplex Stainless Steel Pipe
24. Duplex Stainless Steel Pipe Specification
25. Export ASME SA789 S32750 Stainless Steel Bright Annealing Tube

ASTM A790 Stainless Steel Pipe S31803 / S32750 / S32760 SS TubingASTM A790 Stainless Steel Pipe S31803 / S32750 / S32760 SS TubingASTM A790 Stainless Steel Pipe S31803 / S32750 / S32760 SS TubingASTM A790 Stainless Steel Pipe S31803 / S32750 / S32760 SS Tubing

Product tags

astm a554 stainless steel pipes

,

tp304 stainless steel pipe

,

316 stainless steel square tubing
Send your message to this supplier
Send Now

ASTM A790 Stainless Steel Pipe S31803 / S32750 / S32760 SS Tubing

Ask Latest Price
Product Detail
Brand Name :
DELTA
Model Number :
304 316L 321 310S 314 347 2205 2507 904 630 L.etc
Certification :
ISO
Place of Origin :
China
MOQ :
500 kgs
Price :
2400 - 3500 USD/Ton
Contact Supplier

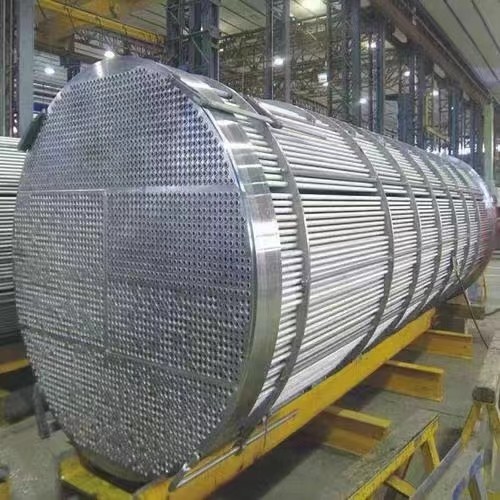

ASTM A790 Stainless Steel Pipe S31803 / S32750 / S32760 SS Tubing
ASTM A790 Stainless Steel Pipe S31803 / S32750 / S32760 SS Tubing
ASTM A790 Stainless Steel Pipe S31803 / S32750 / S32760 SS Tubing
ASTM A790 Stainless Steel Pipe S31803 / S32750 / S32760 SS Tubing

JIANGSU MITTEL STEEL INDUSTRIAL LIMITED

Verified Supplier
3 Years
jiangsu, wuxi
Business Type :
Manufacturer, Distributor/Wholesaler, Exporter
Main Products :
Stainless Steel Strip, Stainless Steel Sheet, Stainless Steel Plate
Total Annual :
>1000000
Employee Number :
>100
Certification Level :
Verified Supplier
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Stainless Steel Pipe
MachineU China Products Minerals & Metallurgy Stainless Steel Stainless Steel Pipes
Contact Supplier
Submit Requirement
