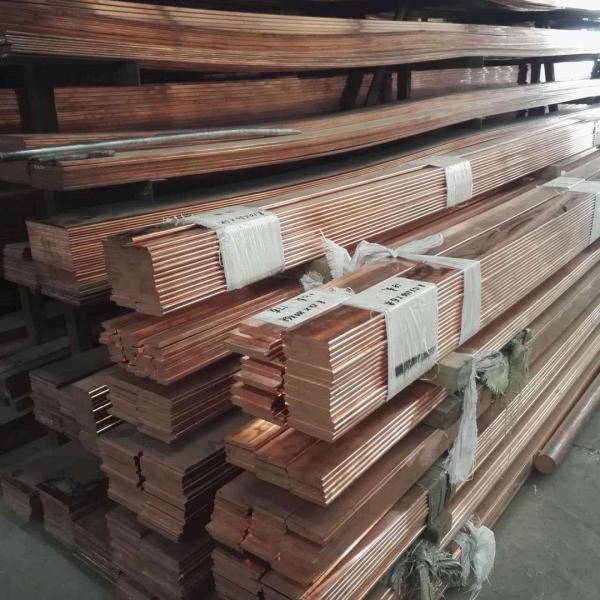

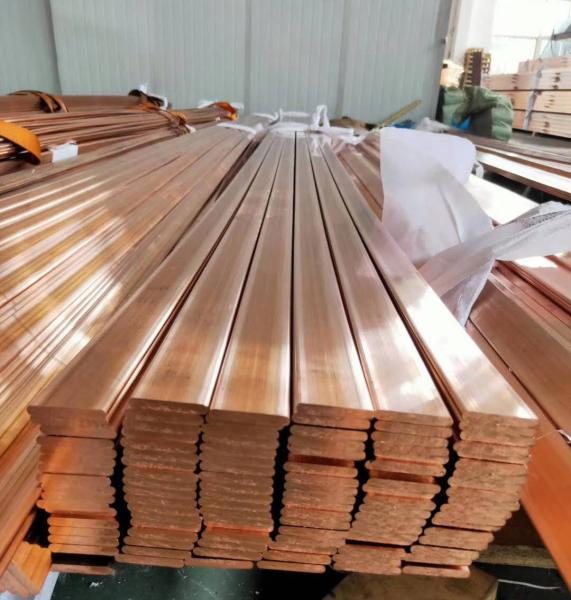

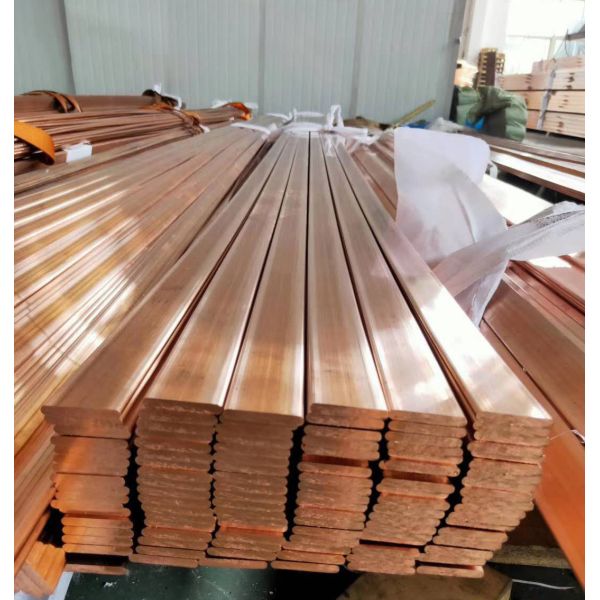

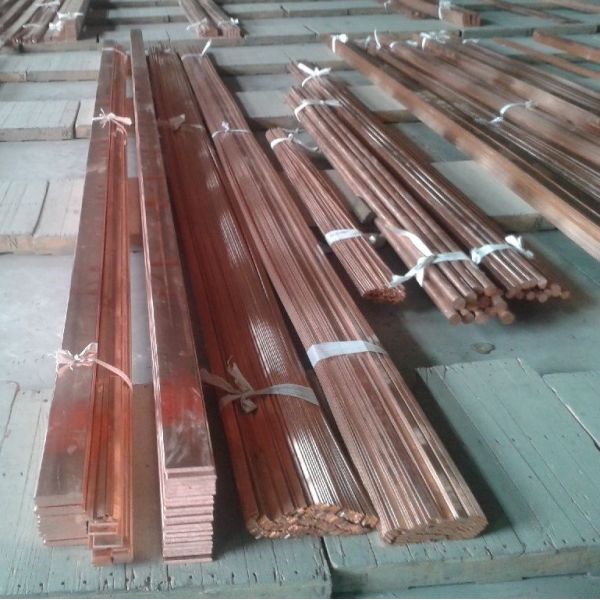

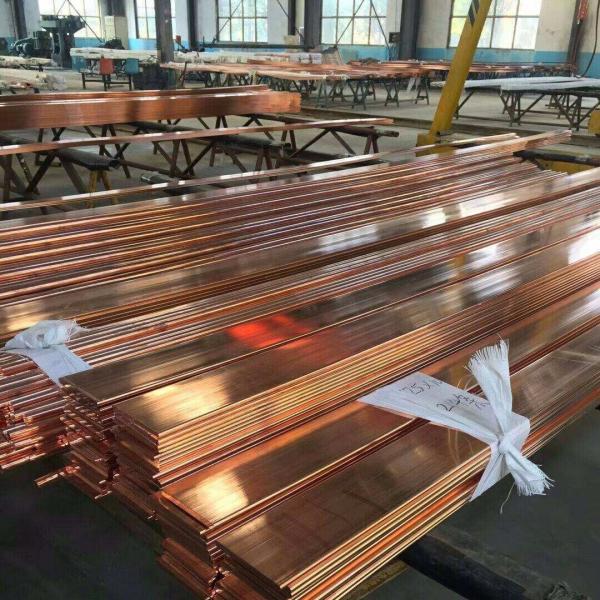

C11000 Copper Flat Bar T2 Red Copper Flat Strip JIS C1100 for Structure
C11000 Copper Flat Bar T2 Red Copper Flat Strip JIS C1100 for Structure
C11000 Copper Flat Bar T2 Red Copper Flat Strip JIS C1100 for Structure
C11000 Copper Flat Bar T2 Red Copper Flat Strip JIS C1100 for Structure
C11000 Copper Flat Bar T2 Red Copper Flat Strip JIS C1100 for Structure
C11000 Copper Flat Bar T2 Red Copper Flat Strip JIS C1100 for Structure
C11000 Copper Flat Bar T2 Red Copper Flat Strip JIS C1100 for Structure
C11000 Copper Flat Bar T2 Red Copper Flat Strip JIS C1100 for Structure
Specifications
Brand Name :
DELTA
Model Number :
C11000 / T2
Certification :
ISO
Place of Origin :
China
MOQ :
200 kgs
Price :
8 - 9 USD/Kg
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
15 Tons per month
Delivery Time :
5 - 10 days
Packaging Details :
wooden pallets
Products :
Copper flta bar
Grade :
C11000 / T2
Standard :
ASTM GB EN DIN JIS
Thickness :
3.0 - 40.0mm
Width :
within 1000mm
Length :
6m or custom as request
Certificate :
EN 10204-3.1
Other products :
Pipe , round bar, strips
Description

C11000 Copper Flat Bar T2 Red Copper Flat Strip JIS C1100 for Structure

Product name
 Copper flat bar
Copper and copper alloy grade
C11000,C10100,C12200
H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, C2100, C2200,C2300, C2400, C2600, C2680, C2720, C2800, C3560, C3601, C3713, C3771, C3561 , CuZn30, CuZn32, CuZn35, CuZn37, CuZn40 ,TU1, T2, TP2, H96, H90, H85, H80, H70, H65, H63, H62, H59, HPb63-3, HPb66-0.5, HPb62-2, HPb62-3, HPb59-3, HSn70-1, HSn62-1,QSn8-0.3, QSn4-4-4, QAl9-4, QSB-1 etc.
Size
Round Bar: 6mm - 200mm
Square Bar: 4x4mm - 200x200mm
Hex Bar: 8x8mm - 100x100mm
Flat Bar: 20x2mm - 200x20mm
Length
2m,3m,5.8m,6m, or as required.
Processing
Extrusion/cold drawn
Temper
1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Soft
Surface finish
Mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required.

C11000 Copper Bar
Product description:C11000 copper bar has good electrical and thermal conductivity, corrosion resistance and processing properties, it can be welded and brazed. Impurities containing low electrical and thermal conductivity are small, and trace oxygen has little effect on electrical conductivity, thermal conductivity and processing properties, but it is easy to cause "hydrogen disease" and is not easy to process (annealing, welding, etc.) in high temperature (>370℃) reducing

Chemical Composition

Grade Composition
Cu Pb Fe Zn
C11000 ≥99.90 - - -

Type Grade Shape Temper Dimension
O.D. Length (mm)
Extruded C11000 Round O 16-＜30 L500-5000
30-300 OD≤50 L1000-5000
OD:50-75 L500-5000
Rectangle 20-120 OD＞75-120 L500-4000
Square, hexagonal 20-120 OD＞120 L300-4000
Drwaing C11000 Round O 6-80 OD≤50 L1000～500
Square, hexagonal H 8-60 OD＞50-80 L500～5000
Square 8-60

Introduction

Copper bar is a kind of non-ferrous metal processing bar, which has better processing performance and high conductivity. It is mainly divided into brass rod (copper zinc alloy, cheaper), purple copper rod (higher copper content).

Brass rod is a rod shaped object made of copper and zinc alloy, named for its yellow color. The melting point of brass, which contains 56% to 68% copper, is 934 to 967 degrees. Brass has good mechanical properties and wear resistance, and can be used to manufacture precision instruments, ship parts, gun casings and so on. Used in air conditioning pipe, refrigerator pipe, oil pipe, water supply pipe and all kinds of mechanical materials, automotive synchronizer gear ring, Marine pump, valve, structural parts, friction accessories, etc.

Purple copper rod is named for its purple red color. It has good electric conductivity, heat conduction, corrosion resistance and processing properties. It can be welded and brazed. Characteristics: high purity, fine structure, low oxygen content. No porosity, trachoma, loose, excellent electrical conductivity, high precision of electroetching mold surface, after heat treatment process, no direction of the electrode, suitable for fine play, fine play, with good thermoelectric channel, processability, ductility, corrosion resistance and weather resistance.

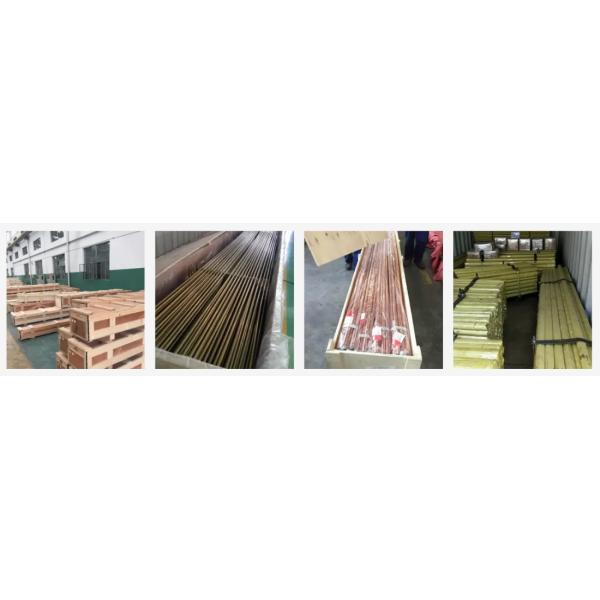

Packaging Details

Export standard package, bundled or be required.

The inner size of container is below:

20ft GP: 5.9m(length) x 2.13m(width) x 2.18m(high)about 24-26CBM

40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM

40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CB

C11000 Copper Flat Bar T2 Red Copper Flat Strip JIS C1100 for Structure

C11000 Copper Flat Bar T2 Red Copper Flat Strip JIS C1100 for StructureC11000 Copper Flat Bar T2 Red Copper Flat Strip JIS C1100 for StructureC11000 Copper Flat Bar T2 Red Copper Flat Strip JIS C1100 for StructureC11000 Copper Flat Bar T2 Red Copper Flat Strip JIS C1100 for Structure
