2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate
2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate
2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate
2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate
2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate
2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate
2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate
2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate
Specifications
Brand Name :
DELTA
Model Number :
304 316L
Certification :
ISO
Place of Origin :
China
MOQ :
500 kgs
Price :
2800 -3200 USD/Ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 Ton per week
Delivery Time :
5 - 12 days based on the quantity
Packaging Details :
wooden pallets + waterproof paper
Products :
stainless steel chequered plate
Grade :
304 316L
Standard size :
1000*2000mm 1219*2438mm 1500*6000mm
Thickness :
0.6- 10.0mm
Brand :
TISCO BAOSTEEL POSCO LISCO
Loading Port :
Shanghai Port
MOQ :
500 kgs
Packing :
wooden pallets + waterproof paper
Description

2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate

Quick Information

Steel Grade SS 304 / SS 316 / SS 201
Material STAINLESS STEEL CHEQUERED PLATE 316
Surface Treatment Hot Rolled
Material Grade SS304 / SS316 / SS202
Thickness 0.6 - 8.0mm in stock
Brand DELTA
Size (feet X feet) 8 FEET X 4 FEET / 5 FEET X 10 FEET
Raw Material SS CHEQUERED PLATE

More Informations of our Products

Item Stainless Steel Checker Plate/Stainless Steel Chequered Plate
Raw Material Stainless steel sheet (hot rolled and cold rolled)
Grades 201, 202, 301, 304, 304L, 310S, 309S, 316, 316L, 321, 409L, 410, 410S, 420, 430, 904L, etc.
Thickness 0.6mm-10mm
Stock Thickness 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm,10mm
Width 600mm – 1,800mm
Pattern Chequered pattern, diamond pattern, lentils pattern, leaves pattern, etc.
Finish 2B, BA, No. 1, No. 4, mirror, brush, hairline, chequered, embossed, etc.
Package Standard export package

Chemical Composition of Stainless Steel Checkered Plate

Grade C Mn Si P S Cr Ni N Fe
Stainless Steel Chequered 304 Plates 0.07max 2.0max 0.75max 0.045max 0.03max min: 18.0 max: 20.0 min: 8.0 max: 10.5 — —
Stainless Steel Chequered 304L Sheets 0.03max 2.0max 0.75max 0.045max 0.03max min: 18.0 max: 20.0 min: 8.0 max: 12.0 0.10 max —
Stainless Steel Chequered 304H Coil min: 18.0 max:20.0 min: 8.0 max: 10.5 min: 0.04 max:0.10 0.75 max 2.0 max 0.045 max 0.03 max 0.10 max —
Stainless Steel Chequered 316 Foil Min - - - 0 - 16.0 10.0 -
Max 0.08 2.0 0.75 0.045 0.03 18.0 14.0 0.10
Stainless Steel Chequered 316L Plates Min - - - - - 16.0 10.0 -
Max 0.03 2.0 0.75 0.045 0.03 18.0 14.0 0.10
Stainless Steel Chequered 316H Sheet Min 0.04 0.04 0 - - 16.0 10.0 -
max 0.10 0.10 0.75 0.045 0.03 18.0 14.0 -

Stainless Steel Chequered Plate Application

  • Automotive

  • Railway & Transport

  • Architecture, Building & Construction

  • Chemical & Petrochemical Industries

  • Pharmaceutical

  • Energy and Power

  • Oil and Gas Industries

  • Kitchenware and Food Processing Industries

  • Plumbing And Overhead Water Tanks

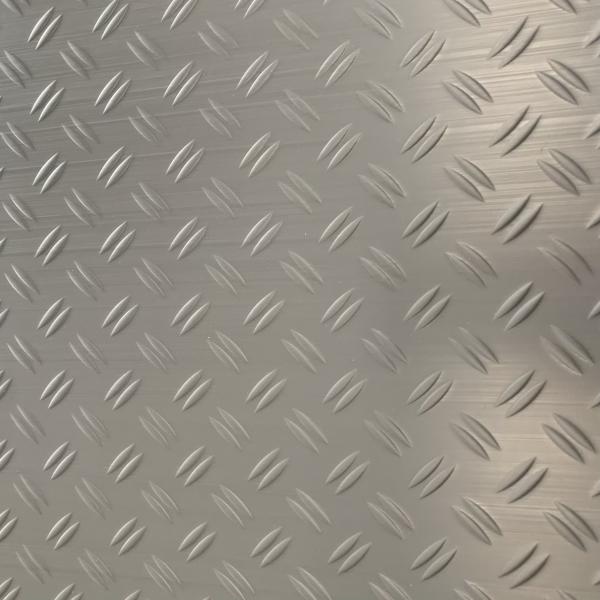

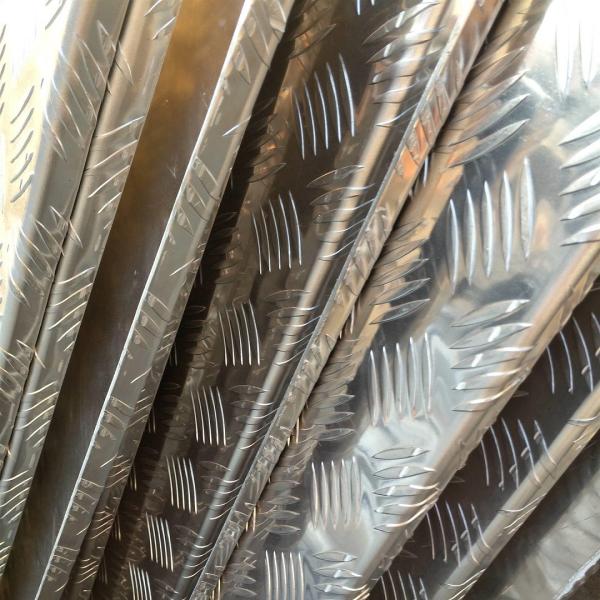

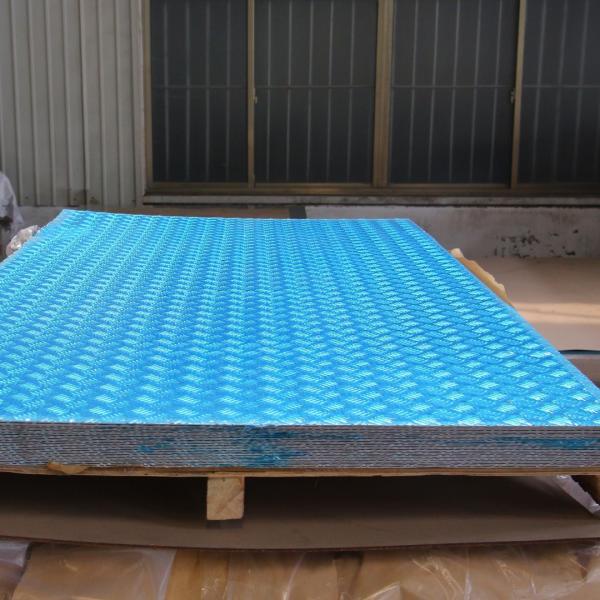

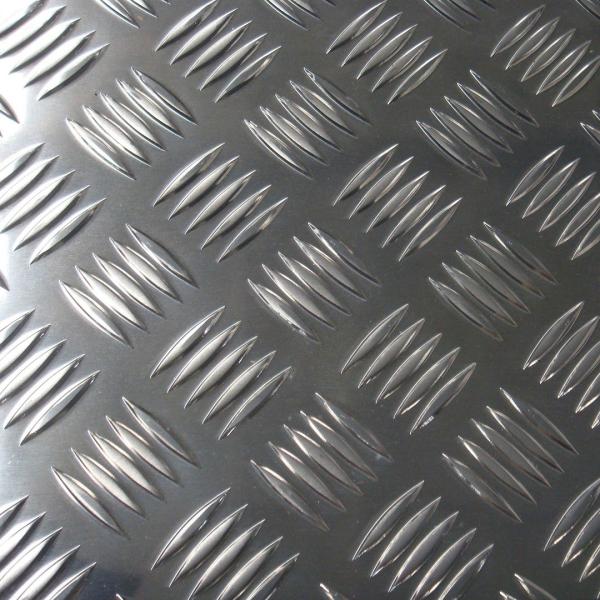

Products Picture

2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate2mm 2.5mm 3mm 4mm 5mm 6mm 8mm Thickness Stainless Steel Checkered Plate Anti-Slip Plate
