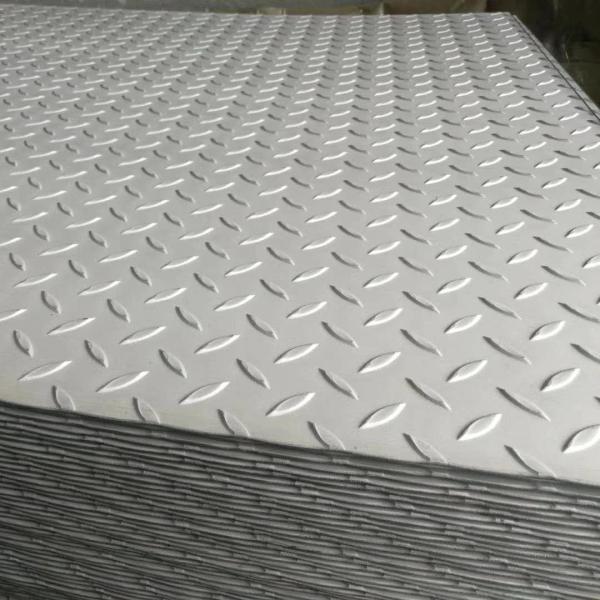

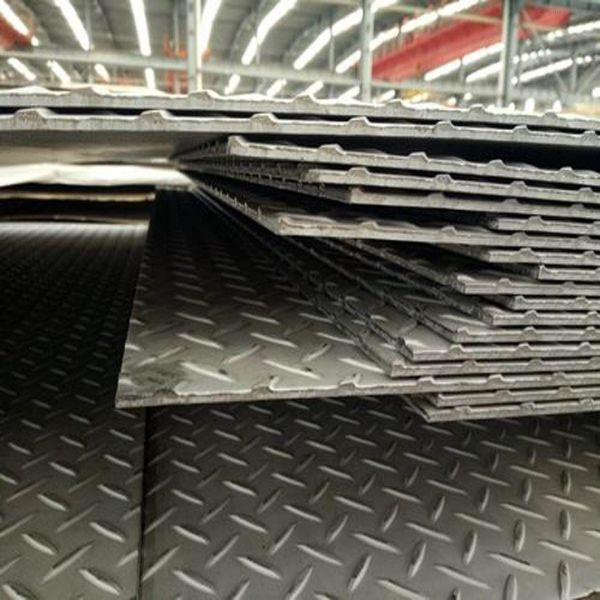

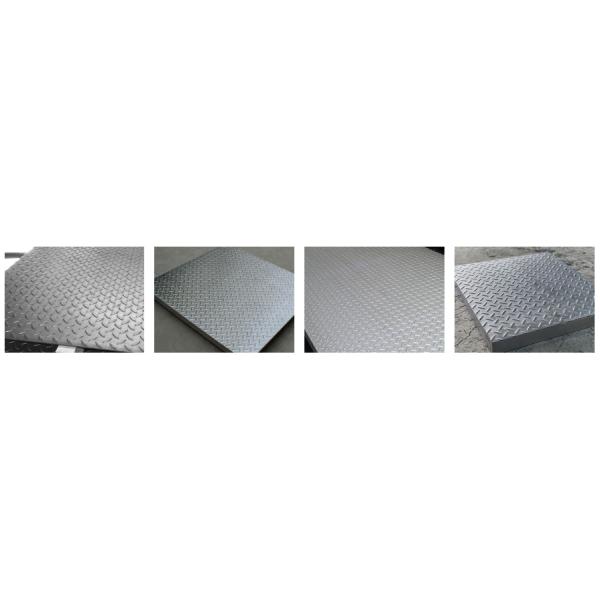

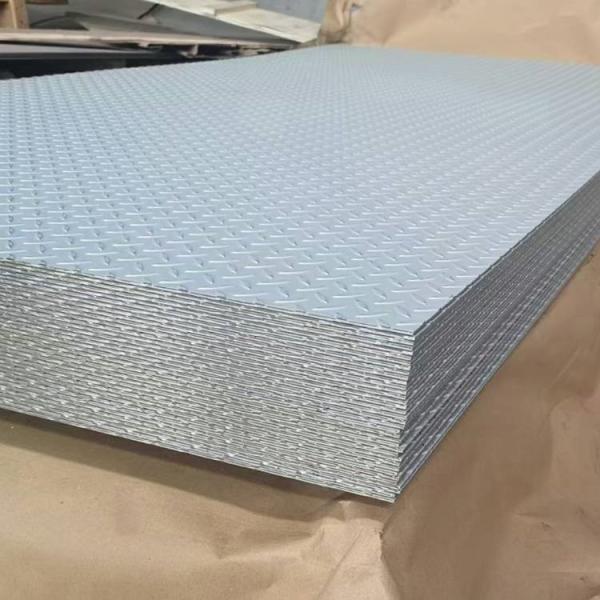

Stainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for Floor
Stainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for Floor
Stainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for Floor
Stainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for Floor
Stainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for Floor
Stainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for Floor
Stainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for Floor
Stainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for Floor
Stainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for Floor
Stainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for Floor
Specifications
Brand Name :
DELTA
Model Number :
304 316L
Certification :
ISO
Place of Origin :
China
MOQ :
500 kgs
Price :
2800 -3200 USD/Ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 Ton per week
Delivery Time :
5 - 12 days based on the quantity
Packaging Details :
wooden pallets + waterproof paper
Products :
stainless steel chequered plate
Grade :
304 316L
Standard size :
1000*2000mm 1219*2438mm 1500*6000mm
Thickness :
0.6- 10.0mm
Brand :
TISCO BAOSTEEL POSCO LISCO
Loading Port :
Shanghai Port
MOQ :
500 kgs
Packing :
wooden pallets + waterproof paper
Description

Stainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for Floor

More Informations of our Products

Item Stainless Steel Checker Plate/Stainless Steel Chequered Plate
Raw Material Stainless steel sheet (hot rolled and cold rolled)
Grades 201, 202, 301, 304, 304L, 310S, 309S, 316, 316L, 321, 409L, 410, 410S, 420, 430, 904L, etc.
Thickness 0.6mm-10mm
Stock Thickness 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm,10mm
Width 600mm – 1,800mm
Pattern Chequered pattern, diamond pattern, lentils pattern, leaves pattern, etc.
Finish 2B, BA, No. 1, No. 4, mirror, brush, hairline, chequered, embossed, etc.
Package Standard export package

Stainless Steel Chequered Plate Supplier, Stockist Of Stainless Steel Chequer Sheet, 304 Stainless Steel Tread Plate in Mumbai, SS Chequered Sheet, Jindal Stainless Diamond Plate, SS Checker Sheet, Price List Chequered Steel Plate, 6mm Chequered Plate Price, Chequered Steel Plate in KG, SS Tear Plate Dealer

Stainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for Floor

Stainless Steel Checkered Plate Manufacturers, Polished Stainless Steel Checkered Plate, Supplier of SS Checker Plate, Checkered Sheet Price, Stainless Diamond Chequer Plate

Stainless Steel Chequered Sheet Chemical Composition

GRADE C MN P S SI CR N NI FE
SS CHEQUERED 304 PLATES 0.07max 2.0max 0.045max 0.03max 0.75max min: 18.0 max: 20.0 - min: 8.0 max: 10.5 -
SS CHEQUERED 304L SHEETS 0.03max 2.0max 0.045max 0.03max 0.75max min: 18.0 max: 20.0 0.10 max min: 8.0 max: 12.0 -
SS CHEQUERED 304H PLATE min: 18.0 max:20.0 min: 8.0 max: 10.5 0.75 max 2.0 max min: 0.04 max:0.10 0.045 max 0.10 max 0.03 max -
SS CHECKERED 316 SHEETS MIN - - 0 - - 10.0 16.0 -
MAX 0.08 0.75 0.045 2.0 0.03 14.0 18.0 0.10
SS CHECKER 316L PLATES MIN - - - - - 10.0 16.0 -
MAX 0.03 0.75 0.045 2.0 0.03 14.0 18.0 0.10
SS CHEQUERED 316H SHEET MIN 0.04 0 - 0.04 - 10.0 16.0 -
MAX 0.10 0.75 0.045 0.10 0.03 14.0 18.0 -

Stainless Steel Checkered Plate Mechanical Properties

Grade Density Yield Strength (0.2%Offset) Tensile Strength Melting Point Elongation
Stainless Steel 304 / 304L Checkered Plate 8.0 g/cm3 Psi 30000, MPa 205 Psi 75000, MPa 515 1400 °C (2550 °F) 35 %
Stainless Steel 304H Checkered Sheet 8.0 g/cm3 Psi 30000 , MPa 205 Psi 75000 , MPa 515 1400 °C (2550 °F) 40 %
Stainless Steel 310 Checker Plate 7.9 g/cm3 Psi 30000 , MPa 205 Psi 75000 , MPa 515 1402 °C (2555 °F) 40 %
Stainless Steel 316 Checkered Sheet 8.0 g/cm3 Psi 30000 , MPa 205 Psi 75000 , MPa 515 1400 °C (2550 °F) 35 %
Stainless Steel 316L Checker Plate 8.0 g/cm3 Psi 30000 , MPa 205 Psi 75000 , MPa 515 1399 °C (2550 °F) 35 %
Stainless Steel 317 Checker Sheets 7.9 g/cm3 Psi 30000, MPa 205 Psi 75000, MPa 515 1400 °C (2550 °F) 35 %
Stainless Steel 321 Checkered Plates 8.0 g/cm3 Psi 30000, MPa 205 Psi 75000, MPa 515 1457 °C (2650 °F) 35 %
Stainless Steel 347 Checker Sheets 8.0 g/cm3 Psi 30000 , MPa 205 Psi 75000 , MPa 515 1454 °C (2650 °F) 35 %
Stainless Steel 904L Checker Plate 7.95 g/cm3 Psi 32000, MPa 220 Psi 71000, MPa 490 1350 °C (2460 °F) 35 %

Equivalent Grades of 304 SS Chequered Steel Plate

STANDARD UNS WERKSTOFF NR. BS JIS EN GOST
SS 304 S30400 1.4301 304S31 SUS 304 X5CrNi18-10 08Х18Н10
SS 304L S30403 1.4306 / 1.4307 3304S11 SUS 304L X2CrNi18-9 / X2CrNi19-11 03Х18Н11
SS 304H S30409 1.4301 - - - -
SS 310 S31000 1.4841 310S24 SUS 310 X15CrNi25-20 20Ch25N20S2
SS 310S S31008 1.4845 310S16 SUS 310S X8CrNi25-21 20Ch23N18
SS 310H S31009 - - - - -
SS 316 S31600 1.4401 / 1.4436 316S31 / 316S33 SUS 316 X5CrNiMo17-12-2 / X3CrNiMo17-13-3 -
SS 316L S31603 1.4404 / 1.4435 316S11 / 316S13 SUS 316L X2CrNiMo17-12-2 / X2CrNiMo18-14-3 03Ch17N14M3 / 03Ch17N14M2
SS 316H S31609 1.4401 - - - -
SS 316Ti S31635 1.4571 320S31 SUS 316Ti X6CrNiMoTi17-12-2 08Ch17N13M2T
SS 317 S31700 1.4449 - SUS 317 - -
SS 317L S31703 1.4438 - SUS 317L X2CrNiMo18-15-4 -
SS 321 S32100 1.4541 - SUS 321 X6CrNiTi18-10 -
SS 321H S32109 1.4878 - SUS 321H X12CrNiTi18-9 -
SS 347 S34700 1.4550 - SUS 347 X6CrNiNb18-10 08Ch18N12B
SS 347H S34709 1.4961 - SUS 347H X6CrNiNb18-12 -
SS 904L N08904 1.4539 904S13 SUS 904L X1NiCrMoCu25-20-5 STS 317J5L

Stainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for FloorStainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for FloorStainless Steel Chequered Plate & Sheet Thickness 3mm 4mm 5mm for Floor

Types of Stainless Steel Chequered Sheet

• SS Checkered Sheet
• SS Chequer Sheet
• Stainless Steel Checkered Plate
• 316 SS Chequer Plate
• Stainless Steel Checkered Plate
• Stainless Steel Checker Plate
• 304 Stainless Steel Tread Plate
• SS Diamond Chequer Plate
• Stainless Steel Checkered Sheet
• 304 SS Chequered Plates
• Stainless Steel Tear Plate
• SS Floor Plate in China
• Stainless Steel Diamond Plate
• Stainless Steel Tread Plate
• Stainless Steel Checker Plate
• Stainless Steel Checker Sheet
• Metal Checkered Plate
• Stainless Steel Checker Plate
• 316 Stainless Steel Checkered Sheet
• Stainless Steel Chequer Sheet
• Stainless Steel Checker Sheet
• Stainless Steel Tear Plate
• Stainless Steel Floor Plate
• SS 304 Diamond Chequer Plate
