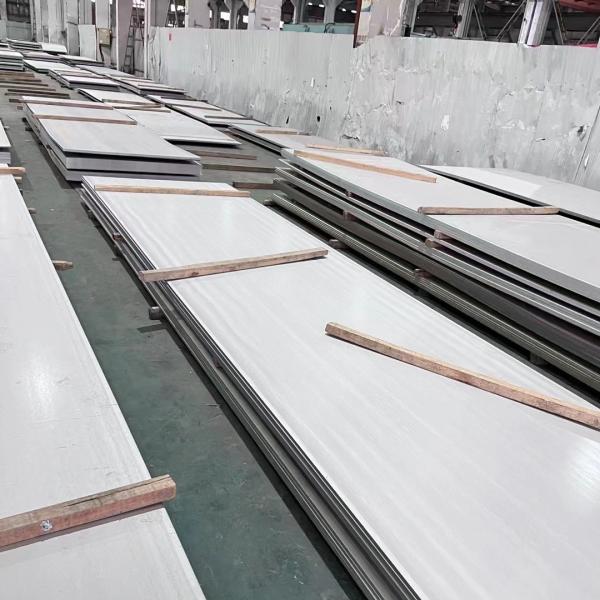

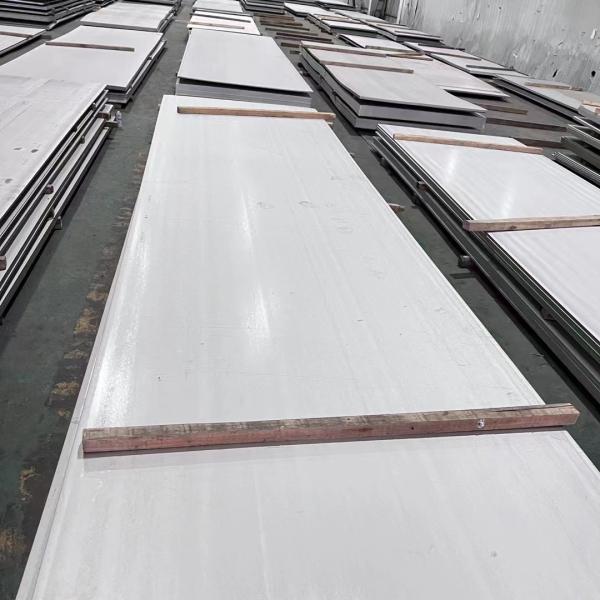

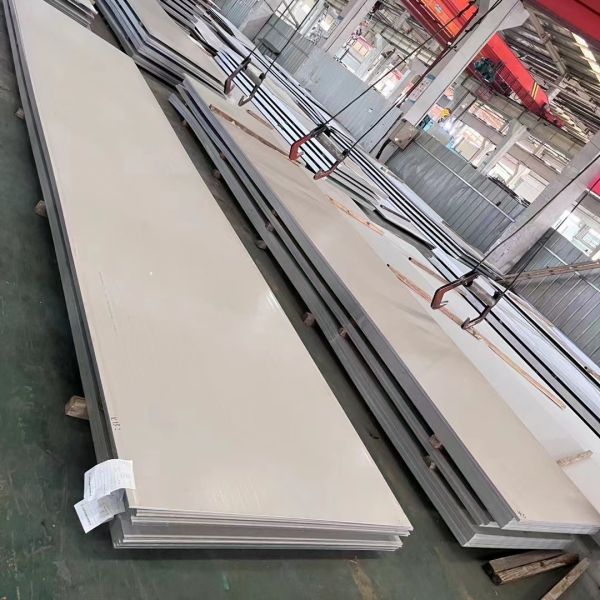

DIN EN 1.4640 Stainless Steel Plates SS Plate X5CrNiCu 19-6-2 Stainless Chemical Data
Quick Informations
Products Name | 1.4640 Stainless Steel Plate | Standard | EN 10088-2 |
Thickness | 0.4 - 40.0mm | Surface | 2B NO.1 or processing other surface |
Standard Size | 1219*2438mm 1500*6000mm | Brand | TISCO BAOSTEEL POSCO |
More Informations of our Products
Item | Stainless Steel Plates / Stainless Steel Sheets |
Main Grades | 201, 202, 301, 304, 304L, 310S, 309S, 316, 316L, 321, 409L, 410, 410S, 420, 430, 904L, etc. |
Standard | ASTM GB JIS EN DIN BS |
Thickness | 0.4mm-40mm |
Stock Thickness | 0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm,10mm,12 - 40mm |
Width | 1000mm 1219mm 1500mm or cutting any size as request |
Standard size | 1000*2000mm 1219*2438mm 1500*6000mm 2000*6000mm |
Finish | 2B, BA, No. 1, No. 4, mirror, brush, hairline, chequered, embossed, etc. |
Package | Standard export package |
EN 1.4640 stainless steel is an austenitic stainless steel formulated for primary forming into wrought products. 1.4640 is the EN numeric designation for this material. X5CrNiCu19-6-2 is the EN chemical designation.
It has a fairly high ductility among wrought austenitic stainless steels. In addition, it has a moderately low embodied energy and a moderately low base cost.
The properties of EN 1.4640 stainless steel include two common variations. This page shows summary ranges across both of them. For more specific values, follow the links immediately below. The graph bars on the material properties cards further below compare EN 1.4640 stainless steel to: wrought austenitic stainless steels (top), all iron alloys (middle), and the entire database (bottom). A full bar means this is the highest value in the relevant set. A half-full bar means it's 50% of the highest, and so on.
Among wrought stainless steels, the composition of EN 1.4640 stainless steel is notable for containing a comparatively high amount of manganese (Mn) and including copper (Cu). Manganese is used to improve ductility at elevated temperatures. It also permits a higher nitrogen content than would otherwise be possible. Copper is used to improve resistance to acids, and to improve formability.
Grade | C | Si | Mn | P | S | Cr | Ni | N | Cu |
1.4640 | 0.03-0.08 | 0.50 | 1.50-4.00 | 0.045 | 0.015 | 18.0-19.0 | 5.50-6.90 | 0.03-0.11 | 1.30-2.00 |
Answer and Questions
Q: Are you a manufacturer?
A: Yes , we are a manufacturer, We have own factory, which is located in TIANJIN,CHINA. We have a leading power in producing and
exporting galvanized steel coil,galvalume steel coil,ppgi etc. We promise that we are what you are looking for.
Q:Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .
Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication.
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to
quantity.
Q:How can we get the offer?
A:Please offer the specification of the product,such as material,size,shape,etc.So wecan give the best offer.
Q:Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q: How do you make our business long-term and good relationship ?
A: 1.We keep good quality and competitive price to ensure our customers' benefit.
2.We respect every customer as our friend and we sincerrly do business and make friends with them, no matter where they come from.
