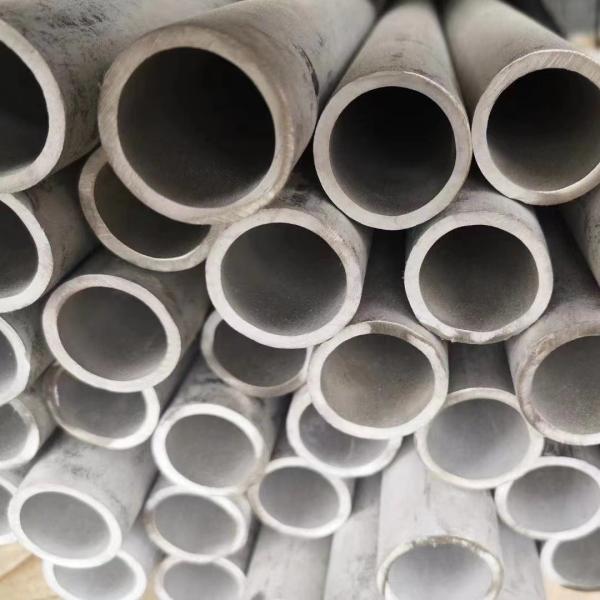

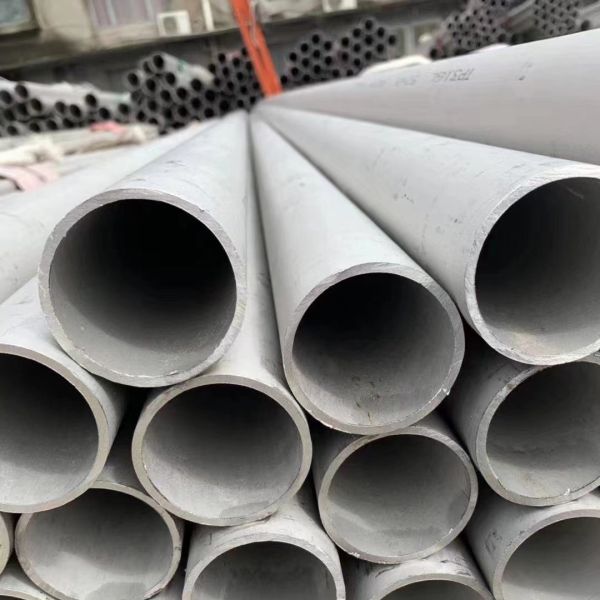

17-4ph Stainless Steel Pipe Seamless Tube AISI 630 Solid Solution SS Pipe
17-4ph Stainless Steel Pipe Seamless Tube AISI 630 Solid Solution SS Pipe
17-4ph Stainless Steel Pipe Seamless Tube AISI 630 Solid Solution SS Pipe
17-4ph Stainless Steel Pipe Seamless Tube AISI 630 Solid Solution SS Pipe
17-4ph Stainless Steel Pipe Seamless Tube AISI 630 Solid Solution SS Pipe
17-4ph Stainless Steel Pipe Seamless Tube AISI 630 Solid Solution SS Pipe
17-4ph Stainless Steel Pipe Seamless Tube AISI 630 Solid Solution SS Pipe
17-4ph Stainless Steel Pipe Seamless Tube AISI 630 Solid Solution SS Pipe
Specifications
Brand Name :
DELTA
Model Number :
17-4PH
Certification :
ISO
Place of Origin :
China
MOQ :
500 kgs
Price :
4650-5760 USD/Ton
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10 Ton per week
Delivery Time :
5 - 12 days based on the quantity
Packaging Details :
standard packing for export
Products :
Stainless Steel Pipe
Grade :
17-4PH
Standard :
ASTM GB EN
Length :
6m or custom cutting any length as request
Diameter :
DN10 - DN400
Wall thickness :
SCH10 - XXS or unstandard size
Type :
seamless pipe
Service :
cutting, polishing
application :
Industrial
Packing :
wooden box or PP bag
Description

17-4ph Stainless Steel Pipe Seamless Tube AISI630 Solid Solution SS Pipe

Item Stainless Steel Pipe / Tube
Steel Grade 201, 202, 301, 302, 303, 304, 304L, 304H, 309, 309S, 310S, 316, 316L, 317L, 321,
409L, 410, 410S, 420, 420J1, 420J2, 430, 444, 441,17-4ph
904L, 2205, 2507, 2101, 2520, 2304, 254SMO, 253MA, F55
Standard ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,GB13296
Surface Polishing, Annealing, Pickling, Bright, Hairline, Mirror, Matte
Type Hot rolled , Cold rolled
stainless steel round pipe/tube
Size Wall thickness 1mm-150mm(SCH10-XXS)
Outer diameter 6mm-2500mm (3/8"-100")
stainless steel square pipe/tube
Size Wall thickness 1mm-150mm(SCH10-XXS)
Outer diameter 4mm*4mm-800mm*800mm
stainless steel rectangular pipe/tube
Size Wall thickness 1mm-150mm(SCH10-XXS)
Outer diameter 6mm-2500mm (3/8"-100")
Length 4000mm,5800mm,6000mm,12000mm,or as required.
Trade terms Price terms FOB,CIF,CFR,CNF,Ex-work
Payment terms T/T, L/C, Western union, Paypal, DP, DA
Delivery time Prompt delivery or as the order quantity.
Export to Ireland,Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Canada,USA, Brazil,Thailand,Korea,Italy,India,Egypt,Oman,Malaysia,Kuwait,Canada, Viet Nam, Peru,Mexico,Dubai, Russia,etc
Package Standard export seaworthy package,or as required.
Application Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper making,shipbuilding,boiler fields.
Pipes also can be made according to the customer's required.
Contact If you have any questions,please feel free to contact me.
Container size 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM

GENERAL PROPERTIES

Alloy 17-4 is a chromium-copper precipitation hardening stainless steel that is used for applications requiring high strength and a moderate level of corrosion resistance. It is one of the most widely used precipitation hardening grades, as it has high strength hardness up to about 572°F while demonstrating good corrosion resistance in all heat treated conditions. Alloy 17-4 has adequate resistance to atmospheric corrosion or in diluted acid salts where its corrosion resistance is equivalent to Alloy 304 or 430. Alloy 17-4 can be heat treated to a variety of temperatures to develop a wide range of properties. Its mechanical properties can be optimized with heat treatment where very high yield strength up to 180 ksi can be achieved. Alloy 17-4 should not be used at temperatures above 572°F or at very low temperatures.

Tech Steel & Materials offers Stainless Steel 17-4PH in two sub-type specifications and multiple shapes/forms:

  • AMS 5604 (Plate, Sheet, and Strip)
  • AMS 5643 (Bar, Forging, Ring, Tubing, and Wire)

Stainless Steel 17-4PH Chemical Composition

Element Min (%) Max (%)
Carbon, C – 0.07
Manganese, Mn – 1
Silicon, Si – 1
Sulfur, S – 0.03
Phosphorus, P – 0.04
Chromium, Cr 15 17.5
Niobium + Tantalum, Nb + Ta 0.15 0.45
Nickel, Ni 3.0 5.0
Copper, Cu 3.0 5.0
Iron, Fe – *Balance

Specifications: UNS S17400

APPLICATIONS:

Alloy 17-4 is commonly used for applications requiring high strength and a moderate level of corrosion resistance. Some applications that frequently use Alloy 17-4 include:

  • Aircraft
  • Nuclear waste casks
  • Paper mills
  • Oil fields
  • Mechanical components
  • Chemical process components
  • Food industry
  • Aerospace
