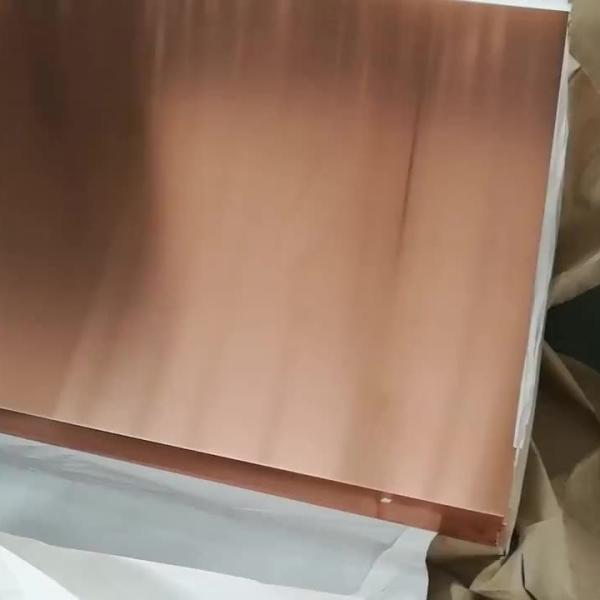

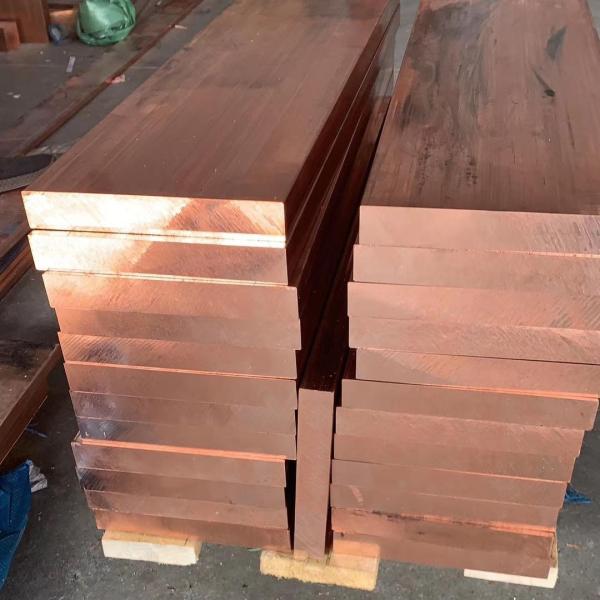

ASTM Grade C10200 / 102 / C1020 Copper Plate Thickness 0.4 - 200mm Copper Sheet

Application of C10200 Copper

Electrical/electronic and solar applications where strength is not required. Additional applications are downspouts, gutters, roofing, gaskets, heat sinks, busbars, nails, printing rolls, rivets, etc. parts.

Description of C10200 Copper

In general, copper alloys exhibit good to excellent corrosion resistance and high thermal conductivity and very high electrical conductivity. Pure copper's electrical conductivity is so high that many metals are measured against it in the form of the IACS (International Annealed Copper Standard).

CHEMISTRY TYPICAL

• UNS# COPPER* OXYGEN SILVER PHOSPHORUS ARSENIC
• C10100 99.99 min 0.0005 max 0.0005 max
• C10200 99.95 min 0.001 max 0.0003 max
• C10400 99.95 min 0.001 max 0.027 min
• C10500 99.95 min 0.001 max 0.034 min
• C10700 99.95 min 0.001 max 0.085 min
• C11000 99.90 min
• C12000 99.90 min 0.004-0.012
• C12100 99.90 min 0.014 0.004-0.012
• C15000 Balance* 0.10-0.20 Zr
• C15500 99.75 min 0.027-0.10 0 .040-0 .080 0.08-0.13 Mg
• * Contact Ulbrich Wire for request regarding the availability of other copper alloys.
• * Contact Ulbrich Technical Department for limits for additional trace elements and impurity levels.
• * Copper Values include Silver.
• * Copper plus named elements.

PHYSICAL PROPERTIES

Typical Density: 0.332 lbs/in3, 8.92 g/cm3

Electrical Conductivity:(% IACS at 68° F 20°C, annealed): 85-101%

Specific Heat: BTU/lb-° F (J/g-°C): 0.0920 (0.385)

Mean Coefficient of Thermal Expansion: µin/in-° F (µm/m-°C)
68 - 572 °F (20 - 300 °C): 9.8 (17.6)

Thermal Conductivity: BTU-in/hr-ft2-° F (W/m•K): 2712 (390.8)

Modulus of Elasticity: KSI (MPa)
17 x 103 in tension

Melting Range: 1981 °F (1083 °C)

FORMS

• Plate
• Sheet
• Bars
• Pipes

MECHANICAL PROPERTIES AT ROOM TEMPERATURE

PROPERTIES: ANNEALED TYPICAL

Ultimate Tensile Strength: 26 - 38 KSI (179 - 262 MPa)

Yield Strength: 10 KSI (69 MPa) Nominal

Elongation: 35%
