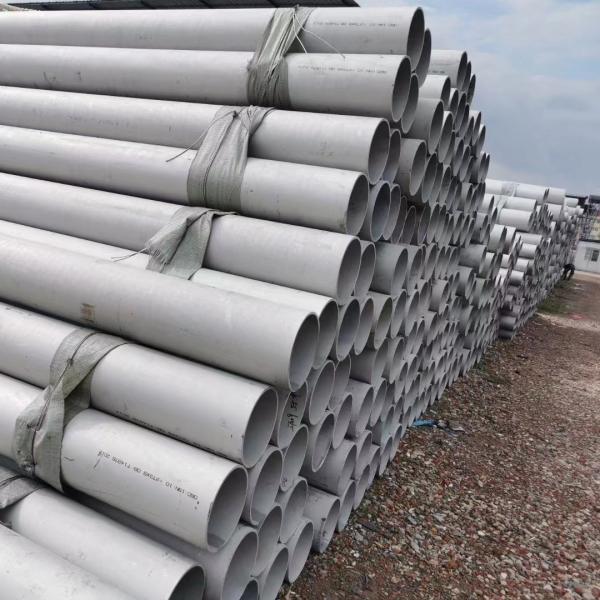

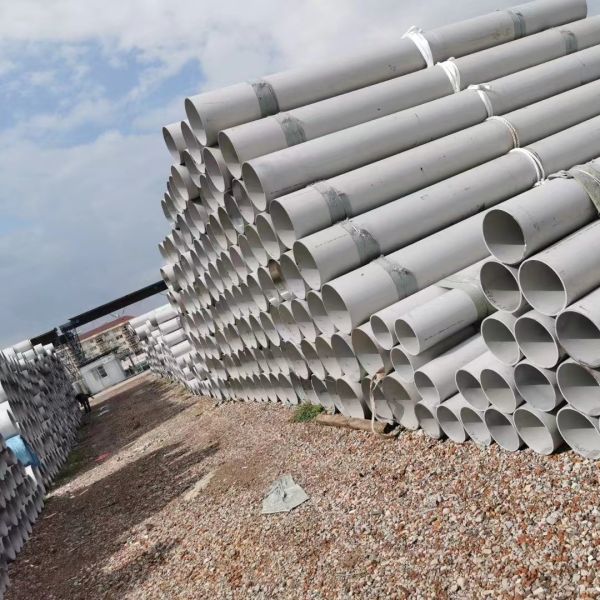

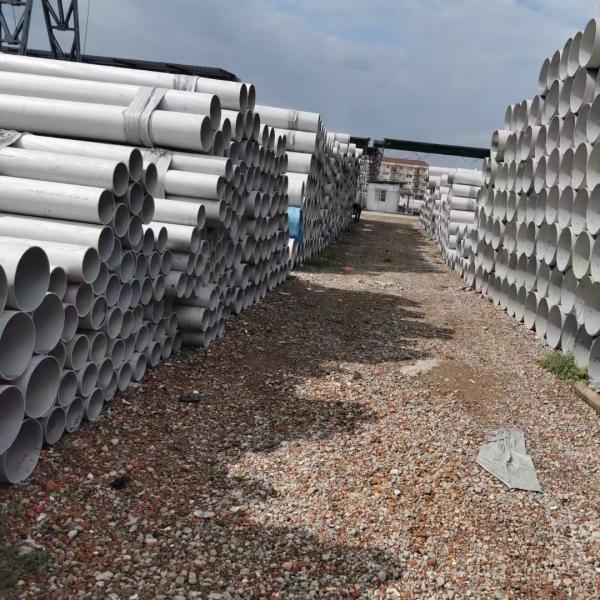

Large Diameter DN200 - DN500 SCH40S SCH10S Incoloy 800H Pipe Tube in 6m Length
Large Diameter DN200 - DN500 SCH40S SCH10S Incoloy 800H Pipe Tube in 6m Length
Large Diameter DN200 - DN500 SCH40S SCH10S Incoloy 800H Pipe Tube in 6m Length
Large Diameter DN200 - DN500 SCH40S SCH10S Incoloy 800H Pipe Tube in 6m Length
Large Diameter DN200 - DN500 SCH40S SCH10S Incoloy 800H Pipe Tube in 6m Length
Large Diameter DN200 - DN500 SCH40S SCH10S Incoloy 800H Pipe Tube in 6m Length
Large Diameter DN200 - DN500 SCH40S SCH10S Incoloy 800H Pipe Tube in 6m Length
Large Diameter DN200 - DN500 SCH40S SCH10S Incoloy 800H Pipe Tube in 6m Length
Specifications
Brand Name :
DELTA
Model Number :
UNS N08810 / 1.4958
Certification :
ISO
Place of Origin :
China
MOQ :
500 kgs
Price :
40-45 USD/Kg
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3 Ton per week
Delivery Time :
5 - 12 days based on the quantity
Packaging Details :
standard packing for export
Products :
Nickel Alloy Pipe Tube
Grade :
UNS N08810
Diameter :
DN200 - DN500
Standard size :
1000*2000mm 1219*2438mm
Standard :
ASTM EN
Service :
Cutting
Loading Port :
Shanghai Port
Surface :
2B NO.1 NO.4 NO.8
Description

Large Diameter DN200 - DN500 SCH40S SCH10S Incoloy 800H Pipe Tube in 6m Length

Material
Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy
Shape
Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet


Grade
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L
Others:253Ma,254SMo,654SMo,F50(UNSS32100)F60,F61,F65,1J22,N4,N6 etc
Alloy : Alloy 20/28/31
Hastelloy:HastelloyB/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g
Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617,Hastelloy C,
Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602,
Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665
Haynes: Haynes 230/556/188
Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20
Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851,
Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 /
UNS N06600 / DIN W. Nr. 2.4816
Incoloy: Incoloy 800/800H/800HT/825/925/926;
GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044
Monel: Monel 400/K500/R405
Nitronic: Nitronic 40/50/60;
Nimonic: Nimonic 75/80A/90/A263 ;


Specification
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm


Product
Characteristics
1.According to the preparation process can be divided into deformation superalloys,
casting superalloys and powder metallurgy superalloys.
2.According to the strengthening mode, there are solid solution strengthening type, precipitation
strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc..
Standard
GB,AISI,ASTM,DIN,EN,SUS,UNS etc
Inspection
ISO,SGS,BV and so on.

Incoloy 800H

Incoloy 800H, also known as “Alloy 800H”, is designated as UNS N08810 or DIN W.Nr. 1.4958. It has almost the same chemical composition as Alloy 800 except that it requires a higher carbon addition resulting in improved high-temperature properties. Compared to Incoloy 800, it has better creep and stress-rupture characteristics in the 1100°F [592°C] to 1800°F [980°C] temperature range. While Incoloy 800 is usually annealed at at approximately 1800°F [980°C], Incoloy 800H should be annealed at approximately 2100°F [1150°C]. Besides, Alloy 800H has a coarser average grain size in accordance with ASTM 5.

1. Chemical Composition Requirements

The Chemical Composition of Incoloy 800, %
Nickel 30.0-35.0
Cromium 19.0-23.0
Iron ≥39.5
Carbon 0.05-0.10
Aluminum 0.15-0.60
Titanium 0.15-0.60
Manganese ≤1.50
Sulfur ≤0.015
Silicon ≤1.00
Copper ≤0.75
Al+Ti 0.30-1.20

2. Mechanical Properties of Incoloy 800H

Tensile Strength, min. Yield Strength, min. Elongation, min. Hardness, min.
Mpa ksi Mpa ksi % HB
600 87 295 43 44 138

3. Physical Properties of Incoloy 800H

Density Melting Range Specific Heat Electrical Resistivity
g/cm3 °C °F J/kg. k Btu/lb.°F µΩ·m
7.94 1357-1385 2475-2525 460 0.110 989

4. Product Forms and Standards of Incoloy 800H

Product From Standard
Rod and Bar ASTM B408, EN 10095
Plate, Sheet & Strip ASTM A240, A480, ASTM B409, B906
Seamless Pipe & Tube ASTM B829, B407
Welded Pipe & Tube ASTM B514, B515, B751, B775
Welded fittings ASTM B366
Forging ASTM B564, DIN 17460
