Specifications
Brand Name :
TISCO
Model Number :
201 304 304L 310S 316L 317L 321.etc
Certification :
ISO
Place of Origin :
China
MOQ :
500 kgs
Price :
2100 - 3200 USD/Ton
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10 Ton per week
Delivery Time :
5 - 12 days based on the quantity
Packaging Details :
standard packing for export
Products :
stainless steel perforated sheet
Grade :
304 201 316L 430 410S.etc
Hole Diameter :
1.0 - 20.0mm
Size :
1000*2000mm 1219*2438mm 1500*3000mm
Thickness :
0.3 - 3.0mm
Type :
cold rolled
Surface :
2B
application :
industrial
Packing :
wooden pallets
Description

Slotted Hole Perforated Metal Sheet Stainless STeel , Galvanized Steel , Mild Steel Long Hole Sheet

Products Specification of our Perforated Metal Sheet

Name Perforated Metal Sheet
Material SS 304 316L 201;Aluminum;Aluminum alloy;Iron;Gavanized steel;Q235,Q195;Mn steel
Hole Diameter 0.1-30mm (0.1-0.4mm is etching hole;More than 30mm is laser cutting)
Size Normal size is 1x2m 1.22x2.44m 1.5x3m (Other size we can customize.)
Thickness 0.1-10mm
Coating PVC Coating; Powder spraying; Galvanized Coating;
Applications Industrial proccesing, Machinery, Food processing, Building & Constructions, Agriculture,Communication industries, automotive industries, hardward&household industries.
Hole shape Round perforation, Square perforation, Rectangular, Hexagonal perforation, Slots perforation
Angle degree 45°;60°;90°

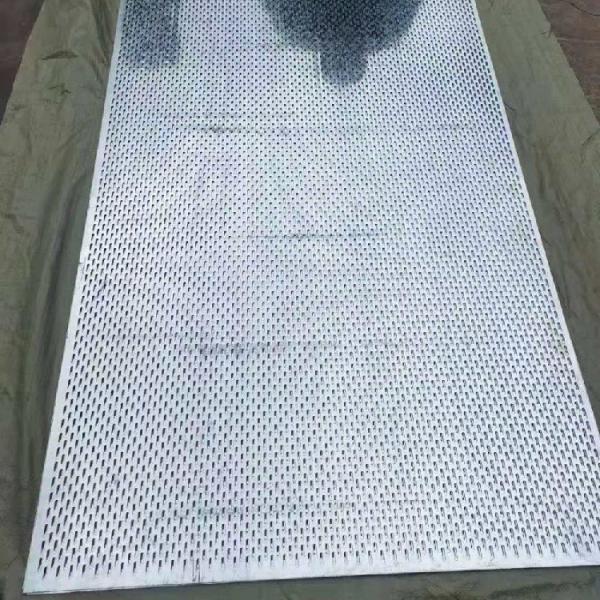

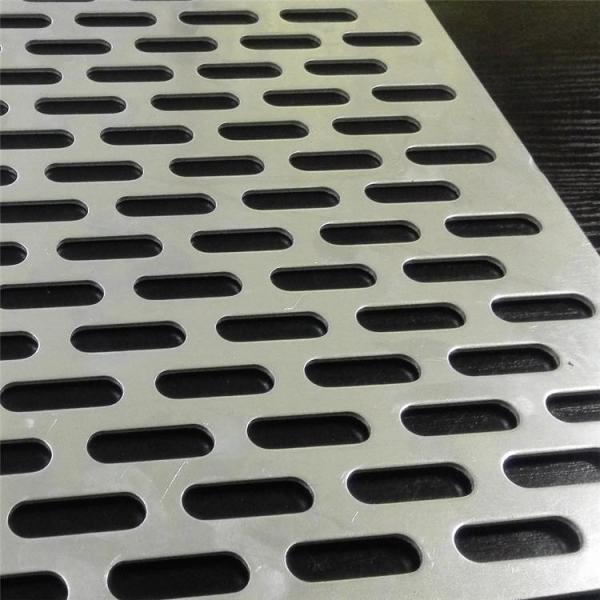

Slotted hole perforated metal sheet pattern is an extended hole with round or square ends.

This hole shape is designed with the concept of allowing the necessary amount of material to pass through the metal sheet while maintaining the desired strength and performance characteristics.

Popular sheet thickness ranges from 26 gauge through 1/4″ plate(thicker plates are available on special order). Common hole size ranges from 0.02 to 1″ and greater.

Features & Benefits

  • Decorative Appearance
    Any perforation pattern can be used for decorative purposes, and slotted holes are no exception. Oval or rectangular slotted holes, both designs provide a distinct, unique look for the final application.
  • Functional Design
    Slotted perforated metal has a special design that allows a large amount of material to pass through without adversely affecting the overall strength and performance of the metal sheet.
  • Available Materials
    The most common materials used for slotted perforated panels include mild steel, carbon steel, stainless steel, aluminum, copper, brass, and any other materials suitable for perforation.

Application of Slotted Hole Perforated Sheet

  • Perforated sheets are used extensively for both industrial and architectural applications:
  • Industry for sieving
  • Industry for protection & ventilation
  • Architecture for function and appearance both internally and externally including:
  • Energy saving benefits, sound control and lighting effects

Slotted Hole Perforated Metal Sheet Specification

Description Hole dia Hole pitch Open area Thickness
(mm) (mm) (%) 1.0mm 1.5mm 2.0mm 2.5mm 3.0mm
LR1 X 10Z 1 x 10 7 x 14 20% **
LR1.5 X 12Z 1.5 x 12 10.3 x 16 21% **
LR1.5 X 20Z 1.5 x 20 4 x 50 30% **
LR2 X 10Z 2 x 10 10 x 15 26% **
LR2 X 20Z 2 x 20 10 x 25 31% **
LR3 X 20Z 3 x 20 6 x 26 74% ** ** **
LR3 X 20Z 3 x 20 14 x 26 32% ** ** **
LR4 X 20Z 4 x 20 10 x 25 61% ** ** ** **
LR4 X 25Z 4 x 25 6.5 x 45 66% ** ** ** **
LR4.5 X 25Z 4.5 x 25 7 x 60 51% ** ** ** **
LR4.75 X 20Z 4.75 x 20 15 x 25 48% ** ** ** **
LR5 X 20Z 5 x 20 20 x 25 38% ** ** ** **
LR6 X 20Z 6 x 20 24 x 24.8 38% ** ** ** ** **
LR 6 X 20Z 6 x 20 26 x 40 22% ** ** ** ** **
LR7 X 20Z 7 x 20 13 x 47.5 42% ** ** ** ** **
LR7 X 25Z 7 x 25 30 x 30 37% ** ** ** ** **
LR8 X 40Z 8 x 40 26 x 47.5 50% ** ** ** ** **
LR10 X 40Z 10 x 40 20 x 50 76% ** ** ** ** **
LR2.1 X 20U 2.1 X20 5 X 25 33% ** **
LR2.4 X 20U 2.4 X 20 5 X 25 38% ** **
LR3 X 20U 3 X 20 5.5 X 25 41% ** ** **
LR4.5 X 20U 4.5 X 20 8 X 25 44% ** ** ** ** **
LR5 X 30U 5 X 30 9 X 35 46% ** ** ** ** **
LR7 X 25U 7 X 25 12 X 30 45% ** ** ** ** **

Packing & Shipping

  • Waterproof paper and free-fumigation wooden box;
  • In bulk or bundle
  • According to customers’ requirement
