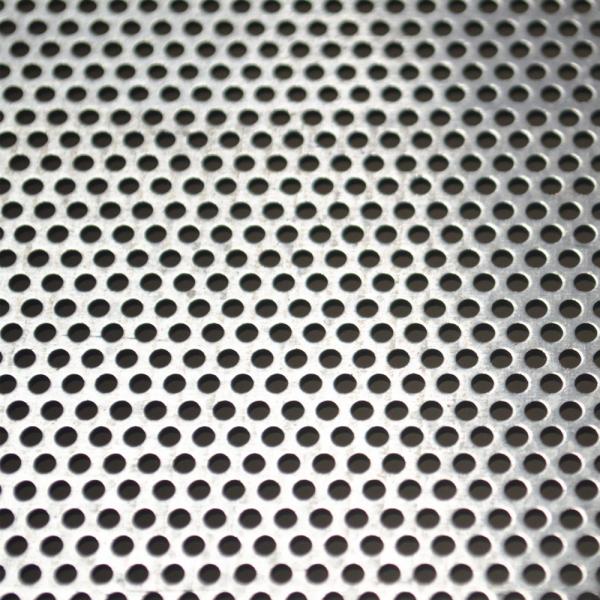

Stainless Steel / Aluminum / Galvanized Steel Perforated Metal Mesh Sheet Round Square Slot Punching Panel Perforated Sheet
Stainless Steel / Aluminum / Galvanized Steel Perforated Metal Mesh Sheet Round Square Slot Punching Panel Perforated Sheet
Stainless Steel / Aluminum / Galvanized Steel Perforated Metal Mesh Sheet Round Square Slot Punching Panel Perforated Sheet
Stainless Steel / Aluminum / Galvanized Steel Perforated Metal Mesh Sheet Round Square Slot Punching Panel Perforated Sheet
Stainless Steel / Aluminum / Galvanized Steel Perforated Metal Mesh Sheet Round Square Slot Punching Panel Perforated Sheet
Stainless Steel / Aluminum / Galvanized Steel Perforated Metal Mesh Sheet Round Square Slot Punching Panel Perforated Sheet
Stainless Steel / Aluminum / Galvanized Steel Perforated Metal Mesh Sheet Round Square Slot Punching Panel Perforated Sheet
Stainless Steel / Aluminum / Galvanized Steel Perforated Metal Mesh Sheet Round Square Slot Punching Panel Perforated Sheet
Specifications
Brand Name :
TISCO
Model Number :
201 304 304L 310S 316L 317L 321.etc
Certification :
ISO
Place of Origin :
China
MOQ :
500 kgs
Price :
2100 - 3200 USD/Ton
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10 Ton per week
Delivery Time :
5 - 12 days based on the quantity
Packaging Details :
standard packing for export
Products :
stainless steel perforated sheet
Grade :
304 201 316L 430 410S.etc
Hole Diameter :
1.0 - 20.0mm
Size :
1000*2000mm 1219*2438mm 1500*3000mm
Thickness :
0.3 - 3.0mm
Type :
cold rolled
Surface :
2B
application :
industrial
Packing :
wooden pallets
Description

Stainless Steel/Aluminum/Galvanized Steel Perforated Metal Mesh Sheet Round, Square, Slot Punching Panel Perforated Sheet

Perforated metal sheet refers to holes with different shapes on the same material to meet different needs. It can be used for environmental noise control barrier in transportation and municipal facilities such as highways, railways and subways through urban areas, as well as sound insulation and noise reduction panels for building walls, generator rooms, factories and other noise sources.

Name Perforated Metal
Material SS 304 316L 201;Aluminum;Aluminum alloy;Iron;Gavanized steel;Q235,Q195;Mn steel
Hole Diameter 0.1-30mm (0.1-0.4mm is etching hole;More than 30mm is laser cutting)
Size Normal size is 1x2m 1.22x2.44m 1.5x3m (Other size we can customize.)
Thickness 0.1-10mm
Coating PVC Coating; Powder spraying; Galvanized Coating;
Applications Industrial proccesing, Machinery, Food processing, Building & Constructions, Agriculture,Communication industries, automotive industries, hardward&household industries.
Hole shape Round perforation, Square perforation, Rectangular, Hexagonal perforation, Slots perforation
Angle degree 45°;60°;90°

Perforated Sheet Specification – Round hole
Description Hole Size (mm) Pitch (mm) Open Rate Sheet Thickness
0.4 mm 0.5 mm 0.8 mm 1 mm 1.2 mm 1.5 mm 2 mm 2.5 mm 3 mm 4 mm 5 mm 6 mm
R0.8 T2 0.8 2 0.15 * * *
R1 T2 1 2 0.23 * * * *
R1.2 T2.25 1.2 2.25 0.26 * * *
R1.2 T2.5 1.2 2.5 0.21 * * * *
R1.5 T2.75 1.5 2.75 0.27 * * * *
R1.5 T3 1.5 3 0.23 * * * *
R1.8 T3.5 1.8 3.5 0.24 * * * * *
R2 T3 2 3 0.4 * * *
R2 T3.5 2 3.5 0.3 * * * * *
R2 T4 2 4 0.23 * * * * * *
R2.5 T3.5 2.5 3.5 0.46 * * *
R2.5 T4 2.5 4 0.35 * * * * *
R2.5 T4.5 2.5 4.5 0.28 * * * * * *
R2.5 T5 2.5 5 0.23 * * * * * * *
R3 T5 3 5 0.33 * * * * * *
R3 T6 3 6 0.23 * * * * * * * *
R3.5 T5 3.5 5 0.44 * * * * *
R4 T5 4 5 0.58 * * *
R4 T6 4 6 0.4 * * * * * *
R4 T8 4 8 0.23 * * * * * * * *
R5 T7 5 7 0.46 * * * * * *
R5 T8 5 8 0.35 * * * * * * * *
R5 T10 5 10 0.23 * * * * * * * * *
R5 T25 5 25 0.04 * * * * * * * * *
R6 T8.5 6 8.5 0.45 * * * * * * *
R6 T9 6 9 0.4 * * * * * * * *
R6 T10 6 10 0.33 * * * * * * * * * *
R7 T10 7 10 0.44 * * * * * *
R8 T11 8 11 0.48 * * * * * *
R8 T12 8 12 0.4 * * * * * * * *
R8 T15 8 15 0.26 * * * * * * * * *
R10 T13 10 13 0.54 * * * * * * * *
R10 T14 10 14 0.46 * * * * * * * *
R10 T15 10 15 0.4 * * * * * * * * *
R10 T18 10 18 0.28 * * * * * * * * *
R12 T16 12 16 0.51 * * * * * * * *
R12 T17 12 17 0.45 * * * * * * * * *
R15 T20 15 20 0.51 * * * * * * * * *
R15 T21 15 21 0.46 * * * * * * * * *
R20 T25 20 25 0.58 * * * * * * * * *
R20 T27 20 27 0.5 * * * * * * * * *
R20 T28 20 28 0.46 * * * * * * * * *
R20 T30 20 30 0.4 * * * * * * * * *
R25 T34 25 34 0.49 * * * * * * * * *
Hole Patterns of Square Hole Punched Sheet
Specification Details
Hole Size 1mm x 1mm, 2mm x 2mm, 3mm x 3mm, 5mm x 5mm, 10mm x 10mm Or customized
Thickness 0.5mm, 1mm, 1.5mm, 2mm, 3mm, 4mm, 5mm, etc
Size 1m x 2m, 1.22m x 2.44m, 1.5m x 3m, customizable sizes available
Open Area 23% - 79% (depending on hole size and spacing)
Surface Treatment Powder Coating, Galvanizing, Anodizing, Polishing, etc.
Edge Margin Can be customized according to requirements
Production Tolerance +/- 0.1mm to +/- 0.5mm depending on thickness and hole size

FAQ


1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about
extra charges by the middle man or trader.

2. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.

3. How long is your delivery time?
Generally it is 15-20 days if the goods are in stock. Or it is 20-25 days if the goods are not in stock. It is according to
quantity.

4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.

5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram
