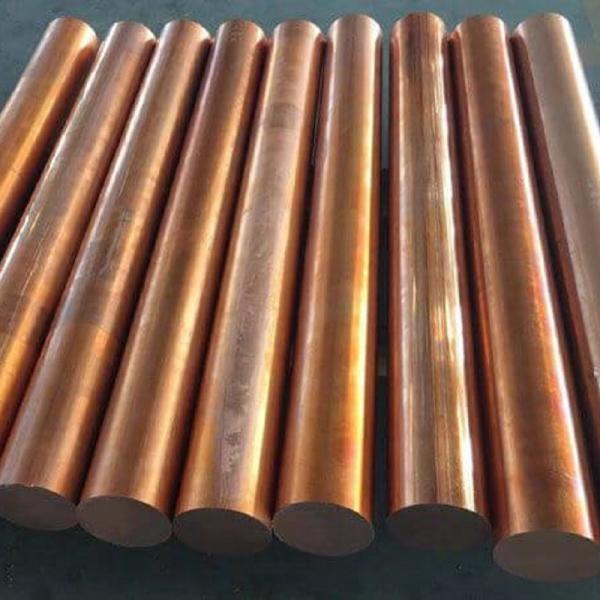

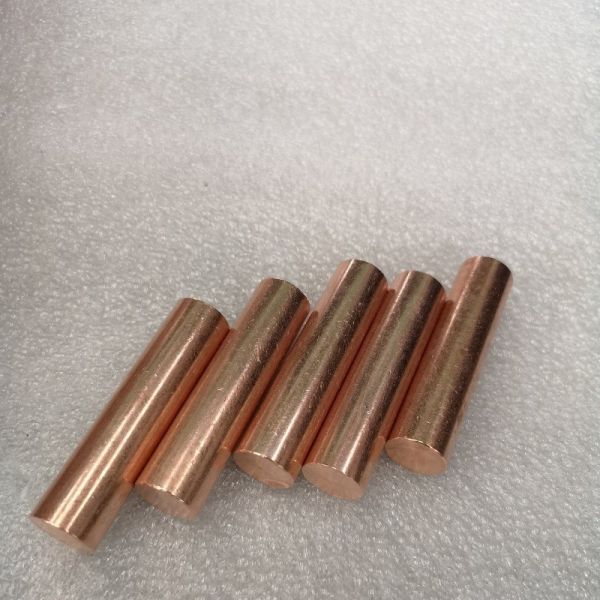

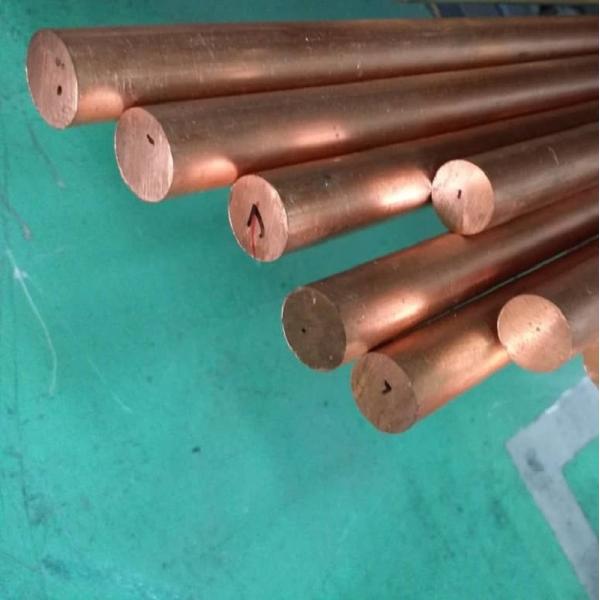

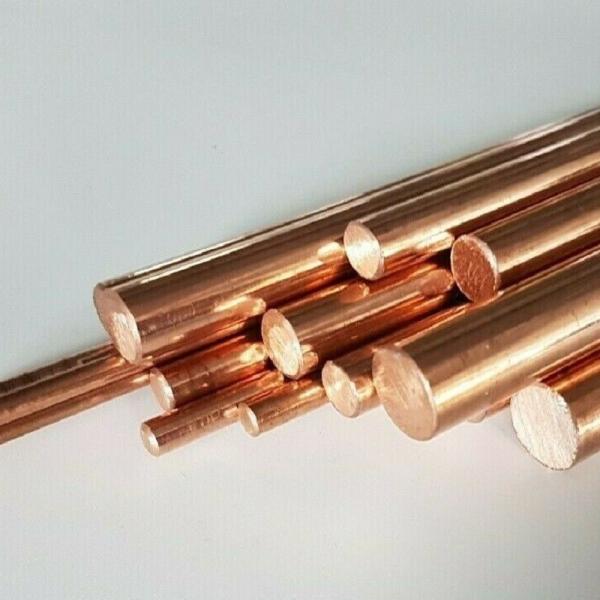

C11000 Copper Bar / T2 Copper Rod / SE-CU Pure Copper / C101 Copper Shaft
C11000 Copper Bar / T2 Copper Rod / SE-CU Pure Copper / C101 Copper Shaft
C11000 Copper Bar / T2 Copper Rod / SE-CU Pure Copper / C101 Copper Shaft
C11000 Copper Bar / T2 Copper Rod / SE-CU Pure Copper / C101 Copper Shaft
C11000 Copper Bar / T2 Copper Rod / SE-CU Pure Copper / C101 Copper Shaft
C11000 Copper Bar / T2 Copper Rod / SE-CU Pure Copper / C101 Copper Shaft
C11000 Copper Bar / T2 Copper Rod / SE-CU Pure Copper / C101 Copper Shaft
C11000 Copper Bar / T2 Copper Rod / SE-CU Pure Copper / C101 Copper Shaft
Specifications
Brand Name :
DELTA
Model Number :
C11000/C110/CU-EPT
Certification :
ISO
Place of Origin :
CHINA
MOQ :
400 kgs
Price :
7000-8000 USD/Ton
Payment Terms :
T/T
Supply Ability :
50 Tons per month
Delivery Time :
7-15 days
Packaging Details :
wooden box
Products Name :
Copper Bar
Diameter :
4 - 200mm
Length :
custom any length as request
Standard :
GB ASTM EN DIN
Loading Port :
Shanghai Port
Shape :
Round
Service :
Cutting
Company Type :
Factory
Other Material :
Brass
Packing :
wooden box
Description

C11000 Copper Bar / T2 Copper Rod / SE-CU Pure Copper / C101 Copper Shaft

Products Specification of Copper Bars

Product Name
Copper Rod
Shape
Round/Square/Rectangular/Flat, etc
Size
Regular size 600x1500mm or Customized
Grade
Pure Copper:C10100/C10200/C11000/C12000/C12200
Copper Alloy:C14500/C17200/C17300/C17510/C18150/C19200/C19210/C19400
Brass:C22000/C23000/C24000/26000/26800/27000
Lead Brass:C33000/CuZn36Pb3/C35000/C35300/C36010/C37000/37700/C38000
/C38500/CuZn39Pb3/CuZn40Pb2
Tin Brass:C44300/C44500/C46400/HSn90-1
Aluminum Brass:C68700/HAl77-2/HAl66-6-3-2/HAl64-3-1
Tin Bronze:C51000/C51100/C51900/C52100/C54400/CuSn4/CuSn5/CuSn5Pb1/CuSn6/CuSn8
Aluminum Bronze:C60800/C61300/C61900/C62300/C63000
Copper Nickel Alloy:C70400/C71500/C70600/C70620/C73500/75200/76200/C77000
Temper
H,1/2H,3/4H,1/4H,EH,SH,O60, etc.
Surface
Mill,Polished,bright or customized.
MOQ
1 ton
Delivery Time
5-10 days after the payment received
Payment Item
30% TT deposit+70% TT balance before delivery

Standard Size of C11000 Copper Bar in Stock

Standard Size 4mm 5mm 6mm 7mm 8mm 9mm 10mm 12mm 14mm 15mm 16mm 18mm 19mm 20mm 22mm 24mm 25mm 27mm 28mm 30mm 32mm 35mm 38mm 40mm 42mm 45mm 48mm 50mm 55mm 60mm 65mm 70mm 75mm 80mm 85mm 90mm 95mm 100mm 105mm 110mm 115mm 120mm 125mm 130mm 140mm 150mm 160mm 180mm 190mm 200mm 210mm 220mm 230mm 240mm 250mm

Copper C11000 is a type of copper alloy with many applications in many industries. It comprises 99.9% copper and 0.1% phosphorus, giving it superior properties such as high strength, good electrical and thermal conductivity, and excellent corrosion resistance. This blog post will discuss the composition, chemical properties, mechanical properties, physical properties, uses, corrosion resistance, heat resistance, heat treatment, machining, and welding of Copper C110.

What Forms is Copper C110 Available at Piping Mart?

Copper C110 Bolts Copper C110 Fasteners Copper C110 Bars Copper C110 Screw Copper C110 Stud Bolts Copper C110 Washers Copper C110 Nuts Copper C110 Coil

C110 Copper Composition

C110 Copper is an alloy composed of 99.9% copper and 0.1% phosphorus. This combination gives it a high level of strength compared to other copper alloys. The addition of phosphorus also improves its electrical and thermal conductivity while increasing its corrosion resistance. Cu* Pb Zn Fe P Ag As O2 Sb Te Min 99.99 Max 0.0005 0.0001 0.0010 0.0003 0.0025 0.0005 0.0005 0.0004 0.0002

C110 Copper Chemical Properties:

The chemical composition of Cu C110 makes it resistant to corrosion by most acids and alkalis and sea water. It has good oxidation resistance when exposed to air or oxygenated water at temperatures below 300°C (572°F).

Copper C110 Mechanical Properties

The mechanical properties of Copper C110 include a tensile strength of 200 MPa (29 KSI), a hardness of 45-50 HRC (HRC = Rockwell Hardness Scale), and an elongation rate of 10-20%. It also has excellent fatigue strength and ductility, which makes it suitable for parts that require repeated flexing or bending without breaking or cracking. Tensile Strength Yield Strenth1 Elongation2 Temper-Annealed 26 to 38 ksi 6 to 13 x 1000 psi 20-50
