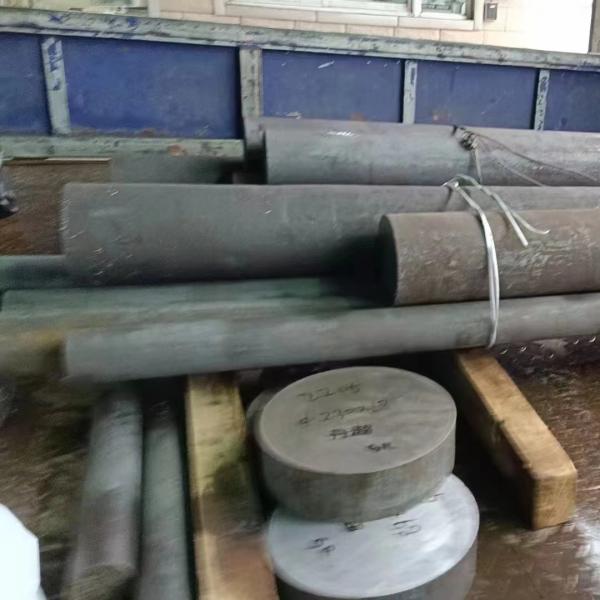

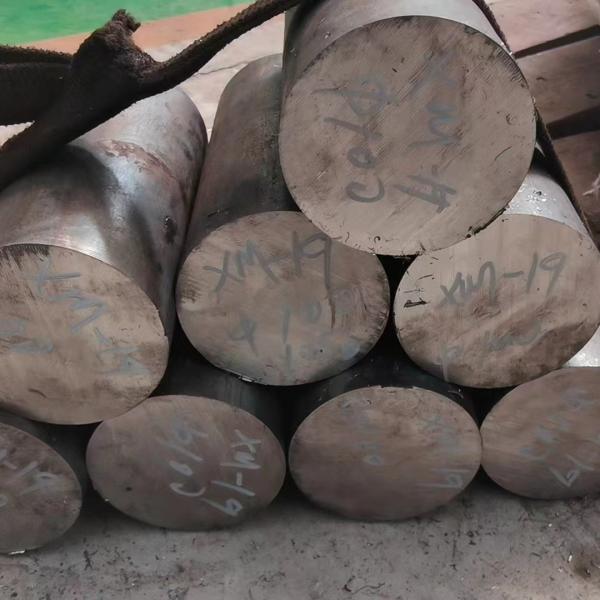

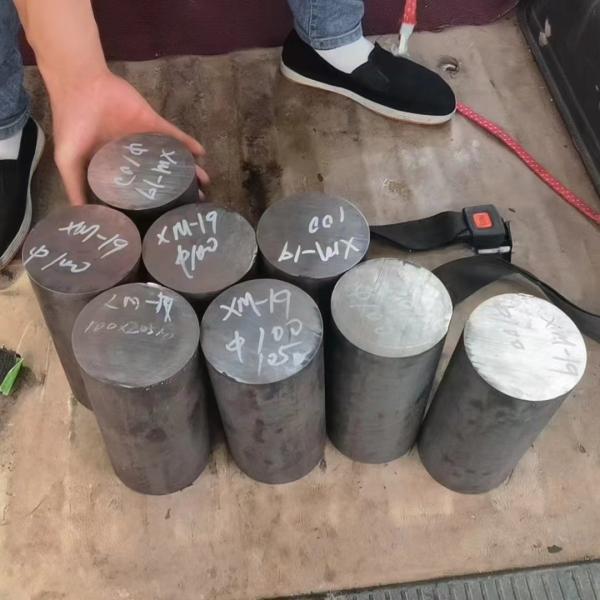

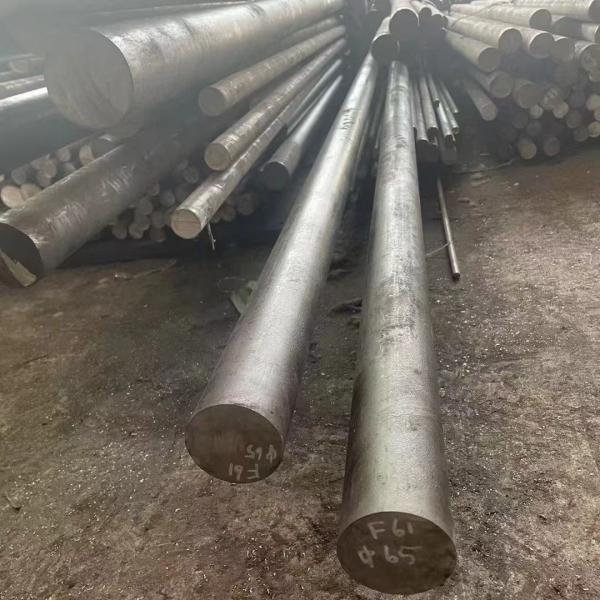

EN 1.4418 Hot Rolled Forged Alloy Round Bar Bright Bar Alloy 1.4418 Shaft
EN 1.4418 Hot Rolled Forged Alloy Round Bar Bright Bar Alloy 1.4418 Shaft
EN 1.4418 Hot Rolled Forged Alloy Round Bar Bright Bar Alloy 1.4418 Shaft
EN 1.4418 Hot Rolled Forged Alloy Round Bar Bright Bar Alloy 1.4418 Shaft
EN 1.4418 Hot Rolled Forged Alloy Round Bar Bright Bar Alloy 1.4418 Shaft
EN 1.4418 Hot Rolled Forged Alloy Round Bar Bright Bar Alloy 1.4418 Shaft
EN 1.4418 Hot Rolled Forged Alloy Round Bar Bright Bar Alloy 1.4418 Shaft
EN 1.4418 Hot Rolled Forged Alloy Round Bar Bright Bar Alloy 1.4418 Shaft
Specifications
Brand Name :
DELTA
Model Number :
1.4418
Certification :
ISO
Place of Origin :
China
MOQ :
500 kgs
Price :
40-45 USD/Kg
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3 Ton per week
Delivery Time :
5 - 12 days based on the quantity
Packaging Details :
standard packing for export
Products :
Nickel alloy bars
Grade :
1.4418
Diameter :
6 - 300mm
Length :
6000mm or custom cutting any length as request
Standard :
ASTM EN
Service :
Cutting
Loading Port :
Shanghai Port
Surface :
Black, bright
Description

EN 1.4418 Hot Rolled & Forged Alloy Round Bar Bright Bar Alloy 1.4418 Shaft

Form Nickel Alloy Bars
Grade 1.4418
Outer Diameter 6mm-300mm or according to customer’s requirement
Length custom cutting any length as request
Standard ASTM, ASME, EN, JIS, DIN, GB/T, etc
Process Method Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar & Rod
Surface Finish Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline
Other Grade

Hastelloy : B2 B3 C22 C276 G30 X
Incoloy: 800 800H 800HT 825 925 A286 330
Inconel: 600 601 617 625 718 725 X-750
Monel: 400 k-500
Price Item EXW FOB CFR CIF
Payment 30% TT inadvance, 70% TT Balance against copy of B/L
Delivery Time It depends on your bars order total quantity and stock of these mother origin materials. Usually from the start of the order to the completion of production is about 3-4 weeks
Quality Requirement Mill test certificate will be offered with shipment, the third party inspection is available
Main Markets Europe, North America, Middle East, Southeast Asia
Metal Test High or low temperature impact test, metallographic analysis
Chemical Analysis As nickel alloy 718 bars standard

About 1.4418 Alloy

1.4418 stainless steel is a high-strength, low-carbon martensitic stainless steel. Its composition consists of 80% Martensite, 10% Austenite & 10% Ferrite, allowing for a low-carbon structure after quenching & tempering.

Supplied Condition (where applicable):

  • We supply 1.4418 quenched (hardened) & tempered to QT900
  • Specifications: EN 10088-3

Chemical Composition of Alloy 1.4418

  • Carbon (Maximum)0.06
  • Phosphorus (Maximum)0.04
  • Silicon (Maximum)0.7
  • Nickel (Nominal)5
  • Manganese (Maximum)1.5
  • Sulfur (Maximum)0.03
  • Chromium (Nominal)16
  • Molybdenum (Nominal)1.2
  • Iron (Nominal)Balance
  • Nitrogen (Nominal)0.02

Properties of 1.4418 Alloy

  • Combine high tensile strength, excellent fatigue resistance & good weldability - high toughness is maintained even after welding
  • Are designed for slightly corrosive environments, better corrosion properties than most stainless martensitics
  • Poor weldability
  • Magnetic

Mechanical Properties (Specific for Bars – Condition QT900)

Dimensions (mm) Yield strength Rp0.2,
MPa		 Tensile strength Rm,
MPa		 Elongation
[%]		 Hardness
[HB]		 Impact, Charpy-V, 20ºC
[J]		 Impact, Charpy-V, -40ºC
[J]
< 160 ≥ 700 900 – 1100 ≥ 16 280 – 340 ≥ 80 ≥ 32
160-250 ≥ 700 900 – 1100 ≥ 14 280 – 340 ≥ 60 ≥ 32

Application of 1.4418 Alloy

  • Water turbine parts
  • Propeller shafts
  • Piston rods
  • Hydro power station equipment
  • Spindles
  • Bolts
  • Shear pins

EN 1.4418 Hot Rolled Forged Alloy Round Bar Bright Bar Alloy 1.4418 ShaftEN 1.4418 Hot Rolled Forged Alloy Round Bar Bright Bar Alloy 1.4418 ShaftEN 1.4418 Hot Rolled Forged Alloy Round Bar Bright Bar Alloy 1.4418 ShaftEN 1.4418 Hot Rolled Forged Alloy Round Bar Bright Bar Alloy 1.4418 Shaft
