Hastelloy® C-276 Overview

Hastelloy® C-276’s composition is responsible for its impressive corrosion and thermal resistance capabilities. The alloy consists of nickel and lesser amounts of molybdenum, chromium, iron, tungsten, and cobalt. The average chemical composition of Hastelloy® C-276 is as follows:

• Nickel: 56%
• Molybdenum: 16%
• Chromium: 15%
• Iron: 5.5%
• Tungsten: 4%
• Cobalt: 2.5%

Hastelloy® C-276’s chemical properties make it ideal for applications that will expose its products to brine, seawater, chlorine, inorganic and organic chloride-contaminated media, hot contaminated mineral acids, and formic acids, as well as acetic, acetic acids, and acetic anhydride. It also stands up exceptionally well to cupric and ferric chloride solutions, along with those of other oxidizing salts. In particular, the alloy is unique for its ability to resist chlorine dioxide solutions, wet chloride gas, and hypochlorite.

Hastelloy® C-276 Alloy Forms

Hastelloy® alloys are produced in forgings or raw material grades, depending on your needs. Our capabilities include open die, closed die, and rolled ring forms. We also offer finishing services such as rough turning, machine finishing, and aluminizing.

Our raw material forms include:

• Bar
• Wire
• Sheet
• Plate
• Forged Shapes
• Rolled Rings
• Forged Discs
• Flanges
• Tube

Our Hastelloy C276 Sheet and Plate in Stock

Cold Rolled Hastelloy C276 Sheet

• Thickness: 1.0mm ,1.2mm,1.5mm,2.0mm,2.5mm,3.0mm
• Standard Size: 1219*2438mm(4ft*8ft)

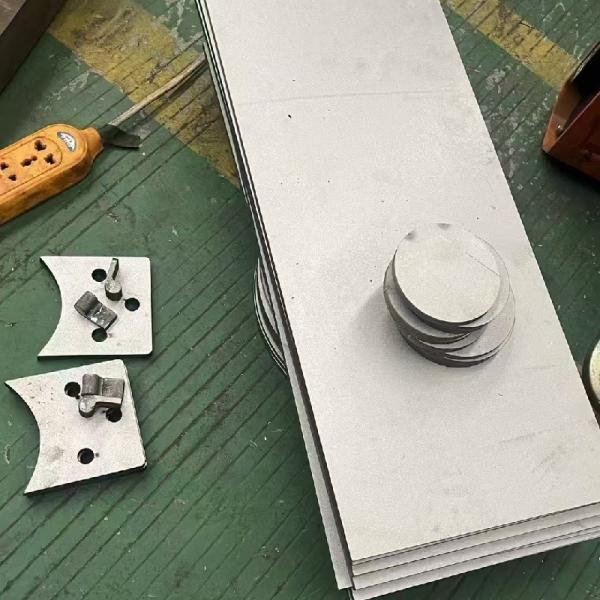

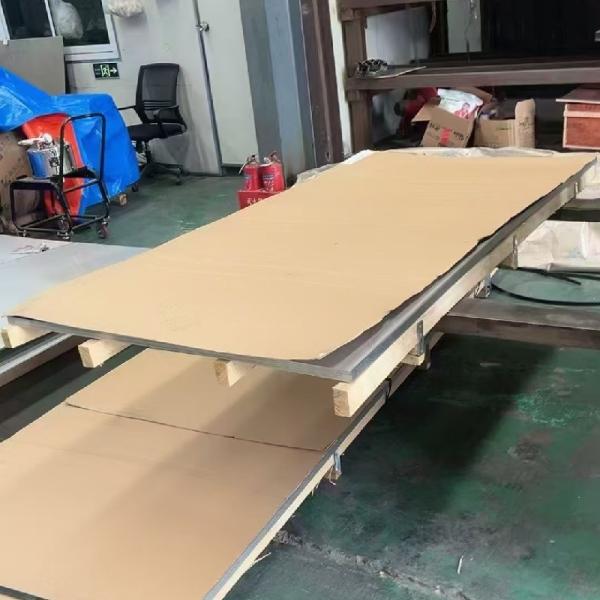

Hot Rolled Hastelloy C276 Plate

• Thickness: 4.0mm,5.0mm,6.0mm,8.0mm,10.0mm,12.0mm,14.0mm,16.0mm,20.0mm,25.0mm
• Standard Size: 1500*6000mm, custom laser cutting any size as request

Forged Hastelloy C276 Plate

• Thickness: >25.0mm custom as request
• Size: any size as request

Small MOQ Quantity at least 2KG
