AISI 201 Stainless Steel Angle Bar 200 Series 300 Series Un - Equal Construction
AISI 201 Stainless Steel Angle Bar 200 Series 300 Series Un - Equal Construction
AISI 201 Stainless Steel Angle Bar 200 Series 300 Series Un - Equal Construction
AISI 201 Stainless Steel Angle Bar 200 Series 300 Series Un - Equal Construction
AISI 201 Stainless Steel Angle Bar 200 Series 300 Series Un - Equal Construction
AISI 201 Stainless Steel Angle Bar 200 Series 300 Series Un - Equal Construction
Specifications
Brand Name :
Tisco Bao steel
Model Number :
201
Certification :
ISO,SGS,Mill Test Certificate
Place of Origin :
China
MOQ :
1000 KG
Price :
1.3USD/KG
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Tons/Month
Delivery Time :
7-15 working days
Packaging Details :
Seaworthy wooden pallet or according to client's requirement
Name :
Stainless steel angel bar
Grade :
201
Standard :
ASTM, JIS, AISI
Shape :
Equal/Unequal
Sample :
Free sample
Price term :
CIF CFR FOB Ex-Work
Packing :
Standard Seaworthy Package
Description

AISI 201 stainless steel angel bar 200 series 300 series un-equal stainless steel angel

Equal angel steel bar and unequal angle steel bar

Stainless steel angel bar:long strips of steel perpendicular to each other in the form of angles

Stainless steel equal angel bar/stainless steel unequal angel bar

Product description

Product Name

Stainless steel angel bar
Material

carbon
Price term

FOB/CIF/CFR/EXW
Standard

AISI ASTM JIS
Packing

According to the requirements
Certifactions

ISO/SGS/BV
Delivery time 5-10 days,Based on stock and order quantity
Payment term 30% deposit by T/T,70% before shipment

Application

Angle steel can be made up of various bearing members according to the different needs of the

structure,and can also be used as a joint between members.Widely used

In various construction structures and engineering structures, such as building beams, Bridges,

transmission towers, hoisting and transportation machinery, ships, industrial furnaces, reaction

towers, container racks, cable trench supports, power distribution pipes, bus support installation,

and warehouse shelves

Size

Specification

(side length * thickness)mm

 Quality(kg/m)

Specification

(side length * thickness)mm

 Quality(kg/m)
20*3 0.89 80*5 6.21
20*4 1.15 80*6 7.38
25*3 1.12 80*7 8.53
25*4 1.46 80*8 9.66
30*3 1.37 80*10 11.87
30*4 1.79 90*6 8.35
36*3 1.66 90*7 9.66
36*4 2.16 90*8 10.95
36*5 2.65 90*10 13.48
40*3 1.85 90*12 15.94
40*4 2.42 100*6 9.37
40*5 2.98 100*7 10.83
45*3 2.09 100*8 12.28
45*4 2.74 100*10 15.12
45*5 3.37 100*12 17.9
45*6 3.99 100*14 20.61
50*3 2.33 100*16 23.26
50*4 3.06 110*7 11.93
50*5 3.77 110*8 13.53
50*6 4.46 110*10 16.69
56*3 2.62 110*12 19.78
56*4 3.45 110*14 22.81
56*5 4.25 125*8 15.5
56*8 6.57 125*10 19.13
63*4 3.91 125*12 22.7
63*5 4.82 125*14 26.19
63*6 5.72 140*10 21.49
63*8 7.47 140*12 25.52
63*10 9.15 140*14 29.49
70*4 4.37 140*16 33.39
70*5 5.4 160*10 24.73
70*6 6.41 160*12 29.39
70*7 7.4 160*14 33.99
70*8 8.37 160*16 38.52
75*5 5.82 180*12 33.16
75*6 6.91 180*14 38.38
75*7 7.98 180*16 43.54
75*8 9.03 180*18 48.63
75*10 11.09 200*14 42.89
　 　 200*16 48.68
　 　 200*18 54.4
　 　 200*20 60.06
　 　 200*24 71.17

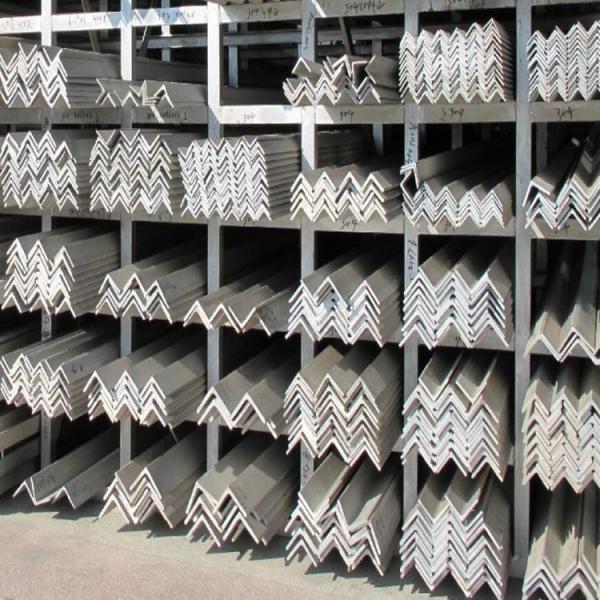

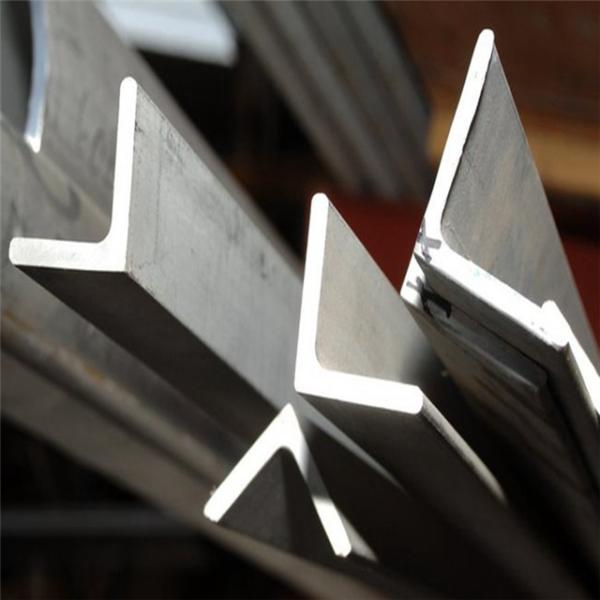

Product pictures

AISI 201 Stainless Steel Angle Bar 200 Series 300 Series Un - Equal Construction

AISI 201 Stainless Steel Angle Bar 200 Series 300 Series Un - Equal Construction

Our serives

a. Superior Quality.

All of the materials we used are 1st Class , our stainless steel product are all high-quality , equipment

and technics are very advanced.

We pay much attention to every details of the quality from production to package.

b. Competitive Prices.

We ourselves bought material for our professional subsidiary factory to apply to producing, therefore,

our cost is lower than others and the prices are much more competitive.

c. Good sale Services:

(1) 24 hours, technical support by e-mail
(2) 7 days,promise to take back unsatisfactory goods
(3) 3 month quantity assurance
(4) 1 year,more orders,more discount
