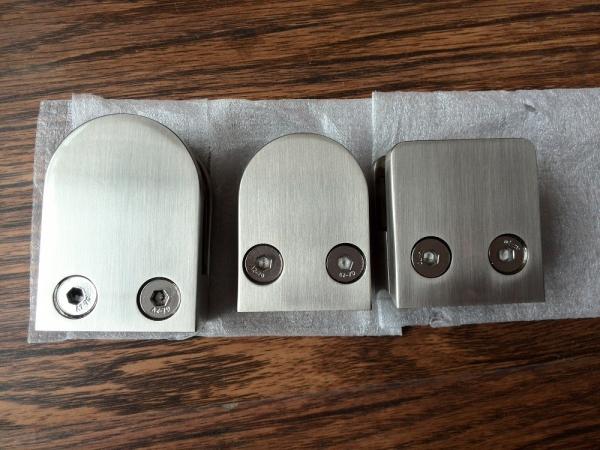

SS304 / SS316 Stainless Steel Glass Clamps Easy Installation 52 * 52 * 32mm
SS304 / SS316 Stainless Steel Glass Clamps Easy Installation 52 * 52 * 32mm
Specifications
Brand Name :
Compass
Model Number :
104.5252
Certification :
ISO 9001
Place of Origin :
Qingdao, China
MOQ :
100pcs
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
10000pcs per month
Delivery Time :
30-40days according to quantity
Packaging Details :
4pcs in a box, 10boxes in a carton.
Name :
Square Glass Clamp with 12mm Glass
Dimension :
52*52*32mm
Glass thickenss :
6mm-12.76mm
Surface :
Satin(brushed) / Mirror(polished)
Material :
SS316,S.S.304
Finish :
satin or polished
Description

Made Of SS304 Or SS316 Stainless Steel Glass Clamps Is Mainly Used For Outdoor

SS304 or SS316 stainless steel glass clamps description

Material: SS304 or SS316


Usage: indoor or outdoor

Surface: satin / brushed surface or mirror / polished surface

1, SS304 or SS316 stainless steel glass clamps are a very common part of the railing system. They are divided into flat and concave forms and can be used with round or square railings, glass mounting racks or other building panels.

2, According to your different needs, SS304 (V2A) stainless steel glass clips can be installed indoors, and SS316 (V4A) stainless steel glass clips can be used outdoors, with better anti-rust and anti-corrosion performance. And it also has a certain aesthetics. If better performance is required, SS316L stainless steel glass clamps are also available.

3, The surface of the stainless steel glass clip is treated with a satin / brushed surface or a mirror / polished surface, which can maintain the aesthetics during use.

Simple DIY installation stainless steel glass clamps Specifications.

Dimension 52*52*32mm
Glass thickness 6mm,6.76mm,8mm,8.76mm,10mm,10.76mm, 12mm, 12.76mm
Material SS304 / SS316 /SS316L /DUPLEX 2205
Surface satin(brushed 320) /mirror
MOQ 100pcs
Free samples YES
Production time 35-45days according to quantities
Packing Plastic bag/pc, 4pcs in a box, 10boxes in a carton
Payment term T/T30% as deposit, 70% payed according to documents copy.
Destination service Available
ODM & OEM YES
Delivery term FOB, CIF, CFR, DDU, DAP

Feature

1. Base could be flat for square tubes or round for 33.7mm, 38.1mm, 42.4mm, 48.3mm, 50.8mm tubes

2. Surface : brushed(satin) or polished(mirror).

3. Glass thickness: 6mm, 6.76mm, 8mm, 8.76mm, 10mm, 10.76mm, 12mm, 12.76mm

4. Easy installation and beautiful surface.

Stainless steel glass clamp application

A, Our satin stainless steel glass clamps is a universal part of the railing system. They come in two forms, flat and concave, and can be used with round or square railings, glass mounts, or other building panels.

B, When it comes to our glass solutions, one thing is clear: safety first? All glass clamps are certified to grip the glass panel with great strength. Our glass clamps have passed the successful tests of tempered glass and laminated glass.

C, The glass railing system composed of stainless steel glass clamps can be used in residential and commercial buildings, and you can display rather than hide the view.

Material

AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.00
AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00
AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

You are welcome to buy 52 * 52 * 32mm Stainless Steel Glass Clamps!
