Indoor / Outdoor Stainless Steel Railing Components , Adjustable Post Mounts
Indoor / Outdoor Stainless Steel Railing Components , Adjustable Post Mounts
Indoor / Outdoor Stainless Steel Railing Components , Adjustable Post Mounts
Indoor / Outdoor Stainless Steel Railing Components , Adjustable Post Mounts
Indoor / Outdoor Stainless Steel Railing Components , Adjustable Post Mounts
Indoor / Outdoor Stainless Steel Railing Components , Adjustable Post Mounts
Specifications
Brand Name :
Compass
Model Number :
506
Certification :
ISO 9001, SGS
Place of Origin :
Qingdao, China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
10000pcs per month
Delivery Time :
30-40days according to quantity
Packaging Details :
Bag + Box + Carton + Pallet
Product :
Adjustable Post Mounts
Type :
Adjustable tube support
Height :
78mm
Top saddle :
flat or round for 33.7, 38.1, 42.4, 48.3, 50.8mm
Post DIA. :
33.7, 38.1, 42.4, 48.3, 50.8mm
Finish :
Brushed, Polished
Description

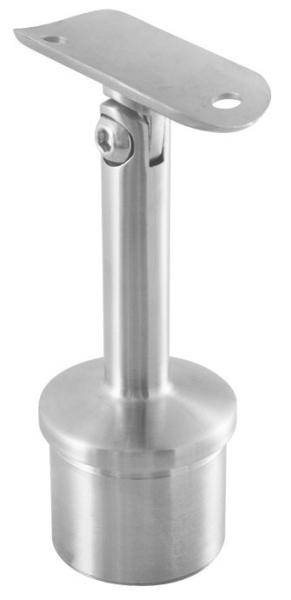

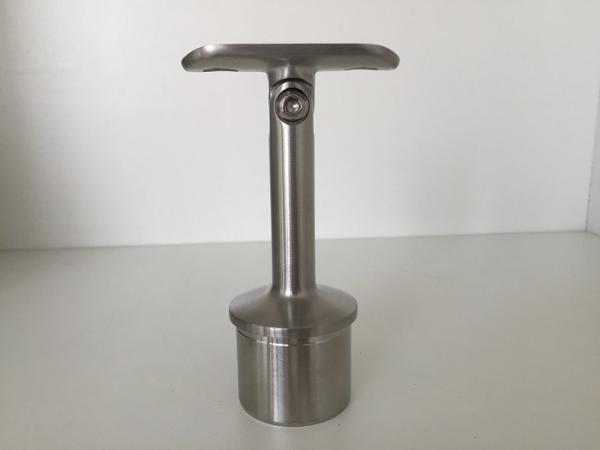

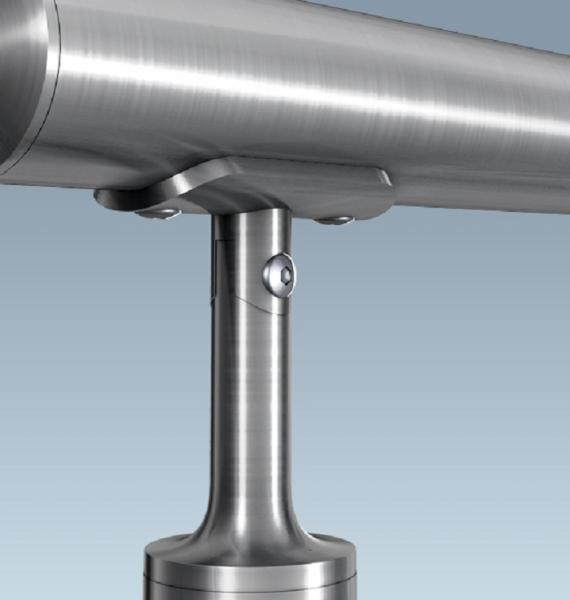

Stainless Steel and Glass Railing Systems Components, Adjustable Post Mounts

This is designed for both indoor and outdoor uses, easily accommodated either glass or rod infill. From office buildings to apartment complexes, balconies to separations, no welding required.

Indoor / Outdoor Stainless Steel Railing Components , Adjustable Post Mounts

Item Stainless Steel and Glass Railing Systems Components, Adjustable Post Mounts
Material AISI3041, AISI316
Finish Satin, Mirror
Diameter 33.7mm, 38.1mm, 42.4mm, 48.3mm, 50.8mm
Tube thickness 1.5mm, 2mm or customized
Packing Box + carton + pallet
Lead time 35-45days
Type Adjustable pipe support
Application Support handarils for glass or infill railings
Free samples Available
Delivery term FOB, CIF, CFR, DDU, DAP

Remarks.

For this series, the top saddle could coud work with tubes in the same diameter with the bottom, or they can work with different diameter pipes according to special requirements. Send us the dimensions you need, more information could be confirmed accordingly.

Advantages.

1. One-stop supplier

With professional casting production lines and machining lines, the whole series of stainless steel railing system can be supplied.

2. Standard materials is as following

AISI304: C≤ 0.08, Si≤ 1.00, Mn≤ 2.00, P≤ 0.035, S≤ 0.030, 8.00<Ni<10.00, 18.00<Cr<20.0

AISI316: C ≤0.08, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

AISI316L: C ≤0.03, Si≤1.00, Mn ≤2.00, P ≤0.035, S≤0.030, 10.00<Ni<14.00 16.00<Cr<18.00, 2.00<Mo<3.00

3. Destination service.

DDU/DAP service could also be supplied according to needs, then the goods can be delivered to your address directly.

4. Steady and fast delivery time

With strickt controlling system according ISO9001, steady delivery time can be confirmed.

Casting ones need 35-40days.

Machining ones need 20-35days.

Tubes and rubbers need 20days

5. Low MOQ.

As usual, it’s 100pcs per type. But welcome your trial order with lower quantity to check quality first.

6. OEM & ODM

With professional technical team, new designs and customnized parts are welcomed.

7. Free samples are available for checking

Available dimensions.

Item NO. Top saddle Bottom Dia Height Material
506.000 flat According to needs 78mm AISI304, AISI316
506.337 33.7mm 33.7mm 78mm AISI304, AISI316
506.381 38.1mm 38.1mm 78mm AISI304, AISI316
506.424 42.4mm 42.4mm 78mm AISI304, AISI316
506.483 48.3mm 48.3mm 78mm AISI304, AISI316
506.508 50.8mm 50.8mm 78mm AISI304, AISI316
